0460426459 VE6 Distributor Injection Pump for 0 460 426 459

A diesel engine with a distributor system keeps fuel delivery and fuel pressurisation in one place. Low-pressure fuel arrives at the distributor injection pump, an internal transfer pump raises it to injection pressure, and a rotating cam disk inside the housing drives the pumping element in turn. Each stroke closes its delivery valve, and the metered charge goes up a single delivery line to whichever cylinder the distributor sleeve is pointing at. Because the pressure is generated inside the pump and the cam disk decides both the timing and the order, the whole assembly is one mechanical unit that either pressurises every cylinder consistently or does not.

That arrangement is what a distributor injection system means in practice: one rotor, one cam disk, one shared high-pressure path, and six cylinders served in turn. The single delivery line is the part that surprises people. On a six-cylinder engine there is still only one high-pressure line leaving the pump, not six. The rotor turns inside a fixed sleeve, and six feed ports in that sleeve share one outlet, so the pump visits the cylinders one after another in the firing order the cam disk is cut for. That is why the outlet bank around the rotor housing carries the internal transfer passages rather than six separate external unions, and it is why a distributor pump for a six-cylinder engine is not physically six times the size of a four-cylinder one.

Put in plain terms, a diesel fuel injection circuit of this type keeps fuel delivery and fuel pressurisation in one place, and the naming is where most ordering mistakes start. The words fuel injection pump, diesel injection pump and VE injection pump describe a family of parts built on the same idea across very different engines, not one unit. Within the Bosch numbering system the 0 460 426 family covers six-cylinder pumps across several bore sizes and ratings, and neighbouring numbers do not substitute for one another. What makes a unit the 0460426459 pump for your machine is the combination of number, designation and engine plate — which is why this page anchors on the number and treats everything else as reference rather than promise.

The published type designation is worth reading rather than skipping. VE6/12F1100L2010 is not a catalogue ornament: the VE6 states the pump family and the cylinder count it is cut for, the 12F states the plunger diameter in millimetres, and the trailing group identifies the delivery and governing variant. A pump whose housing outline looks identical can carry a different figure in that position, and that difference is enough to change how the engine runs.

When the pump stops behaving, the engine tells you through how it runs rather than through a warning light. A hard start that clears once warm. Smoke that stays once the engine is hot and working. An idle that hunts and will not settle. Each of these is examined properly in the symptoms section below, together with the return flow measurement that finds the guilty cylinder without guesswork.

Where our supply differs is what arrives. Bosch and the equipment makers supply this part through their own channels, and a buyer who needs a dealer box does need to go there. What we supply is a distributor pump replacement — a new compatible unit for the same job, sold under the Vidishi Auto brand, carrying the same number and designation format, at a two-piece minimum with no core return. That last point matters on a diesel job: nothing has to come back, there is no exchange loop to manage, and the old pump stays with you for the parts shelf or the warranty file.

One thing we do not do is dress that up. The 0460426459 pump we ship is ours, not Bosch’s and not an equipment maker’s. The Bosch number, the type designation and cross reference 504129606 appear on this page so you can match the pump you are replacing. They are references for fitment, not a claim about who made the part. The Bosch reference pages on this site hold the cross-reference material, and the glossary explains the terminology if any of the names above are unfamiliar.

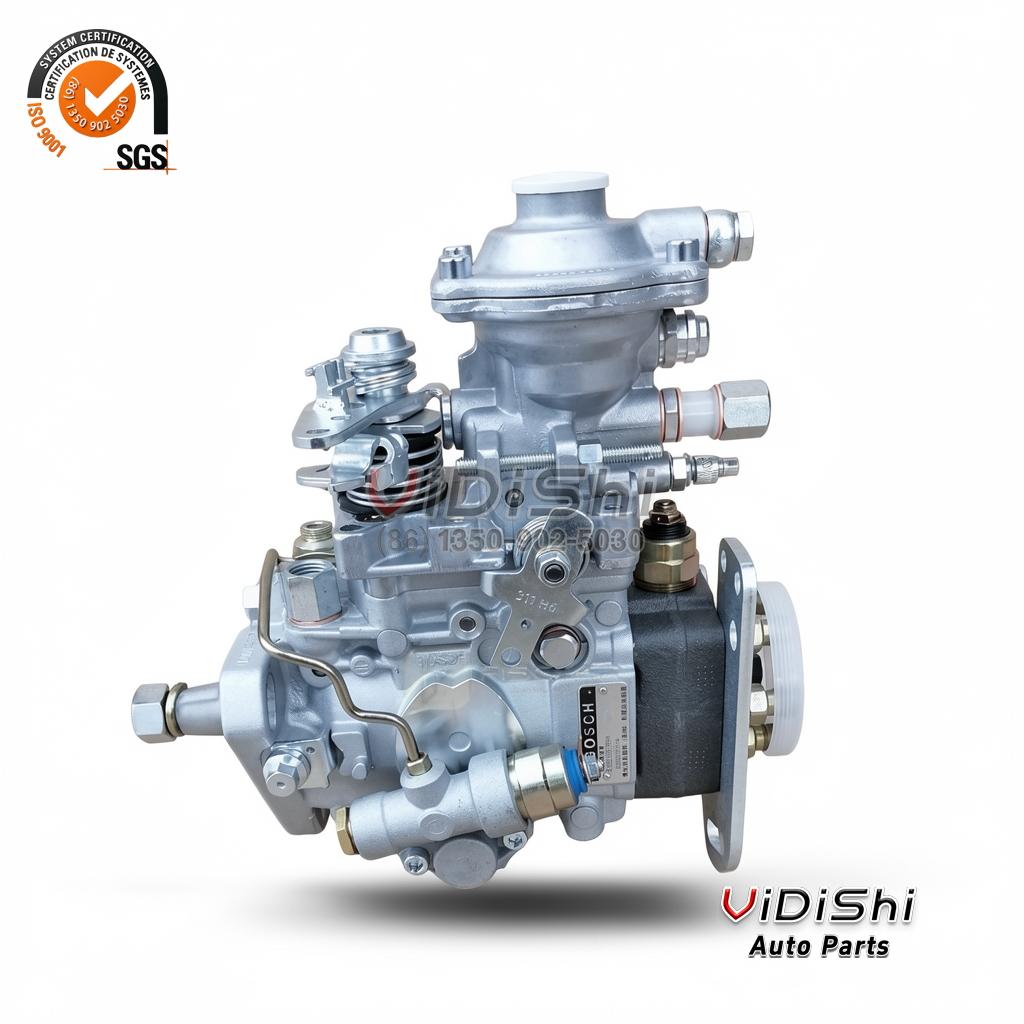

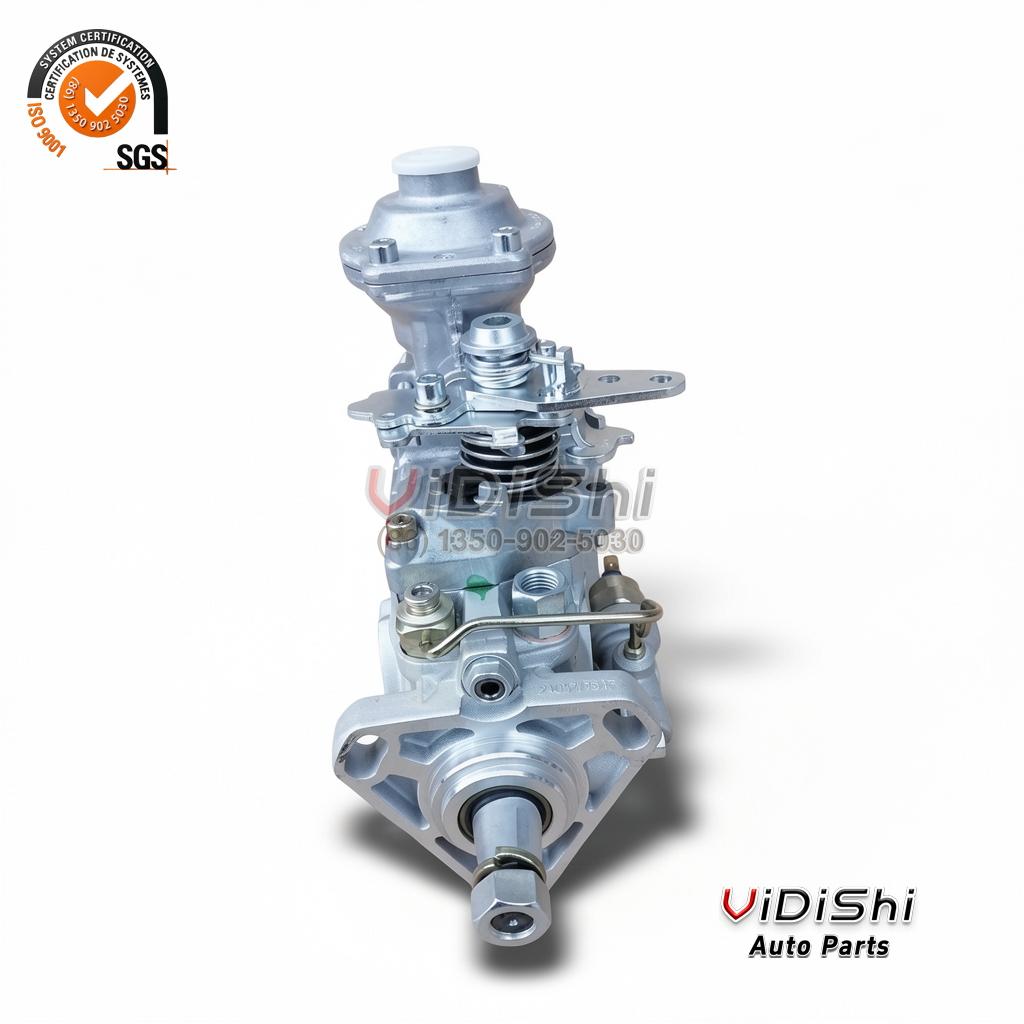

How we label data. Confirmed means a value read directly from the goods we handle, including the nameplate, the cast digits on the housing and the delivery outlet count. Reference means a Bosch number or a published type designation quoted so your paperwork can be matched, and carrying no claim about origin. Not published means the field is left blank on purpose — a delivery figure or a component number that we cannot source would be worse than an empty cell, because it would end up in someones parts order.

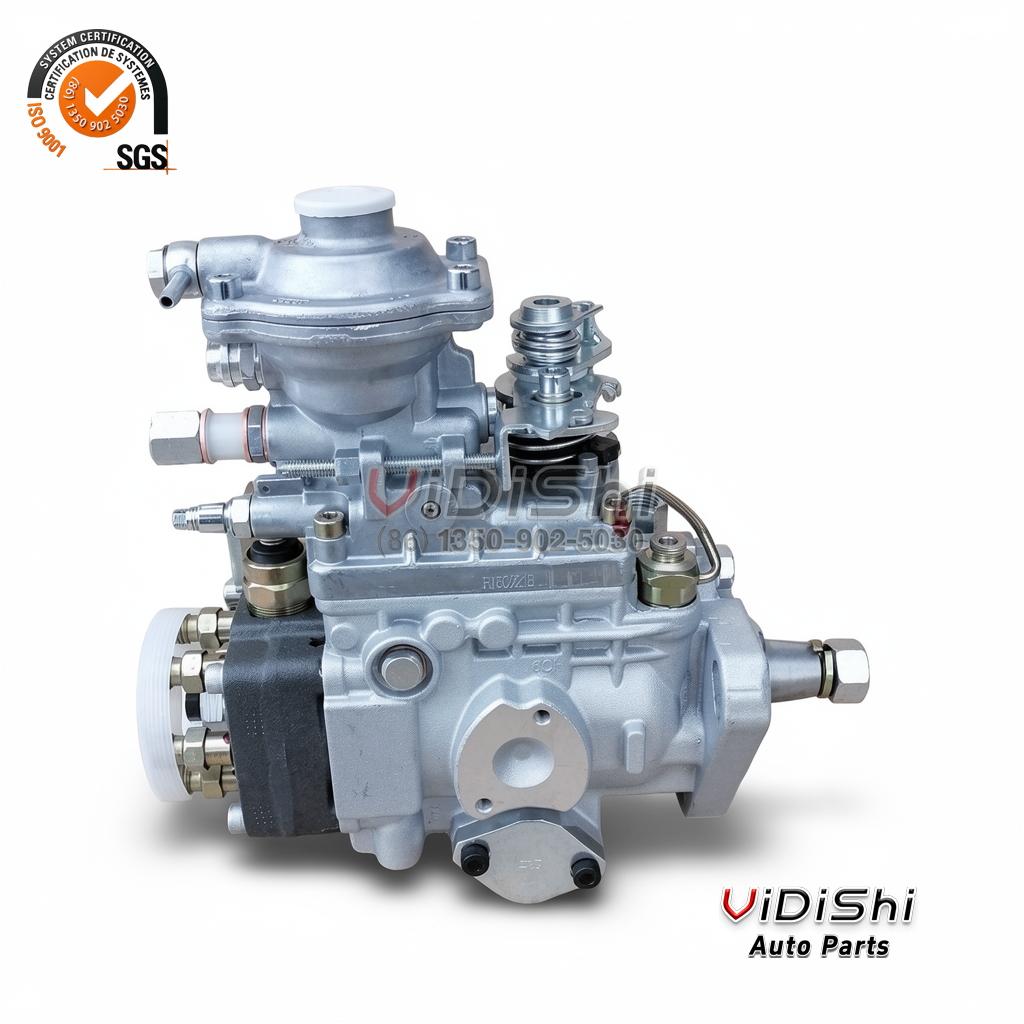

What is in the box. One complete distributor injection pump: the aluminium housing with its rotor assembly, the delivery valves behind the outlet unions, the cam disk, the mechanical aneroid governor, the plunger clamp lever and the drive flange, exactly as photographed. A fresh sealing washer goes under every refitted pump, and no separate seal kit is asserted for this line. Nothing on this page is sold loose from the pump, and the internal service components keep their own listings for buyers who want a rebuild rather than a replacement.

Read the table from the top. 0 460 426 459 is the Bosch number and it is the one that matters on the part itself: it is what the nameplate on the supplied unit carries, and it is the number the parts catalogues list first. The ungrouped form, 0460426459, is the same number written without spacing, and a parts system will match one form and not the other, which is worth knowing before a search box tells you a part does not exist. As a 0460426459 cross reference, the table is a boundary as much as a bridge.

The 504129606 row is the second half of the mapping, and it is the one to read carefully. Published cross-reference data gives 504129606 as the equipment number the trade uses on the CASE IH and IVECO side, and the parts catalogues attach it to this Bosch number. That attribution comes from catalogues rather than from a build record, so we carry it as a Reference. The point of the row is that a buyer holding the Bosch number, a buyer holding the equipment number and a buyer holding the pump itself can be told, in one line, that they are asking for the same unit.

What the table deliberately does not do is extend itself. It does not say that a neighbouring Bosch number fits, that a component number for the cam disk or the governor is settled, or that a pump from another engine family substitutes. Those are exactly the assumptions that turn a cheap order into an expensive week of machine downtime, and we would rather leave the cell empty than fill it with a guess. It is worth saying plainly that two other numbers surface next to this one in reseller listings; they belong to a different pump in the same 426 family, so we have not printed them here. If you are holding a number that is not on this list, send it to us with the engine plate and we will tell you what it is and whether it is this pump.

The practical difference shows up on the return flow bench. When one cylinders return volume is climbing, the machine either runs on a compromised cylinder until something else breaks, or the workshop fits a known-good pump and the fault disappears. Keeping a matched spare — correct number, correct outlet count, correct designation — turns a two-week machine stop into a same-week swap. That is the case for holding these two pieces even before anything has failed, and it is why the minimum order is set where a single repair, not a warehouse, is the unit of purchase.

• Hard starting, worse when warmA pump whose delivery valves no longer seal will let pressure bleed back, and the engine has to crank longer before it catches. On a six-cylinder engine the crank is long enough already, so a slow hot start is a symptom worth taking seriously rather than writing off as a cold morning.
• Black or grey smoke under loadFuel that is not atomised properly leaves the stack as smoke. On a distributor pump this usually points at a worn pumping element or a delivery valve that is not seating, and on this engine the smoke often appears as a sudden increase when the operator takes a full load rather than at idle.
• An idle that hunts or will not settleAt idle each cylinder counts in turn and the cam disk meters all six. A pump worn enough to deliver unevenly shows up as an idle that will not hold, often with a shake that no mounting fault explains and that gets blamed on the engine mounts.
• Loss of power when the engine is workedWhen the operator demands fuel, a pump that cannot hold its internal pressure cannot deliver the full charge, and the machine feels flat exactly when it is asked for more. On a tractor this reads as a loss of pull in the field rather than a loss of speed on the road.
• Rising fuel consumptionFuel that returns past a worn delivery valve is pumped again and again, so the gauge moves faster than the work done and the tank empties sooner than the hour meter suggests. Comparing the machine against its own consumption over a season is often the first sign that gets noticed.
• A return flow volume that stands outThe measurement that settles it. Comparing return volumes line by line while the engine idles shows the cylinder whose internal sealing has gone, before any part is ordered. On a six-cylinder engine there are more lines to compare, which is an advantage: a single outlier against five steady readings is a much clearer signal than one against three.
• A rough engine that no filter work curesFilters and injectors are the usual suspects on a diesel, so a pump fault is often diagnosed late. If the fault returns after a filter change and an injector swap, measure the return flow before ordering anything else.

Read the list as symptoms rather than a diagnosis, because every item on it has at least one other possible cause. A tired lift pump or a blocked filter produces the same hard starting. A boost leak produces smoke and flat response with the injection pump entirely out of the picture. What separates them is measurement: return volumes compared line by line while the engine idles, then a look at the fuel supply and the transfer pump side. A cylinder returning clearly more than its neighbours points at the pumping element inside the pump; a low reading across all six together points at the supply or the transfer pump instead. Those two causes cost very different amounts, which is why the measurement is worth doing before a part is ordered.

Two more practical notes. If the machine has recently had fuel system work, look there first: a delivery union left slightly proud, an air lock in the line, or a drive flange fitted a tooth out of position will produce exactly the symptoms above, and none of them need a new pump. And treat one bad pump as a question about the others: they are the same age and they have drunk the same fuel, so a fleet that replaces one usually budgets for the rest. A distributor pump found early is a cheap part; the same pump found late, after unburned fuel has washed the cylinder walls, is an engine discussion.

1. 1. Release the pressure and mark the flangeLet the engine stand, release residual pressure, and before anything is unbolted mark the position of the drive flange against the pump housing. A distributor pump must go back on the same timing position, and the mark is the only thing that guarantees it. On a cold-advance unit like this one that mark matters twice over, because the advance is worked out from where the rotor sits when the flange is bolted home.
2. 2. Clean the mounting face before it is openedWash around the pump, blow the sealing face down, and only then release the bolts. Grit that falls onto the sealing face ends up between the faces, and the new pump will weep from its first minute.
3. 3. Unbolt evenly and support the housingWork the bolts in sequence rather than freeing one corner at a time. The distributor pump is a heavy casting and the mounting face has to lift straight off the engine, not at an angle.
4. 4. Inspect the drive flange and the couplingCheck the flange face, the slot and the coupling for wear and burrs. A flange that has been turning against a worn coupling will damage the new pump in the first hour of running, and on a machine that spends its life under load that hour comes quickly.
5. 5. Note the governor position before removalThe mechanical governor and its aneroid capsule set the idle and the off-idle behaviour, and the linkage position is easy to disturb and hard to reproduce. Photograph the linkage and note the spring setting on the old unit so the replacement can be matched rather than guessed at.
6. 6. Fit fresh sealing washersA fresh washer goes under every refitted pump, and the delivery line seals are renewed rather than reused. Reused seals are the most common cause of a weep after an otherwise correct pump replacement.
7. 7. Refit square and torque to the engine figureDrop the pump into the marked position, bring the mount up evenly, and torque to the figure for your engine. The figure belongs to the machine, not to the part, and the clamp load is what holds the rotor where the mark says it belongs.
8. 8. Refill, bleed and prime the system properlyA distributor pump will not lift immediately on a dry system. Fill and bleed according to the procedure for your engine, and run the transfer pump to prime before the first start rather than cranking a dry pump against its own seals.
9. 9. Verify with return flow and a running checkStart the engine, check for leaks at the unions and the mount, then measure each delivery line in turn, line by line. Where a doubt remains, a running check in the yard or on the road confirms the machine is back on its feet, and the idle is checked warm rather than cold because that is where an aneroid-governed pump shows whether it is set right.

Every 0460426459 pump is covered by a 12-month warranty against manufacturing defects. That covers a unit that arrives out of specification or fails early because of how it was made. It does not cover damage from contaminated fuel, from water in the system, from incorrect fitting, from a drive flange torqued beyond its figure, or from a separate fault elsewhere in the fuel circuit. It is a supplier warranty from Vidishi Auto and it is not a Bosch warranty — we are not a dealer for any of the equipment makers and no cover from any of them travels with this part.

The cover sits at unit level. It applies to the pump as supplied, and it does not extend to the engine, to the machine, to labour, or to another component damaged when a faulty unit was run on. That boundary is normal for a fuel system part, and it is worth stating before the order rather than after a problem.

Two questions buyers ask. The 0460426459 warranty starts from delivery rather than from fitting, so a pump held on the shelf as a diagnostic spare is still covered for the stated term from the date it reached you. And because there is no core return with our supply, the warranty is not tied to an exchange claim: the old pump stays yours, and what you do with it has no effect on the cover on the new one.

The minimum order quantity is 2 pieces, which is deliberate. Two pieces cover a single machine repair with a spare for the shelf, and they let a workshop keep a known-good pump for the return flow bench before it commits to anything bigger. From there the line scales normally — a fleet running several engines will take a set per machine, and a distributor will take them alongside the rest of a fuel system order on one set of export documents.

We act as a diesel injection supplier for export and we build this line ourselves as the manufacturer behind the Vidishi Auto brand. Pump pricing is quoted per order rather than published as a fixed figure, because pricing moves with quantity and with what else is on the same shipment, which is how fuel injection pump wholesale normally works. Mixed orders are routine on our side: put these pumps alongside filters, lines or other engine lines and they travel on the same paperwork.

For trade buyers, two practical points about a pump line. First, because there is no core return and no core charge, procurement does not carry a returns loop on top of the order itself — the part of buying fuel system parts that usually costs the most administration simply disappears. Second, batch consistency matters to resale: our batches ship from one production run with uniform nameplates, so your stock photographs and your counter claims stay honest. If you need the number matched against a machine list before you commit, send the list with the engine plates and we will work through it with you rather than asking you to take the fitment on trust. Buyers comparing an aftermarket injection pump line against a dealer box are welcome to ask for the batch photographs before ordering, and agricultural machinery parts distributors can ask for mixed-batch consolidation across several engine lines on the same shipment.

Batch photographs are part of the offer rather than a favour. What leaves our floor is one production run with uniform nameplates, and the picture below shows the unit as it is counted before packing — the same number, the same plate format, the same finish on every pump in the batch. A distributor who sells against a photograph can only do that honestly if the stock really does look like the photograph.

Distributors serving plant fleets will also find this line sits cleanly beside the wider fuel system range on this site, and the commercial mechanics of an ongoing account — price reviews, mixed containers, document handling — are described on the partner page. A parts distributor holding this number against an enquiry can quote from this page without waiting for us, and every unit that ships carries the same nameplate shown in the photographs above.

The dimensions above are a packing estimate for a single boxed pump, and we label them that way deliberately. No source we can stand behind publishes a packaged size or a gross weight for this number, so we give you a figure we can pack and weigh against rather than a manufacturer specification we cannot evidence. For the same reason we do not list an unpackaged pump size or an unpackaged pump weight. Lead time is quoted per order and depends on quantity and on what else is on the same shipment. For export shipping of fuel system parts, every order leaves with its paperwork in place — commercial invoice, packing list and HS code. Read our shipping information for freight options, and track your order once it ships.

A trade order is packed the way the photograph shows it: the drive flange, the shaft nut and the delivery outlet bank are the three areas that decide whether a pump survives the journey, so all three are protected before the carton closes. A damaged flange is the one packaging failure that costs a second removal job rather than a box, because the pump will not seal against a face that has been knocked out of true. If your receiving process needs a different pack — labelled per machine, split per engine or boxed for retail — say so at quote stage and we pack to it.

A distributor pump is a small number of large, precisely machined parts, so this line is checked at unit level rather than by sample. Every batch passes an incoming check for the nameplate and the cast digits on the housing, an inspection of the drive flange and the delivery outlet bank, a confirm that the sealing faces are clean and undamaged, a check that the rotor turns freely and the governor moves, and a packed-weight confirmation against the documented figure. The supplier shows an ISO 9001 system certification on the product photography, which is recorded here as a supplier statement rather than as a certificate we issue. Rather than publish reviews we cannot verify, we tell you how the part is inspected and let your own return flow bench be the judge.

Support is not an add-on on this line — it is how most of these orders get placed correctly. It costs nothing before you buy: send the number read off the pump you are removing, the machine details and a photograph of the engine code plate, and we check the whole set against what we supply before quoting. That last item is the one people skip, and it is the one that matters most here, because the 426 family runs several pump numbers across years and ratings. Support continues after delivery: fitting questions, governor setting questions and warranty claims all reach the same team, and the person who confirmed your fitment is the person who answers if something is not right.

Supplier note. WholesaleAutoPartsDirect is an independent supplier of compatible automotive parts and is not affiliated with, endorsed by or acting as an agent of Bosch or of any equipment manufacturer. Brand names and part numbers are used for reference and fitment only.
