1465130991 VE Injection Pump Housing for Bosch 1 465 130

The application we can stand behind is narrower than it is on a page about a complete pump, and we would rather say so than fill the gap. The published cross reference for 1465130991 gives the grouped Bosch number 1 465 130 991 and the OE number 79074027 attributed to Iveco. No source we can stand behind binds either number to a distributor pump number, a bore class, a cylinder count or a model year. That is why this page has no engine list and no year range: a list we cannot evidence is worse than an honest gap, because a buyer who trusts it orders internals sized for the wrong pump.

Two identifiers worth having. If the pump is still on the engine, the VIN on the registration document settles the vehicle faster than any chart. If the pump is already off, a photograph of the number on the housing or its tag, plus a photograph of the four features above, settles it instead. Either one alongside the number is enough for us to confirm in writing; both together are what stops a wrong-shell order reaching your bench.

Why the features matter more than the number block here. The Bosch number block this housing sits in is catalogued across many pumps and many vehicles, and the cross reference sources that cover the block do not list this number in their housing tables. So the block tells you the family and the features tell you the part. A casting with the right number and the wrong chamber form is a different housing, and a housing with no readable number at all is a casting you should send to us before ordering against it.

This is not a complete injection pump. We are not saying that a neighbouring number in the same block fits your pump, that a pump number exists for this housing, that a bore class or a plunger diameter class applies, that internal parts from another housing will fit it, or that a housing alone is a working pump. 1465130991 describes one casting within a wide block, and the four visible features are what identify it. Anything beyond those lines is better answered from your own parts data and a photograph, and we would rather answer it with you than assert it here.

A VE distributor pump is a single-plunger rotary pump, and the whole design turns on one idea: the same plunger both generates pressure and meters fuel, while turning to hand each cylinder its share in firing order. A rotor sits in a chamber in the housing, a flat cam plate beside it carries one lobe per cylinder, and that plate drives the roller cage round so the rotor rises against its spring once per lobe. Because the rotor turns as it pumps, one pump can feed four, five or six cylinders from one compression event per revolution, which is why the architecture is compact, quiet and cheap to manufacture. Every part of that happens inside a body. The VE injection pump housing is that body: the casting that locates the rotor chamber, the cam chamber, the drive, the ports and the mounting face, and that carries the governor, the feed pump and the stop solenoid on its outside.

That is why a housing is such a specific purchase rather than a generic casting. Its rotor chamber has to match the rotor and its roller cage in diameter and in depth. Its cam chamber has to match the cam plate in diameter and in the length of the bearing surface. Its drive bore has to match the shaft, and its mounting flange has to match the bracket, including the slotted holes that let the pump be indexed before it is clamped. Get any of those wrong and the pump either will not assemble or will not meter correctly once it does. This is also why a housing is worth inspecting rather than just ordering: a scored chamber wall or a worn cam chamber floor cannot be corrected by fitting new internals to it.

The argument about this number comes from the catalogues rather than from the casting. Two independent sources title 1 465 130 991 as a fuel metering valve on the low-pressure side of a high-pressure pump, which describes something with a coil, a valve core and an electrical connector. Two other sources publish the same number block as a VE pump housing. Both descriptions carry a Bosch number, and both are internally consistent, so this is not a case of one site being careless. The photograph settles it: the unit supplied is an aluminium casting with an open cylindrical chamber, a machined circular recess, two slotted mounting holes and a seated bronze ring. There is no coil and no valve core anywhere in it, and a metering valve does not have a rotor chamber. We describe what we ship, and we would rather you send us the number and a photograph than take our word against a heading.

Two things follow from the housing being the subject of this page rather than the pump. First, the buying decision is different: you are not choosing between complete units, you are choosing a casting to rebuild into a pump, so the questions that matter are whether the chambers are clean and unwearred, whether the flange faces are true, whether the drive bore is undamaged and whether you already have the internals. Second, the failure picture is different, and the symptoms section below looks at it in those terms rather than at the running behaviour of a whole pump.

Where our supply differs is what arrives rather than how the casting works. Original equipment supply comes through the manufacturer’s own channels, and a buyer whose paperwork requires a factory boxed part does need to go there. What we supply is a pump housing replacement — a new compatible casting for the same job, sold under the Vidishi Auto brand, carrying the same number, at a single-piece minimum with no core return. We photograph the casting we ship rather than describing it, because on a component like this the photographs are the specification.

One thing we do not do is dress that up. The 1465130991 housing we ship is ours, not a manufacturer’s and not a vehicle maker’s. The part numbers and the number block appear on this page so you can match the casting you are replacing. They are references for fitment, not a claim about who made the part, and the badge and lettering visible in the photography are recorded as features of the images rather than as markings on the casting. The buying guides hold the general method for confirming any diesel part from the unit itself, and the glossary explains the terminology if any of the names above are unfamiliar.

How we label data. Confirmed means a value read directly from the goods we handle, including the chamber forms, the flange layout and the seated seal ring visible in the photography. Reference means a part number, a number block or a cross reference quoted so your paperwork can be matched, and carrying no claim about origin. Not published means the field is left blank on purpose — a pump number or a diameter class that we cannot source would be worse than an empty cell, because it would end up in somebody’s parts order as though it had been verified.

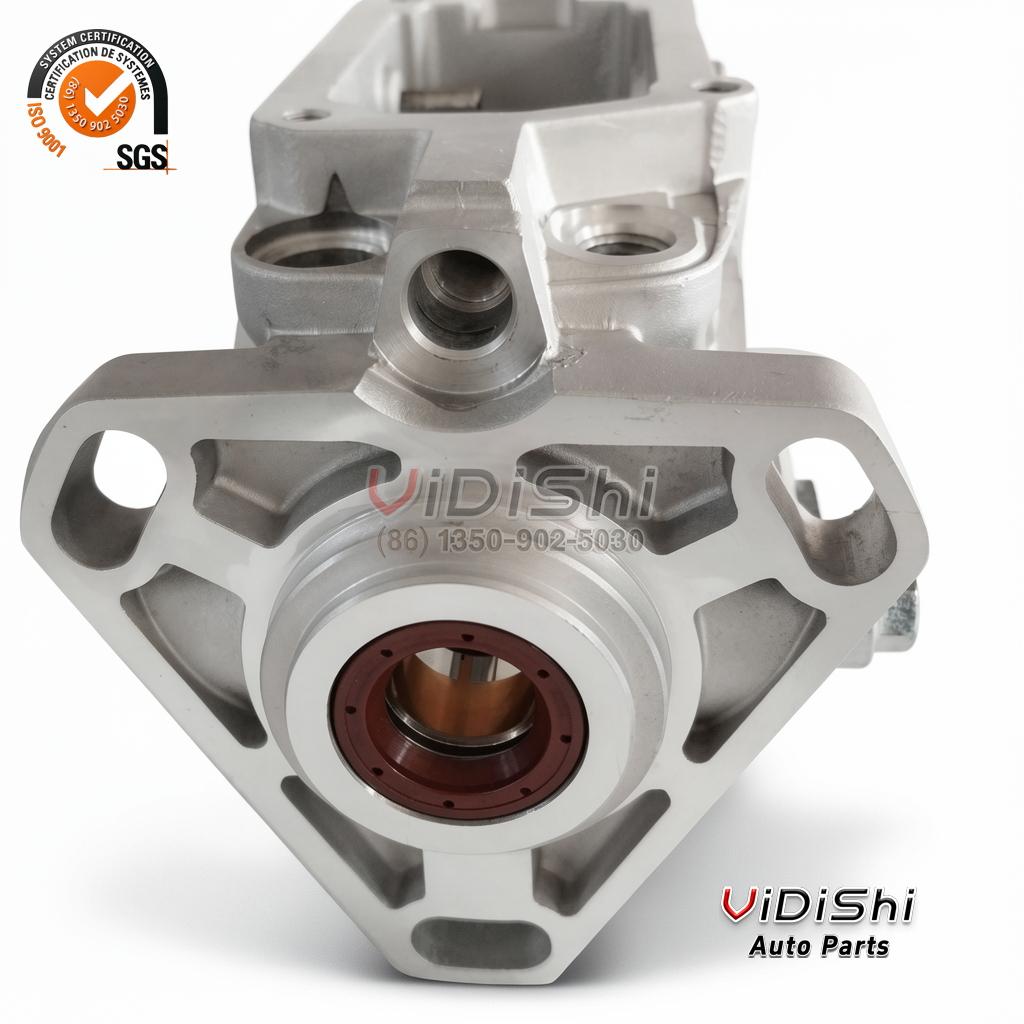

What is in the box. One cast aluminium VE injection pump housing, supplied empty, with a bronze-coloured seal ring seated against a shoulder in the central drive bore. That is the whole contents. Not supplied, and not sold as part of this number: the rotor with its rollers and roller cage, the cam plate, the pumping elements with sleeves and return springs, the delivery valves and their sockets, the governor with its flyweights, the stop solenoid, the secondary feed pump and its cover, the throttle shaft and lever, the hydraulic advance device, the mounting gasket and the sealing washers, and the drive shaft and coupling. New sealing material is required whenever a housing is opened or refitted and none of it is asserted as included. A housing on its own does not pump fuel, so if you need a working pump, plan the internal parts at the same time or buy a complete assembly instead — and the same caution applies to the competing catalogue title for this number, which describes a metering valve: there is no valve, no coil and no valve core in this casting.

Read the table from the top, because the order matters. 1465130991 is the supplier part number and it is the weakest identifier on the page: it is the number a listing carries, and it says nothing about which casting you have been sent. The row that identifies the unit in the trade is 1 465 130 991, the grouped Bosch number for the same digits, and that is the form a parts catalogue will match. Used as a 1465130991 cross reference map, the table is a boundary as much as a bridge. A parts system will match one form of a number and not the other, which is worth knowing before a search box tells you a part does not exist.

The Bosch 1 465 130xxx row is there for identification the way a family name is on any catalogue entry. It tells you which published number block the casting belongs to, which narrows the search and tells a parts clerk what sort of housing to look for on the shelf. It is not a statement that the casting in our box was made by that manufacturer, because it was not, and the difference matters both legally and practically when a warranty claim has to be settled. Our brand page sets out how we handle reference brands across the site and what that does and does not claim.

The 79074027 row is a published OE cross reference attributed to Iveco, and it is useful for paperwork rather than for fitment. It tells you that the number resolves to the same part in another manufacturer’s catalogue, which is often what an importing agent needs to see. It does not tell you the vehicle, the engine code or the year, because no source we can stand behind attaches those to this number, and we will not read them into the row ourselves.

The Fuel metering valve row is the one that makes this table unusual, and we have left it visible rather than quietly dropping it. It records a competing catalogue title for this exact number. The goods we ship are an empty casting with an open rotor chamber and a machined cam chamber, whereas a metering valve has a coil, a valve core and no such chamber at all, so the two descriptions are not the same object. We keep the row so that a buyer who has been quoted the other description can see that we are aware of it, and so that nobody discovers the disagreement for the first time after an order. The last row is the one we would ask you to read twice: the pump number, the diameter class, the cylinder count and the vehicle application are not published for this number, and no cell on this page fills them in.

The practical difference shows up on the bench. A complete second-hand pump of unknown history brings its own wear with it: you inherit whatever the rotor, the cam plate and the elements have already done, and you inherit the history that nobody can document. A pump housing replacement gives you a known chamber, a known flange face and a known drive bore, and puts the wear items back under your own control as new parts. That is the case for ordering the shell before something has failed, and it is why the photographs on this page are detailed enough to judge the casting rather than merely to recognise the shape.

• Fuel leaking from the housing seams — A crack or a casting porosity in an aluminium body shows up as fuel weeping from the casting rather than from a joint, because there is no gasket at a crack. It is often first noticed as a film of clean diesel on the underside of the pump rather than as a visible split.
• A housing that has scored in the rotor chamber — A chamber wall scored by swarf or by a rotor run dry ends up with wear that no new rotor can be made to tolerate. It is why the chamber is inspected rather than cleaned, and why a scored housing is a housing to replace rather than to reuse.
• High-pressure fuel leaking past the drive seal — The bore at the drive end is where the rotating shaft passes through the body, and it is the highest-pressure seal on the casing. Weeping there grows with pressure and with temperature, which is why it is often blamed on the injector lines rather than on the housing.
• A flange face that has gone out of true — A casting distorted by a crash, an over-torqued bolt or a previous rebuild will not sit square against the bracket, and it will weep from the first run no matter what gasket is used. The four corner bolt holes also wear oval, which shows up as a housing that rocks when the bolts are loose.
• Seizure damage from metal in the fuel — Metal in the fuel does the most damage to internal components and returns as a damaged rotor, a marked cam chamber and a ruined chamber wall. Fitting a new housing into a system that was never flushed repeats the failure on the first run of the new internals.
• Timing that will not hold after a rebuild — When a rebuilt pump will not hold its timing, suspect the assembly rather than the housing: a cam plate that does not match the rotor, a roller cage assembled dry, or a rotor fitted at the wrong index angle. The housing is the part least able to cause it.
• Fuel in the air that the governor cannot control — A worn governor on the housing produces an engine that hunts at idle and will not hold speed, because the sliding sleeve no longer modulates the fuel. The housing itself is fine; the fitment on it is not.
• A feed side that will not prime — A transfer or feed pump that does not draw or a blocked port in the housing shows up as a pump that will not prime and a chamber that stays wet rather than full. Checking the ports on the casting is part of the inspection, not an afterthought.

The pattern worth holding on to is the one that survives new internals. Fit a new rotor, a new cam plate and new elements into a housing whose chamber wall is scored, and the fault returns within a fraction of the running hours, because the damage is in the casting rather than in the parts. That is the single most expensive mistake on this type of job, and it is the reason this page spends a section on inspection. Filter work and injector work will not change any of it, and neither will changing the internals twice. The fault code guide explains how to read the data behind a code, and our maintenance guide covers the filter and water separator intervals that keep the whole circuit healthy.

• Step 1. Photograph and mark the old assembly before anything comes off
  Record the number on the housing or its tag, photograph the four features, and mark the position of the drive coupling against the housing before a single bolt is released. A distributor pump has to go back on the same index angle, and the mark is the only thing that guarantees it.
• Step 2. Decide what the housing is for before you order
  A replacement shell for a rebuild and a unpainted casting to inspect are two different purchases. If the old chamber walls are scored, the cam chamber floor is worn or the casting is cracked, a housing swap is the answer and a rebuild on the old body is not. Look at it on the bench first.
• Step 3. Flush the system if the old unit failed internally
  If metal is present in the fuel, fitting a new housing and new internal parts into an unflushed system destroys them just as fast. Drain the tank, the lines and the chambers, fit new filters, and only then start the rebuild. This step is the single biggest cause of a second failure.
• Step 4. Clean the chambers and the flange faces without scoring them
  Wash the rotor chamber and the cam chamber out and blow the ports clear, taking care not to leave abrasive or swarf in a machined bore. Clean enough to inspect is the aim; aggressive blasting on a chamber wall is how a serviceable housing becomes a scrapped one.
• Step 5. Check the flange faces and the drive bore against the old one
  Lay the new housing beside the old and compare each sealing face and flange face for flatness, the corner bolt holes for oval wear, and the drive bore and its seal seat for scoring. If the new housing is no better than the old, ordering it has cost you a week.
• Step 6. Fit new sealing material at every opened face
  A fresh mounting gasket at the bracket face, new sealing washers and O-rings at the ports you open, and a new drive seal if the old ring is not being reused. Reused sealing material is the most common cause of both a weep and an early return of the same fault.
• Step 7. Assemble the internals as a matched set
  Rotor, roller cage, cam plate, pumping elements, delivery valves and governor belong together and are matched as a set. Follow the index angle you marked, fit the cam plate and roller cage in the documented order, and lubricate with clean diesel oil rather than assembly grease.
• Step 8. Prime, turn by hand and verify before the engine goes back to work
  Turn the assembly by hand through a full cycle to confirm nothing binds and that the drive turns smoothly, prime the fuel side until the chamber shows no air, then confirm timing against the figure for your engine before the vehicle moves. That timing figure belongs to the engine, not to the housing, and we do not publish it for this number.

Two notes on what we deliberately do not print. We do not publish a tightening figure for the flange bolts, the pump timing figure, or the phasing angle, because all three belong to the engine application rather than to the casting, and a figure copied from a product page into a workshop manual is how a good housing gets scrapped on a correct fit. Take them from the engine manual for the vehicle in front of you. And we do not publish an internal bore dimension as a shortcut, because the chambers are measured on the casting in front of you and any figure we printed would be for a housing we cannot prove is the same one. The installation guide covers the surrounding routine, and the glossary defines the terms if any of the above are new to you.

Every 1465130991 housing is covered by a 12-month warranty against manufacturing defects. That covers a casting that arrives with a casting fault such as a crack or casting porosity, a machining fault, or damage in transit. It does not cover damage from a rebuild that was assembled badly, from contaminated fuel left standing in the chambers, from metal in the fuel that was not flushed out first, from a drive coupling forced against a worn bore, from over-torquing the flange bolts, or from a fault in another part of the fuel circuit. It is a supplier warranty from Vidishi Auto and it is not a Bosch warranty and not an Iveco warranty — we are not a dealer for any of the equipment makers and no cover from any of them travels with this part.

The condition we ask about every time is whether the system was flushed when the old pump came out, because that is the single most common reason a rebuilt injection pump fails early and the single easiest thing to get wrong on a job where somebody is under time pressure. A new housing with new internals fitted into a system that was never flushed will fail in the same way the old one did, and the casting will be blamed for it. Tell us what was done and we can tell you quickly whether a claim is likely to stand. If you would rather settle that question before you order, the contact page is the fastest route to a written answer.

The minimum order quantity is 1 piece, and on a housing line that is the correct answer rather than a thin one. A housing is not stocked the way a complete pump is: it is ordered against one specific casting on one specific vehicle, usually because an engine is already apart. Requiring a batch here would push shops towards ordering a complete pump they do not need, or towards holding old castings they have no room for. One piece also suits the distributor who has a customer waiting on a single repair. From there the line scales normally — a workshop rebuilding several engines takes a set, and a distributor takes them alongside the rest of a fuel system order.

What we do not do on this line is pretend the part is something it is not. The unit we ship is a new compatible replacement housing sold under the Vidishi Auto brand. It is not Bosch-branded, it is not Iveco-branded and it is not a factory boxed original, and it is a housing rather than an assembled pump. That matters commercially as well as legally: if your incoming goods inspection needs a specific brand on the paperwork, or if your customer needs a ready-to-fit unit, this is not that product, and we would rather tell you now than have a delivery rejected. The brand page sets out the distinction, and the help centre covers ordering and documentation questions.

The package size and gross weight in that table are a packing estimate, and we label it that way rather than quietly presenting it as a specification. No source we can stand behind publishes a packaged figure for this number, so we give you a figure we can pack and weigh against rather than a manufacturer specification we cannot evidence. If your freight is calculated on volumetric weight rather than actual weight, tell us the destination and we will confirm the chargeable weight against the carton we actually use. The shipping page sets out the full documentation and delivery terms, and the order tracking page is where to follow a shipment once it has left.

On the protective side, the two areas we watch are the drive bore and the machined flange faces. A drive bore knocked out of round will not seat the shaft properly and will score the new rotor within hours, and a flange face dented in transit will not sit square against the bracket and will weep from the first run. Both are packed protected on every unit, and both are worth checking on arrival before the box goes into stores.

A housing is a single large machined casting, so the checks that matter on this line are about surfaces rather than about a data plate. Every unit passes an inspection of the rotor chamber for scoring, corrosion and casting debris, an inspection of the cam chamber recess and its machined face for wear and flatness, a check that the four corner bolt holes and the two slotted mounting holes are clean and undamaged, a check that the drive bore and its seal seat are smooth and that the bronze ring is seated, an inspection of the threaded body ports for obstruction and for damaged threads, and a packed-weight confirmation against the documented figure. The supplier shows an ISO 9001 system certification badge on the product photography, which we record as a supplier statement rather than as a certificate we issue.

Rather than publish reviews we cannot verify, we tell you what we will actually put in writing: a written fitment confirmation against the number and the photograph you send us, a written quote against your quantity and destination, and a warranty position on any claim that follows. What we do not offer is a flow or bench test report on this casting, because we have not flow-tested it and we are not going to imply otherwise. If your customer requires a documented pressure test on the assembled pump, that belongs on the assembled pump rather than on the housing. If you need a supplier who will sign a specific inspection or conformance document with the order, ask before you buy rather than after, because the answer depends on what the document is. The help centre covers the documentation we can provide, and the partner programme page is the route for a standing arrangement that needs more than a one-off order.

Support is not an add-on on this line — it is how most of these orders get placed correctly. It costs nothing before you buy: send the number read off the old housing or its tag, a photograph showing the four features, and the engine code and vehicle details, and we check the whole set against what we supply before quoting. The photograph matters more here than it would on a complete pump, because the four visible features are what separate one housing in a wide number block from another, and because a casting with no readable number at all needs a conversation rather than an order.

Two things we will not do, whatever the order size. We will not quote a fitment we cannot evidence, which on this number means we will not tell you the pump it belongs to or the vehicle it came from. And we will not ship a housing matched on a visual guess when the number is available. If that costs us an order, it is still the right call: a wrong housing costs a workshop the whole rebuild, because the internals that fit it will be wrong too. If anything on this page is unclear, the contact page lists every route to us, and a written answer is always better than a guess on a workshop schedule.
