AC.100.3850-EV Electric Car AC Compressor 12V 2300rpm 20cc

How we label data. Confirmed values are read from supplied stock and the manufacturer’s published technical data; reference values are published family designations shown for identification only; anything not published is withheld rather than guessed.

An electric car has no belt-driven accessories, so its cabin cooling depends entirely on an electrically driven compressor. The AC.100.3850-EV is an EV air conditioning compressor built on the proven AC.100.3850 20cc split family: a brushless DC drive, an integrated controller and a fully sealed refrigerant circuit, suited to electric car platforms and electric vehicle AC retrofit projects alike.

As a 12V vehicle AC compressor it runs at the 2300rpm operating point published for the 12V variant of this family (AC.100.3851 data: 600W rated power, 1800W rated cooling capacity, 9.5–17.5V input). The same hardware exists as a 24V unit (AC.100.3850 data: 850W, 2600W, 18–32V input) for trucks and larger platforms. The 20cc electric split compressor runs on R134a refrigerant with POE68 compressor oil.

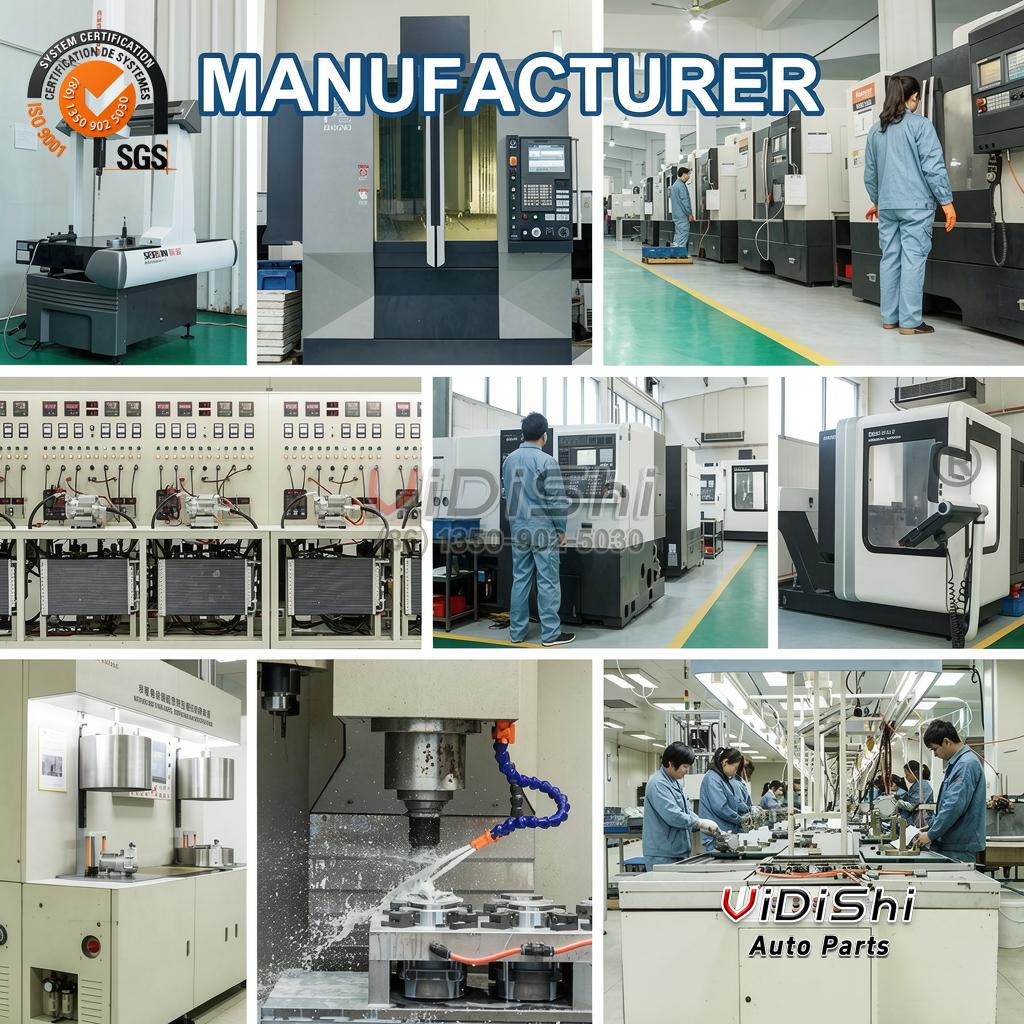

Production follows ISO9001 auto AC parts process control, with full traceability. Because voltage and controller differ across the family, we confirm your supply voltage and old unit label in writing before quoting, so the electric car AC compressor you order matches the system you are repairing.

Searches like “24v electric ac compressor”, “ac.100.3850-ev” lead straight to this unit, and AC.100.3850-EV is what they resolve to for Electric cars / EV retrofit — also RV, camper, low-speed vehicle.

Related searches including “ac compressor not working after winter”, “ac compressor car” all describe the same replacement job, so they are covered by the details below for a AC.100.3850-EV electric car AC compressor for Electric cars / EV retrofit — also RV, camper, low-speed vehicle.

Reference / cross-reference numbers are published listings and are shown for identification only; they are not claims of origin or authorization.

• AC.100.3851 — Confirmed on our own stock: Lubricant is POE68 compressor oil.
• AC.100.3850 — 24V variant of the same 20cc electric split family
• 9.5–17.5V DC — Input voltage window published for the 12V variant
• 18–32V DC — Input voltage window published for the 24V variant

• Dedicated EV configuration — an electric car AC compressor for battery platforms and conversions.
• Runs as a 12V vehicle AC compressor at the published 2300rpm operating point.
• A 2300rpm electric compressor option in the same family as the 24V AC.100.3850 unit.
• 20cc electric split compressor displacement for compact A/C systems.
• R134a electric compressor design charged with POE68 compressor oil.
• Produced under ISO9001 process control — dependable auto AC parts for EV work.

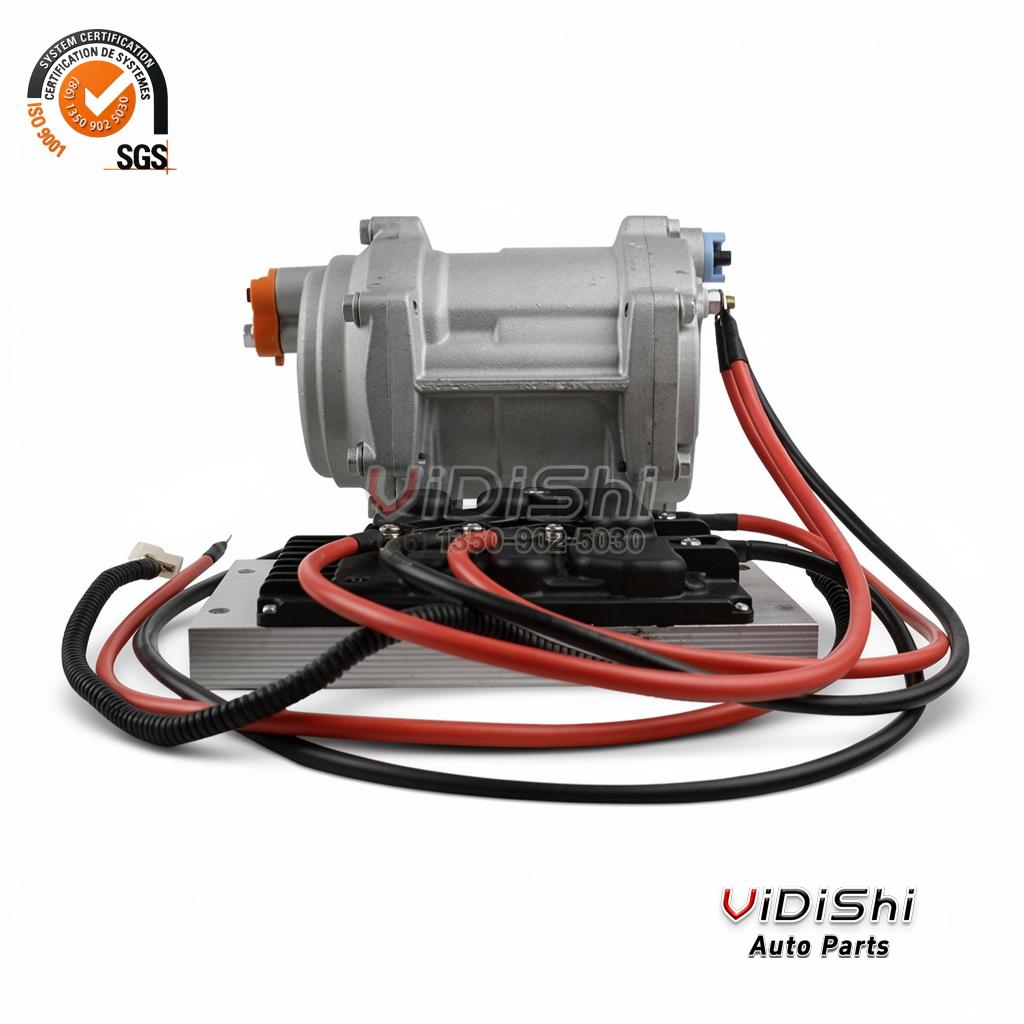

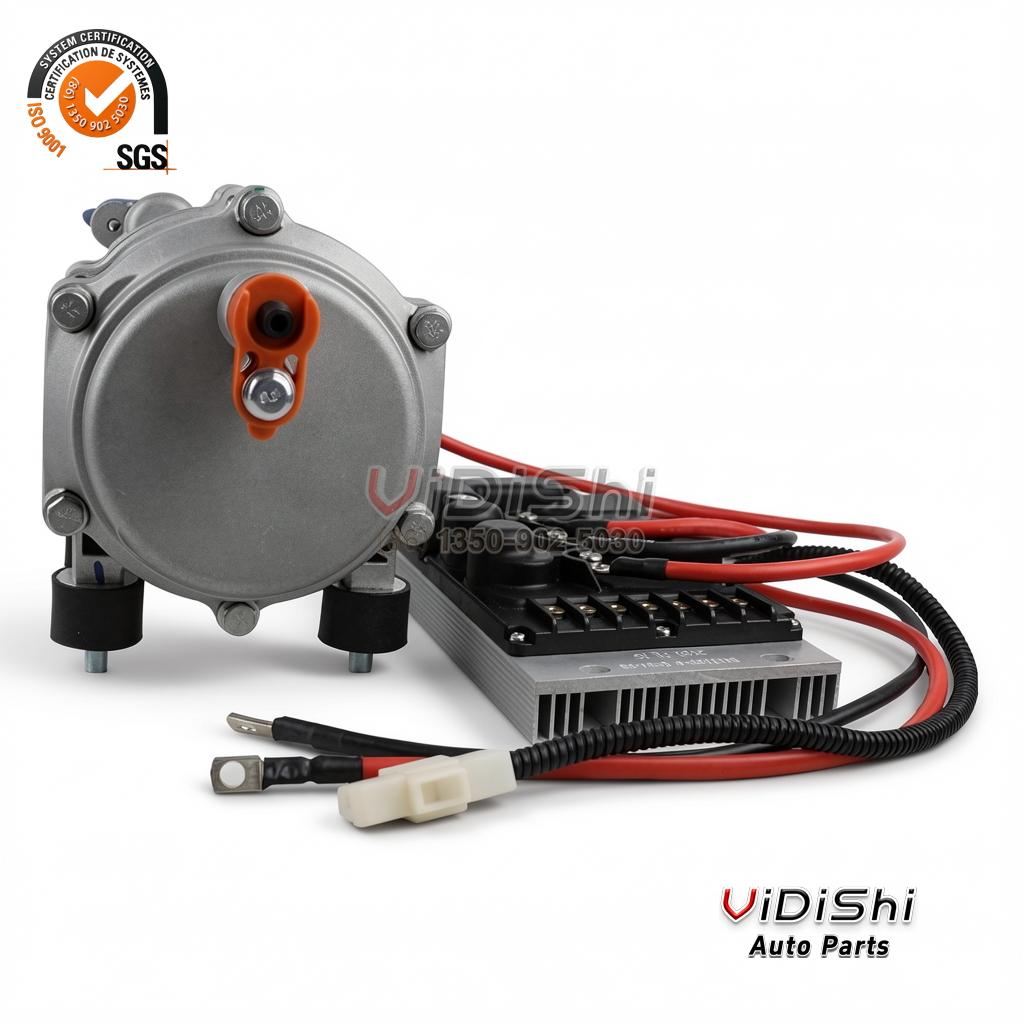

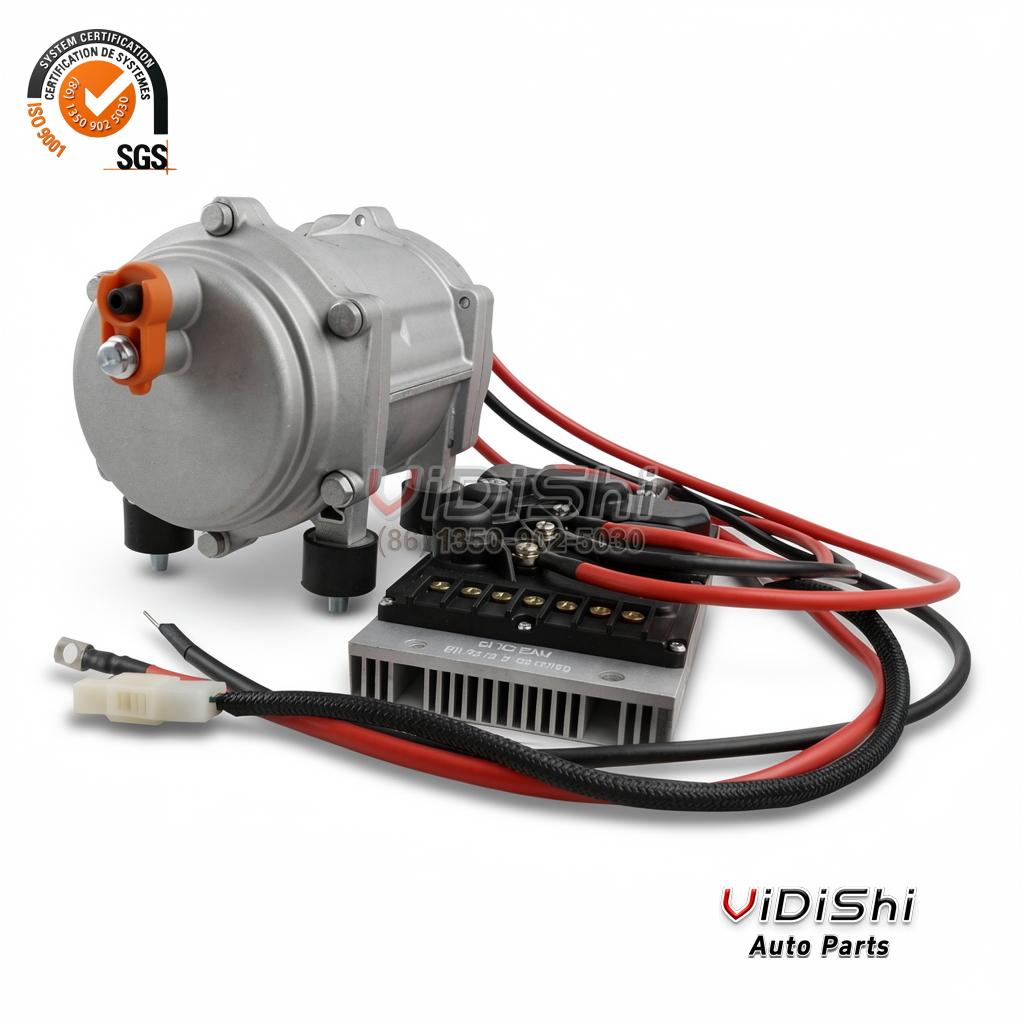

• Supplied with controller, DC harness and O-ring fittings for electric vehicle AC retrofit.
• Displacement is listed at 20cc/r on this line.

• No cold air in the EV cabin and the old electric compressor never spins up.
• Controller fault codes or repeated over-current cut-outs.
• Oil residue at the compressor housing, ports or DC connector grommet.
• Compressor runs but cabin cooling has clearly dropped below original performance.
• Corroded or heat-damaged DC connectors causing intermittent operation.

• 1Operating point is recorded as 12V · 2300rpm for this reference.
• 212V variant data for this unit: 600W rated power · 1800W cooling · 2300rpm · 9.5–17.5V input — check it against the number stamped on your old part.
• 3Mount the AC.100.3850-EV compressor, fit new O-rings, and connect suction and discharge lines.
• 4Wire the controller per the color-coded harness with correct fusing for the variant power.
• 5Evacuate, charge R134a, then verify speed, cooling output and controller protection cut-outs.
• 6Workshops searching “ac compressor cost to replace” usually need the fitting sequence confirmed before the belt comes off, so the steps below are written in plain order for a AC.100.3850-EV electric car AC compressor for Electric cars / EV retrofit — also RV, camper, low-speed vehicle.

• Family: AC.100.3850 (24V · 850W · 3200rpm) / AC.100.3851 (12V · 600W · 2300rpm) — match this against your vehicle before ordering.
• EV condenser and evaporator units
• Displacement is recorded as 20cc/r for this reference.
• Confirmed on our own stock: 24V variant data is 850W rated power · 2600W cooling · 3200rpm · 18–32V input.
• EV operating voltage is listed at 12V on this line.
• Confirmed on our own stock: Displacement is 20cc/r.
