AC Compressor 5Q0820803P for Audi A3 VW Tiguan | 6SES14C

How we label data. Confirmed values are read from supplied stock and published technical data; reference values are published cross references and are shown for identification only; anything not published is withheld rather than guessed.

An air-conditioning compressor is the pump of the A/C loop: it compresses low-pressure refrigerant vapour and feeds it to the condenser so the heat can leave the car. On the Volkswagen Group MQB platform the compressor is bolted low on the engine block and driven by the accessory belt, with displacement regulated by an internal control valve rather than by cycling the clutch on and off.

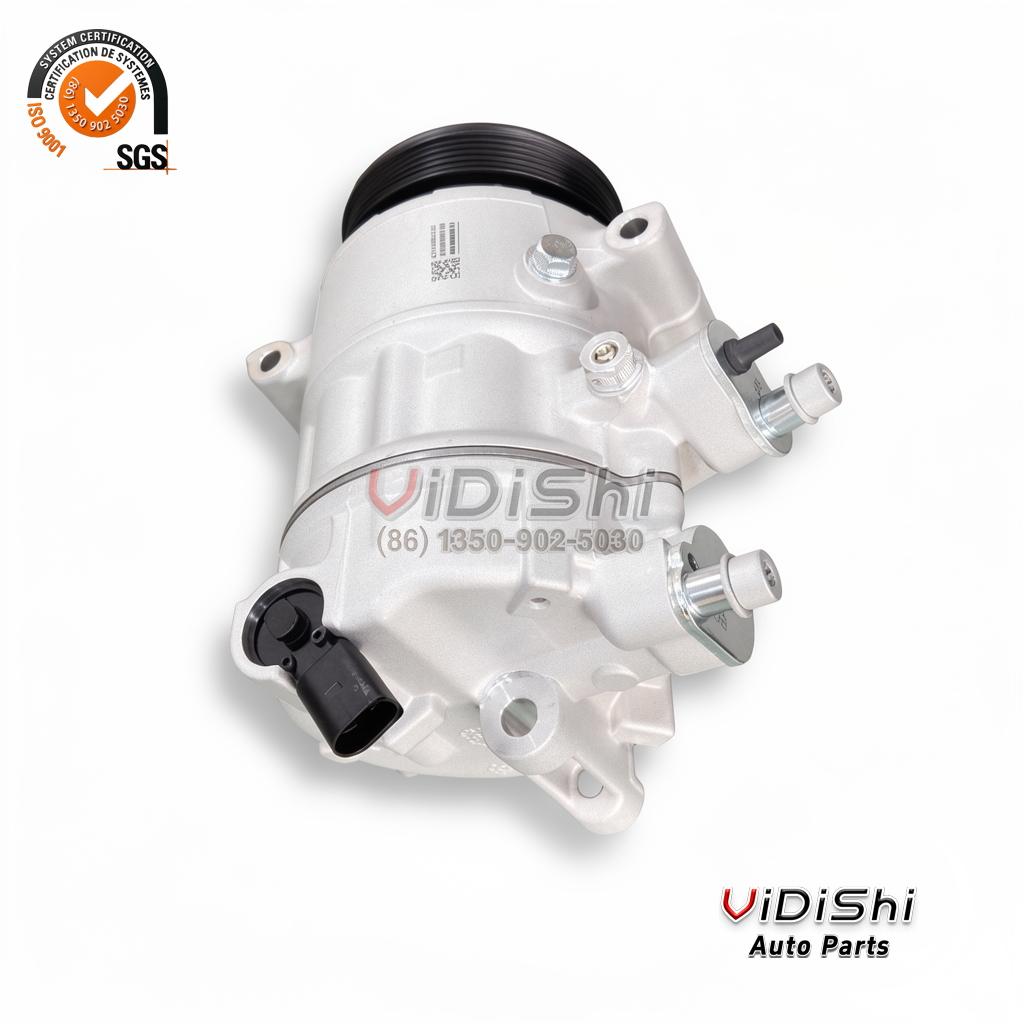

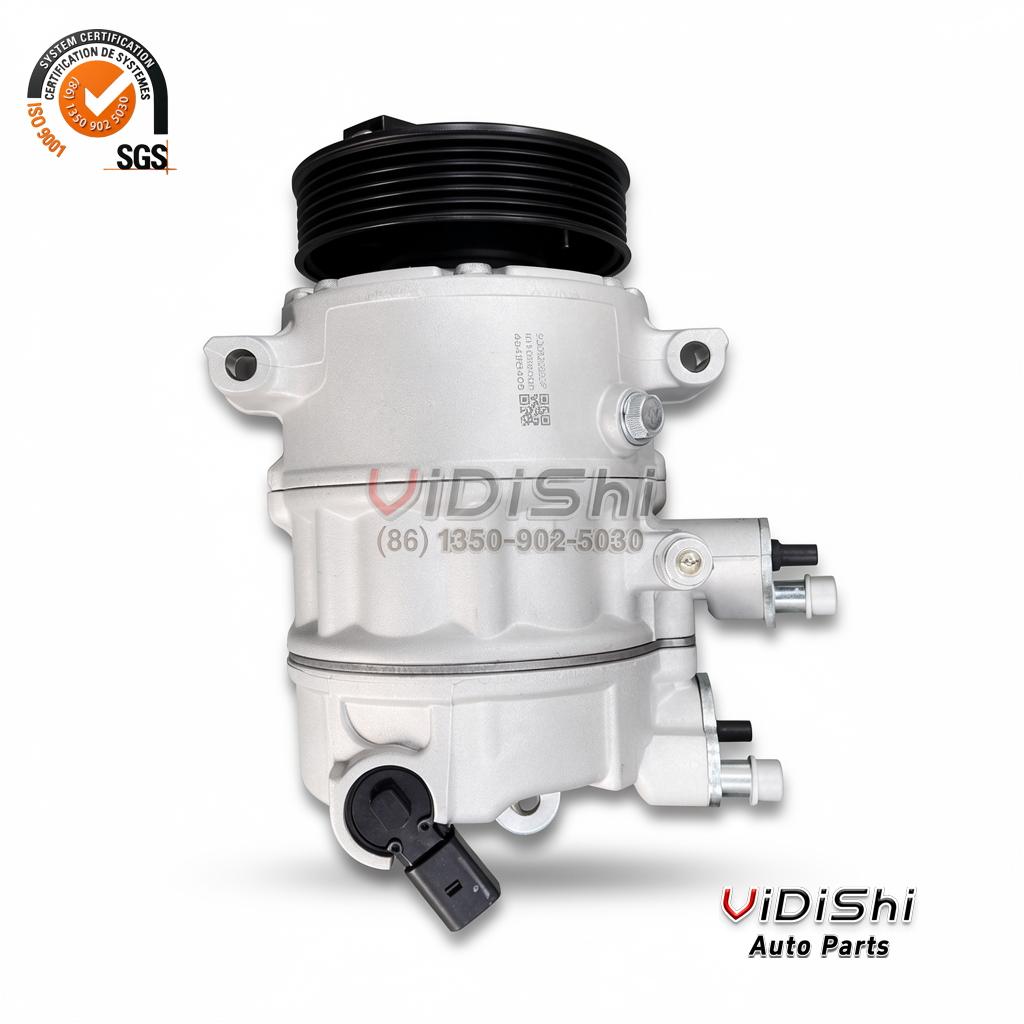

The 5Q0820803P compressor is the VW Group reference for the 6SES14C unit. Published parts data identifies it as a Denso 6SES14C compressor: 12V clutch, R134a refrigerant, ND-8 oil, a 6-rib pulley of 110 mm and a bolted mounting. It is listed for the Audi A3 1.4T, VW Tiguan 2.0 TSI and the wider MQB family covering Golf, Jetta, Arteon and Taos, together with the Skoda and Seat models that share the platform.

The EA211 and EA888 engines named in this listing are the two four-cylinder families that dominate this platform: EA211 is the 1.4 TSI unit, EA888 the 2.0 TSI. Because several compressor variants were fitted across the same model years, the safest identification is the number on the old compressor plus the engine code. We confirm the match in writing before quoting.

Buyers usually reach 5Q0820803P through searches such as “volkswagen air conditioning compressor”, “volkswagen ac compressor”. All of them describe the same task: sourcing a replacement 6SES14C AC Compressor for Audi A3 1.4T / VW Tiguan, EA211 / EA888 engines (VW Group MQB).

Related searches including “5q0820803k”, “ac compressor volkswagen” all describe the same replacement job, so they are covered by the details below for a 6SES14C AC Compressor for Audi A3 1.4T / VW Tiguan, EA211 / EA888 engines (VW Group MQB).

Reference / cross-reference numbers are published listings and are shown for identification only; they are not claims of origin or authorization.

• F001030152 — Published alongside 5Q0820803P in supplier listings
• 5Q0820803D — Superseded VW Group number
• 5Q0820803J — Cross references for this unit: F001030152 · 5Q0820803D · 5Q0820803J · 5Q0820803N · 5Q0820803R — check it against the number stamped on your old part.
• 5Q0820803N — Confirmed on our own stock: Compressor type is 6SES14C (Denso family).
• 5Q0820803R — Engines is recorded as EA211 / EA888 for this reference.
• 5Q0820803K — Same-family VW Group compressor number

• Identified as 5Q0820803P / 6SES14C for the VW Group MQB platform.
• Covers the Audi A3 AC compressor and the VW Tiguan AC compressor applications.
• 12V clutch winding matched to the original drive belt system.
• 6-rib 110 mm pulley so the original belt track is retained.
• R134a with ND-8 / PAG oil per the published factory specification.
• Pulley is recorded as 6 ribs · 110 mm for this reference.
• Confirmed on our own stock: Pulley is 6 ribs (PK), 110 mm clutch.
• A dependable VW AC compressor for resellers and independent workshops.

• Vents blow warm even with the A/C switched on and the engine at temperature.
• Rumbling or rattling from the compressor that changes with engine speed.
• Refrigerant oil around the shaft seal, the ports or the housing joint.
• Clutch never engages, or the compressor cycles every few seconds.
• Compressor locked solid after a drier failure spread debris through the loop.

• 1Recover the remaining refrigerant with certified A/C equipment — do not vent to atmosphere.
• 2Disconnect the battery, release the drive belt and unplug the compressor connector.
• 3Unbolt the old compressor, fit new rated O-rings and mount the new 6SES14C unit.
• 4Replace the receiver drier, then evacuate and charge with R134a and the specified oil.
• 5Leak-test, confirm clutch engagement and vent temperature, then road-test the vehicle.

• VW Group A/C condensers
• Voltage class: 12V passenger car platform — match this against your vehicle before ordering.
• Compressor type is recorded as 6SES14C for this reference.
• Mounting for this unit: Bolted, direct fastening — check it against the number stamped on your old part.
• ND-8 / PAG compressor oil
• Other MQB platform compressors
