AUTOOL SVB308 Articulating Borescope 6.2 mm IP67 Inspection Camera
Four-way articulating borescope with a 6.2 mm probe, IP67 rated tip, built-in display and a 1 metre flexible metal tube.
Original price was: $166.00.$155.00Current price is: $155.00.
100% Secure Checkout
Free Shipping Over $1099
Customer Satisfaction
International Shipping
Product Specifications
Product Details
Technical specifications
| Model | SVB308 |
|---|---|
| Probe diameter | 6.2 mm |
| Tube length | 1 m |
| Tube material | Flexible metal tube |
| Articulation | Four-way, 360 degree |
| Ingress protection | IP67 (probe) |
| Field of view | Not published |
| Battery | Not published |
| Input power | DC 5 V |
| Warranty | 3 years |
| Packaged shipping weight | Not published by the manufacturer |
| Packaged shipping size (L x W x H) | Not published by the manufacturer |
| Supplied brand | Vidishi Auto |
| Reference design | AUTOOL (reference only) |
| Origin status | Not a genuine AUTOOL product – aftermarket compatibility part |
What this articulating borescope does
A borescope puts a camera and a light source at the end of a flexible tube so a technician can inspect a cylinder, a valve or a pipe run without dismantling the assembly. Articulation means the tip can be steered after it is inside, which is what lets you look back at a surface rather than only straight ahead.
Supplied under the Vidishi Auto brand as a compatible replacement referencing AUTOOL, this unit is aimed at distributors, workshops and fleet buyers who need a repeatable, documented part.
Why choose this unit
- Four-way articulation lets the tip look back at a surface after it is inside the cavity
- 6.2 mm probe fits spark plug holes, injector ports and most pipe runs
- IP67 rated probe keeps working in wet bores and oily cavities
- Built-in display means no phone mount or app pairing is needed on the job
- 1 metre flexible metal tube holds its shape while being pushed through a cavity
Compatibility & fitment
The probe diameter decides what the tool can enter: at 6.2 mm it suits spark plug holes, injector ports and most pipe runs, but not a glow plug hole on engines with a smaller port. The unit runs from DC 5 V and carries its own display, so it does not depend on a phone app or an external monitor.
Check the smallest opening on the job before ordering. A probe larger than the port simply will not enter, and articulation does not help if the tip cannot reach the cavity.
How it works

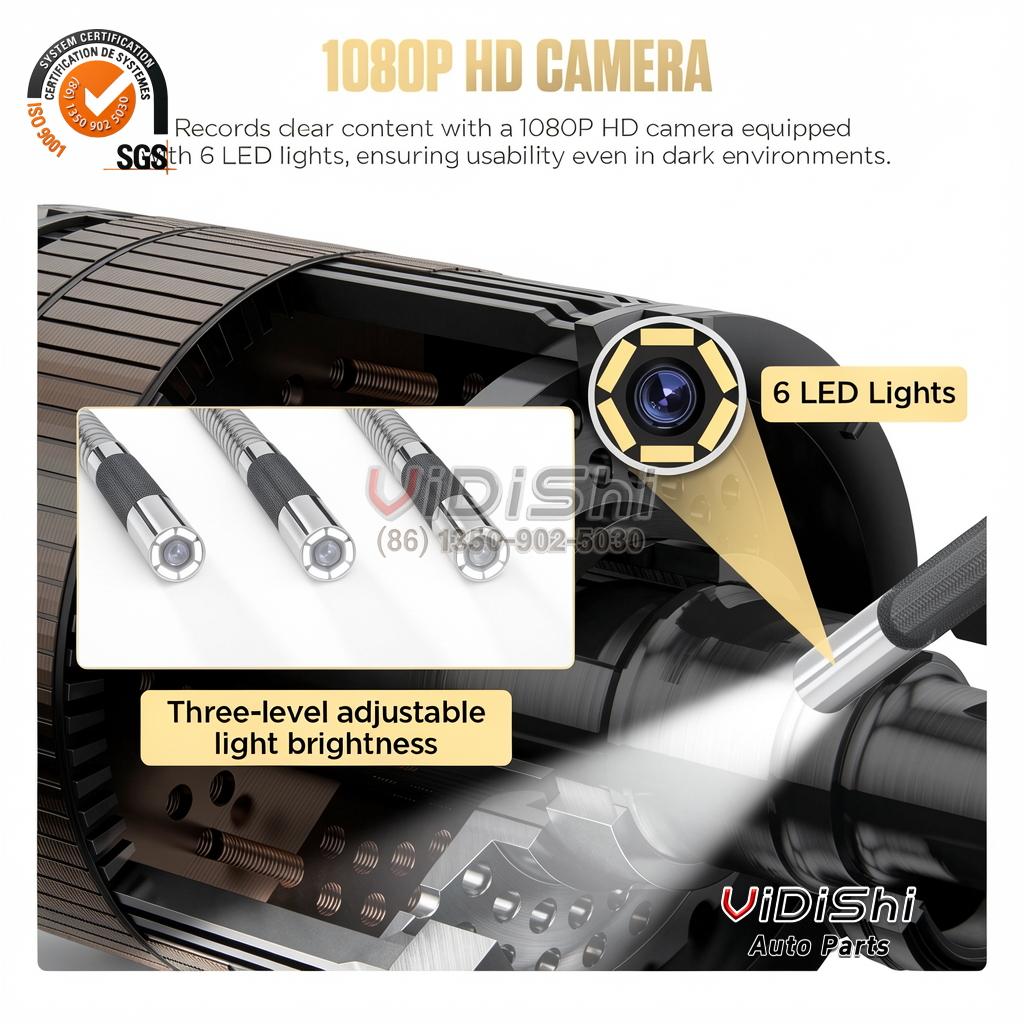

The camera module sits behind a window at the tip, lit by LEDs around the lens. Steering cables run the length of the tube to the joystick on the body, so moving the control bends the tip while the rest of the tube stays where you put it.
Installation steps
- Charge the handset and switch the unit on before the inspection.
- Fit the probe into the port slowly, steering only once the tip is inside.
- Use the joystick to aim the tip at the surface you need to see.
- Withdraw the probe straight, wipe the tip clean and store the tube coiled loosely.
Safety & certifications
The IP67 rating applies to the probe, not to the handset, so the display unit must be kept dry. Do not insert the probe into a running engine or a live electrical enclosure, and let hot components cool before inspection.
Typical use cases
- Cylinder and valve inspection without stripping the head
- Looking inside pipe runs and heat exchangers
- Checking weld penetration inside fabricated assemblies
- Inspection of cavities behind panels and bulkheads
Wholesale & B2B supply
We supply AUTOOL SVB308 Articulating Borescope 6.2 mm IP67 Inspection Camera in wholesale quantities (MOQ 3 sets) for distributors, workshops and fleet operators. AUTOOL, Vidishi Auto units ship in export cartons and can be OEM/ODM labelled.
Request tiered pricing for container or pallet orders, and share your target volume so we can quote MOQ-based pricing.
How it compares
Against a fixed-tip endoscope, an articulating probe lets you look backwards and around corners inside a cavity, which is the difference between seeing a valve seat and only seeing the cylinder wall. Against a phone-based scope, this unit carries its own screen, so it works where a phone mount is impractical.
Troubleshooting
- Blurred image – the tip window is dirty with oil or carbon
- Tip will not steer – the tube is kinked; straighten it before pushing further
- Dark image – the LED brightness is set too low for the cavity size
Maintenance
- Wipe the tip window with a soft cloth after every job.
- Coil the tube loosely for storage; do not fold or crease it.
- Keep the handset dry and away from solvents, since the IP rating covers the probe only.
Frequently asked questions
Is this a genuine AUTOOL product?
No. It is supplied under the Vidishi Auto brand as a compatible replacement referencing AUTOOL. We do not claim to be an authorized AUTOOL dealer.
What exactly is the autool-svb308-borescope-62mm?
It is a articulating borescope. The listed specification covers model SVB308, probe diameter 6.2 mm, tube length 1 m. Values the source did not publish are marked Not published in the specification table rather than estimated.
Can I order the autool-svb308-borescope-62mm wholesale?
Yes. The minimum order quantity is 3 sets. Contact us on WhatsApp with the SKU and your quantity for tiered pricing on container or pallet orders.
What warranty comes with the autool-svb308-borescope-62mm?
The warranty is 3 years as supplied by the published data.
How do I confirm the autool-svb308-borescope-62mm fits my application?
Confirm the smallest port opening on your job is larger than 6.2 mm, then check the data plate on the tool for the model code. If any point does not match, send us the details on WhatsApp and we will confirm before the order is placed.
What is included with the autool-svb308-borescope-62mm?
The product covers the articulating borescope as photographed. Accessories shown in the images are part of the set as supplied; anything not shown is not included, and we confirm the contents with you on WhatsApp before dispatch.
What is the packaged shipping weight of the autool-svb308-borescope-62mm?
The packaged shipping weight and carton size are not published by the manufacturer, so they are marked Not published in the specification table. We confirm the actual carton details on the quotation rather than estimating them.
How is the autool-svb308-borescope-62mm shipped and supported?
Units ship in export cartons suitable for mixed container loads, and technical support is available through the Vidishi Auto sales team on WhatsApp. Ask for the packing details with your quote so the freight can be costed accurately.
Warranty & support
Warranty is listed as 3 years by the published data. Technical support and replacement tubes are available; contact Vidishi Auto on WhatsApp with the SKU and the inspection job before ordering.
Get a quote
Ready to order AUTOOL SVB308 Articulating Borescope 6.2 mm IP67 Inspection Camera (autool-svb308-borescope-62mm)? Send the SKU and your quantity to our team.
