Battery Tester Autool BT860 for workshop battery diagnostics

Specifications

Fitment & verification

How to identify the correct unit: locate the reference number stamped on your original component or in the vehicle parts catalogue, then cross-check it against the number below before ordering. Trim and market variants exist for many applications, so the short check is worth the minute before checkout.

How to identify & confirm fitment in 4 steps

1. Locate the OE / reference number on your old part or in the vehicle parts catalogue.
2. Match it to BT860 shown on this page.
3. Send your VIN and engine code plate so our team runs an exact-fit check.
4. Receive fitment confirmation before we dispatch your order.

Cross-reference coverage for battery tester fitment is listed above; confirm your VIN before ordering.

What this part is

A direct-fit compatible replacement referenced by BT860 for the applications listed in the fitment block.

Why this unit sells

Buyers searching automotive battery diagnostic tool and battery load tester look for the strengths listed here: direct fit, verified reference and wholesale packing.

Materials & construction

Built to the original equipment drawing, the Battery Tester follows the same inspection checkpoints as the reference sample. Tolerances that affect installation are held to the drawing rather than adjusted on the bench.

• Surface treated to resist corrosion in road and workshop conditions.
• Dimensional check against the reference sample before packing.

Material and build choices answer the most common battery tester replacement and battery tester guide questions from workshop buyers.

Application & fitment

The fitment block above lists the markets and model families this reference is stocked for, so buyers can match demand without re-checking every listing.

Technical insights

Technical background. A BT860 is most useful when a vehicle cranks slowly but the battery shows a healthy surface voltage, a situation common after a short drive or a recent full charge. The conductance battery test reports voltage, internal resistance, and health against the rated CCA entered from the label, exposing cells that pass a simple voltage check but fail under starting demand. The cranking test captures actual starting voltage and time, and the charge-system test checks alternator output and rectifier behavior, so a weak battery, a failing diode, or a slipping belt can be told apart.

Application context. Preparation matters with the BT860: switch off the engine and all electrical loads before a battery test, and if the battery was just fully charged, switch on the headlights for two or three minutes so the elevated surface voltage settles first. The tester is powered only by the battery under test, so clamp contact quality directly affects operation. Attach the red clamp to positive and the black clamp to negative, and reseat both if the unit reports poor connection. For parallel batteries, disconnect the negative link and test each battery individually.

Field note. BT860 maintenance is straightforward because the design has few consumables beyond thermal paper. Replace the paper roll when printing fades, and keep the print tray free of debris. The built-in temperature sensor should be treated as part of the measurement: results taken in extreme cold or heat should be reviewed with that context in mind rather than expected to match a laboratory figure. Use the data-review menu to track how a battery's health reading moves between visits, which often reveals a gradual decline before an outright failure. Store the tester in its case away from acid vapor.

Deep dive. Against the rest of the AUTOOL range, the BT860 sits as a lead-acid workshop tester with printing and temperature monitoring. Its CCA window starts at 100 rather than 30, which is rarely a limitation for car and light-truck batteries but excludes very small units. The BT880 adds leakage-current monitoring and a broader language set, while the BT960 adds lithium menus and a wider voltage window. Buyers choosing the BT860 typically prioritize a durable, battery-powered unit with on-site printing for conventional flooded, AGM, GEL, and EFB batteries over extended chemistry coverage.

Application context. The BT860 accepts CCA, BCI, CA, MCA, SAE, EN, DIN, IEC, JIS, and GB rating inputs. CCA originates from SAE practice and describes cold-cranking current at a defined low temperature, while EN and DIN figures come from European standards and frequently produce larger numbers than the same battery's CCA rating. JIS labels use number-and-letter codes selected as their own standard. To keep results meaningful, choose the standard printed on the label and enter its rated value exactly; mixing an EN figure into a CCA field would make the health percentage look unfairly low.

Field note. The BT860 profile fits independent garages, battery retail counters, and fleet workshops that need a printed record for every battery test but work only with lead-acid chemistry. Its 12V/24V coverage extends use to trucks and buses, and the 3.2-inch color display stays readable in sunlight and dim bays alike. Training burden is low: the main menu offers battery capacity, cranking, charge system, and data review, so apprentices can run standard tests quickly. Workshops that later add lithium-equipped vehicles would need a separate platform such as the BT960, which is worth noting at purchase time.

Technical background. The BT860's wearing parts follow the pattern of other printed-output AUTOOL testers: the battery clamp lead and thermal paper for the report printer. Clamp jaws that no longer close firmly on a top post are the first thing to replace, because a resisted connection distorts the internal-resistance calculation behind every SOH verdict. Order replacement leads against the BT860 designation rather than assuming interchange with BT760 or BT960 harnesses. Where a battery replacement is being decided, remember that terminal brushes and post shims are consumed in the same job, so stock thermal paper alongside them.

Technical background. Store the BT860 in its carrying case with the clamp lead wrapped in wide loops; tight coiling at the strain relief is the most common transport damage reported on hand-held testers. No separate power brick comes in the kit, so there is no charging routine before storage, but check the thermal paper compartment so a half-ejected roll does not rattle loose in a tool bag. Keep the tester out of engine bays after use – residual underhood heat and solvent vapors both age the housing, the clamp insulation, and the printer window over a season.

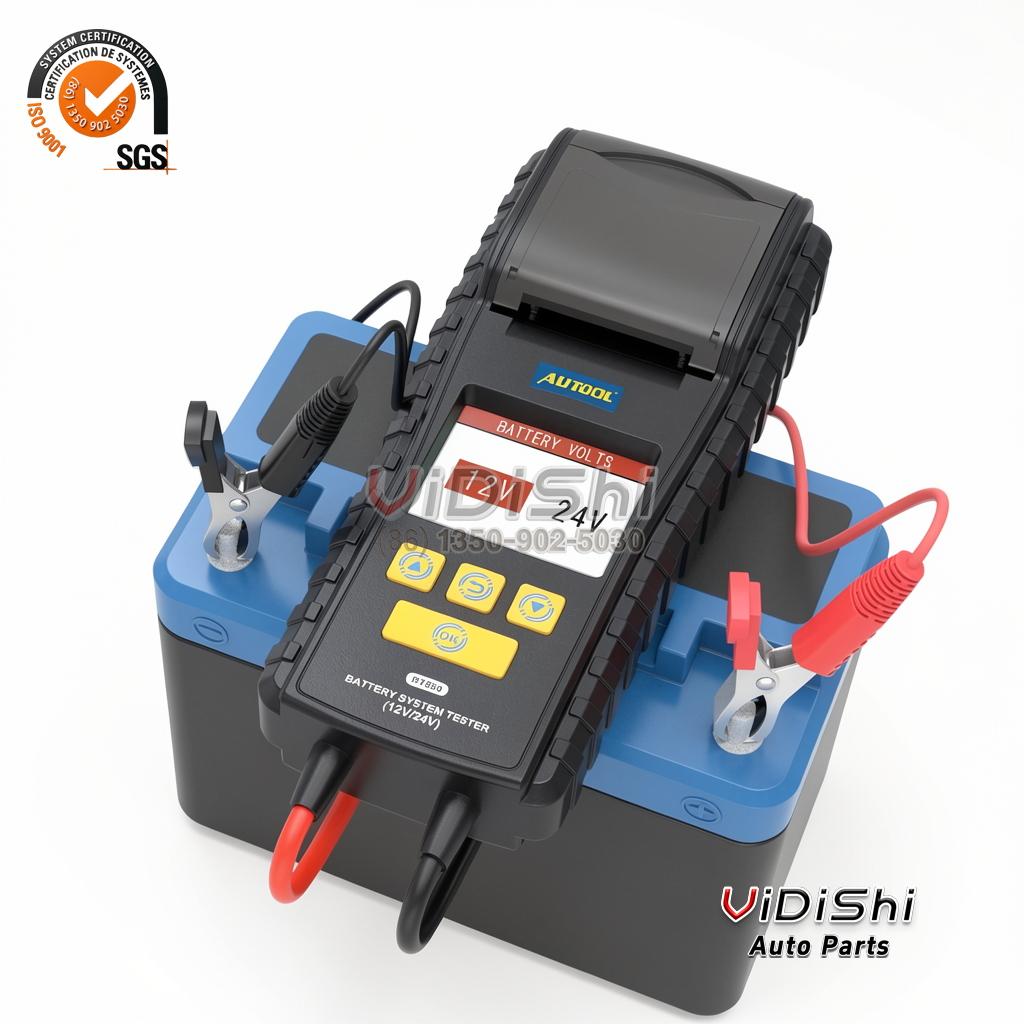

Field note. Set up the BT860 the same way each time to keep batch results comparable: clean the posts, connect red to positive and black to negative, then walk the menus for battery type – flooded, AGM flat plate, AGM spiral, GEL, or EFB – rating standard, and rated value taken from the battery label. Skip the label step and the SOH comparison loses meaning. For cranking and charging checks, follow the on-screen prompts exactly, including engine speed and timing, since these tests read the vehicle system rather than the battery alone. Reverse-connection protection covers a swapped clamp, but correct it before proceeding.

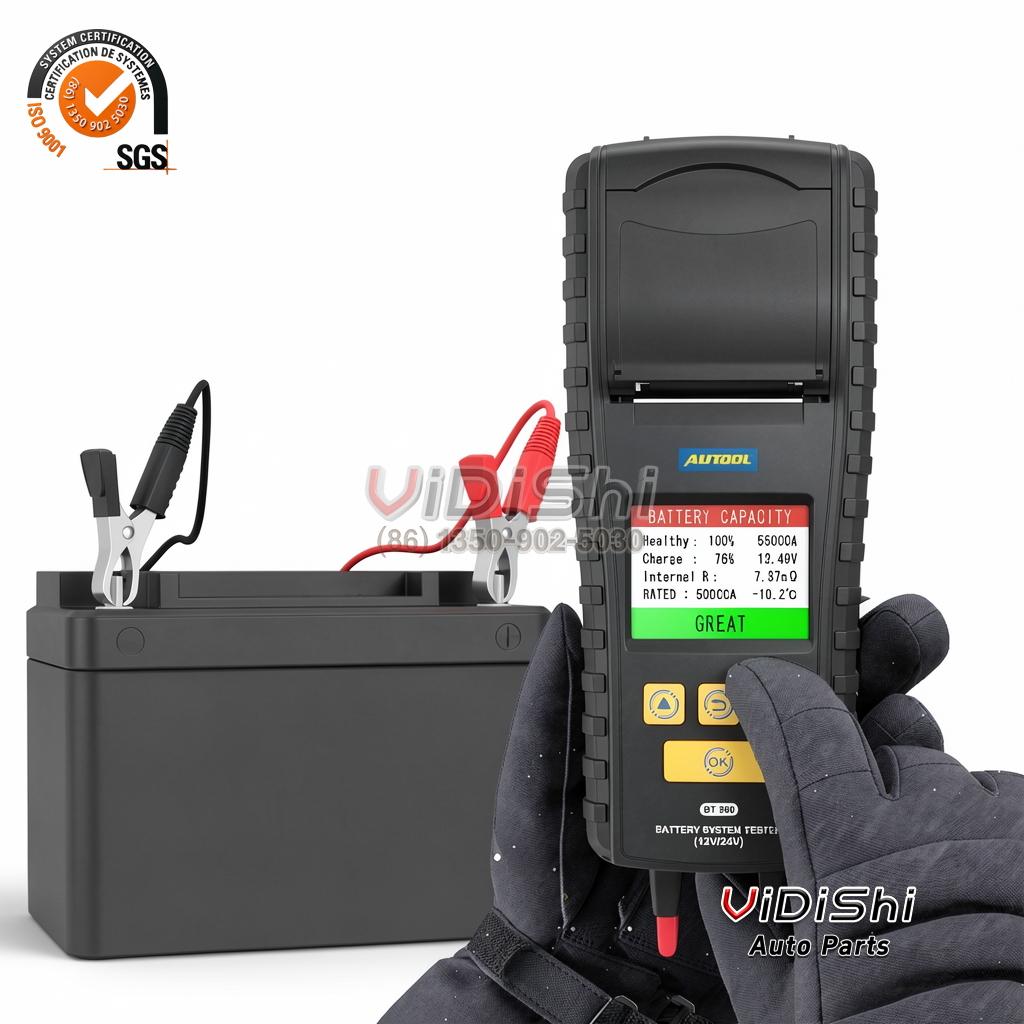

Deep dive. Cold weather is when the BT860 sees its heaviest use and its most misread results. Cranking demand rises as electrolyte temperature falls, so a battery that just passes a morning test in deep winter may still fail a week later; conversely, a low CCA reading on a battery soaked overnight at minus temperatures should be re-checked after the vehicle warms up. Test with surface charge removed but charge state reasonable, and treat printed winter reports as snapshots of one condition. In summer, re-test batteries that show symptoms only when hot, such as slow cranking after long idling.

Deep dive. For workshop purchases of BT860 units, put the paperwork discipline into the purchase order itself: specify the BT860 model designation, the language version required, and that each box must contain the main unit, clamp lead, printing paper, and manual as packed by AUTOOL. On receiving, print a test report from every unit and staple it to the batch file – this proves the printer and clamps work before the warranty period matters. Note the main-unit and accessory warranty split stated for the AUTOOL tester line, and file invoices where the batch lead can retrieve them.

Field note. Model confusion around the BT860 usually involves its neighbors in the AUTOOL range. It is a lead-acid-focused tester: flooded, AGM, GEL, and EFB chemistries are the documented scope, and it has no dedicated lithium mode – a job that needs LiFePO4 support belongs to the BT960. It also lacks the BT880's leakage-current monitoring and thermal monitoring menus. Verify the exact voltage window on the label before using it on 24V trucks, and if a BT860-1 style suffix appears on your unit, record it, because accessory leads and firmware notes are issued per revision.

Supply note. The AUTOOL BT860 uses conductance testing technology to assess battery condition without requiring a full discharge before the test.

Supply note. The BT860 covers 12V and 24V battery systems with a CCA test range of 100-2000, while DIN, IEC, and GB entries span 100-1400.

Supply note. The BT860 supports regular flooded, AGM flat plate, AGM spiral, GEL, and EFB battery types, and its documentation does not list lithium battery testing.

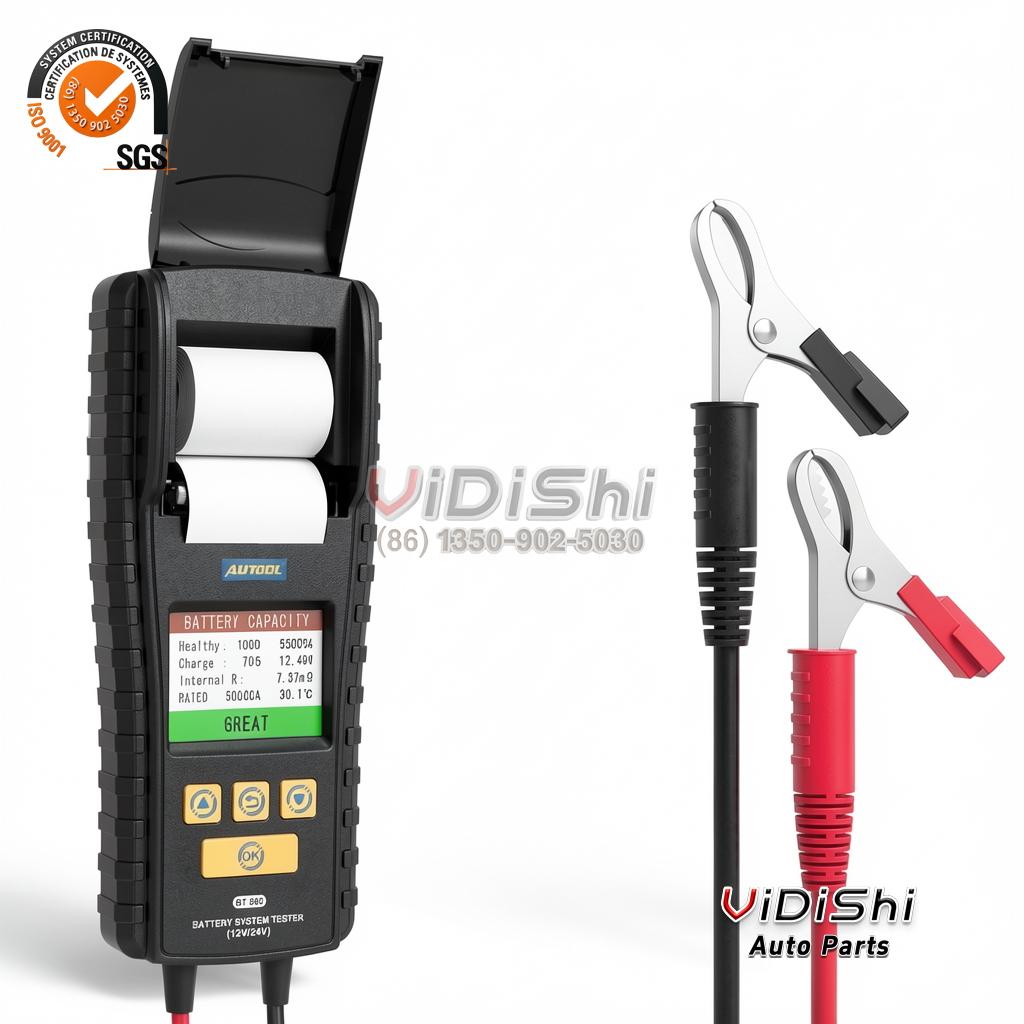

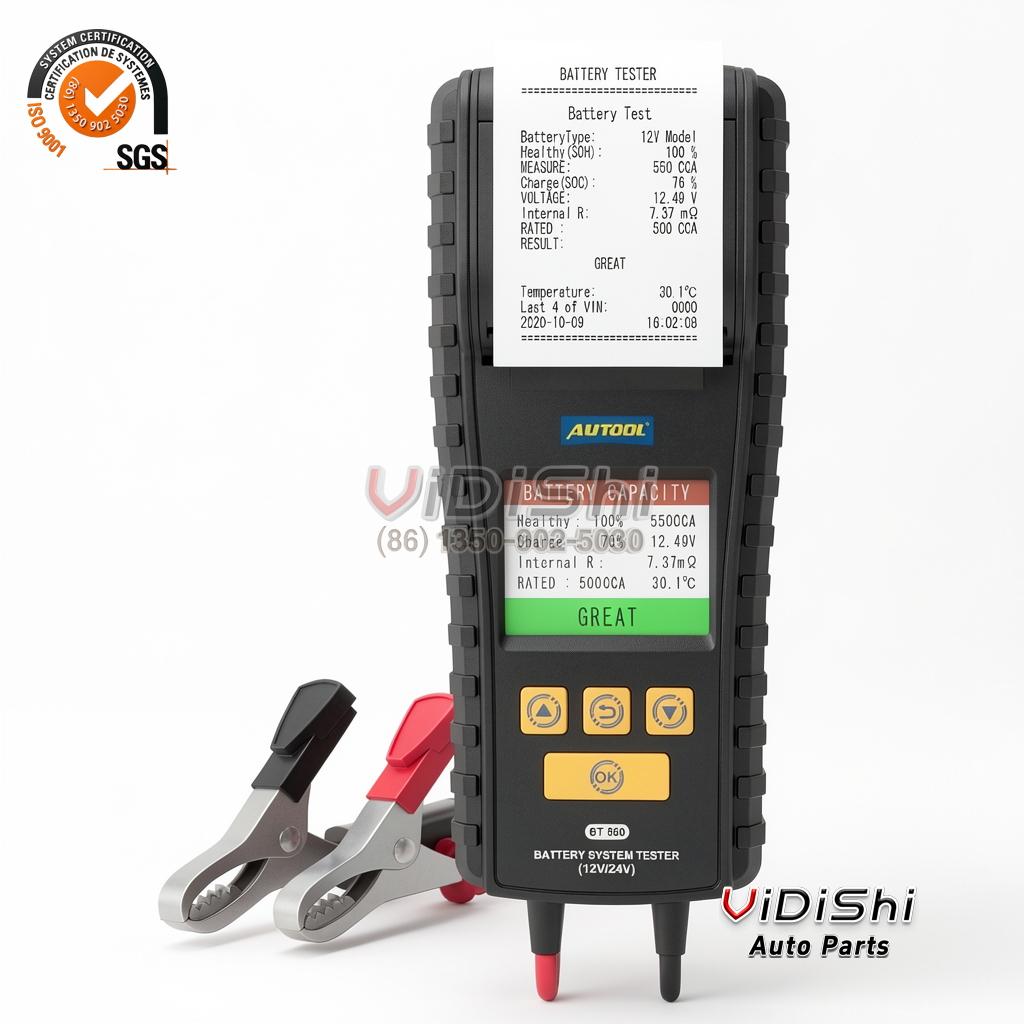

Supply note. The BT860 integrates real-time temperature monitoring, a built-in thermal printer, and a 3.2-inch HD color display in a 270 x 100 x 50 mm housing.

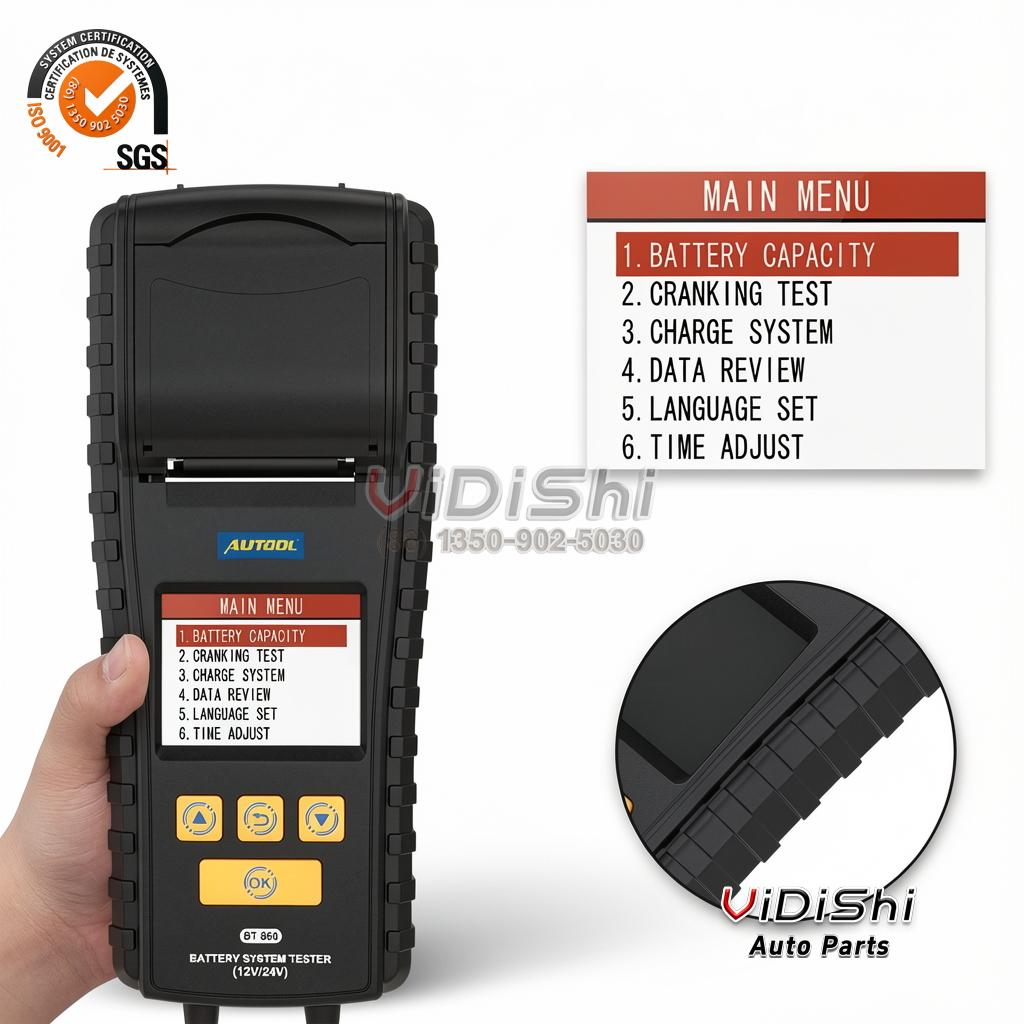

Application note. The BT860 stores previously measured results for later review through a data menu and operates with a 10-language interface.

The engineering notes above compile verified reference, material and application data for aftermarket battery tester and compatible battery tester.

Quality & testing

Inspection runs on an AQL sampling plan: incoming material, in-process checkpoints and a final release check are recorded on the batch sheet. Certification on file: CE.

The Vidishi Auto advantage

Battery Tester — Battery Tester. Supplied under Vidishi Auto with batch traceability and trade-grade packing; volume pricing and private-label options are available on request. Battery testers and analysers are used for workshop and garage battery diagnostics on cars, motorcycles and light trucks.

Catalog & cross-reference

Catalog numbering for this Battery Tester: the primary reference is BT860. When a supplier catalog lists superseded or regional formats, match on the numeric core of the code rather than the prefix, then confirm the physical fit.

Catalog cross-references for battery tester catalog resolve to BT860.

Frequently asked questions

Further battery test tool with printer questions are answered by the trade desk within one business day.

Compliance disclaimer

Vidishi Auto is an independent supplier. This is an aftermarket compatible replacement, not a genuine OEM part. Brand names are trademarks of their respective owners and are used only to identify fitment.

Wholesale & support

Wholesale terms are quoted per market: volume breaks, mixed-SKU containers and private-label options are all handled by the trade desk. Test-mode documentation and language-pack notes are available on request.

Enquiries about wholesale battery tester, battery tester supplier and battery tester price receive quotations within one business day.

Trade desk replies with quotation, MOQ and lead time in one business day.

Wholesale teams answer battery tester bulk order enquiries within one business day.

Printer & data notes

Result output options are matched to the workshop routine; the scope below is confirmed before dispatch.

• Configuration checks: the supplied configuration is confirmed against your order before dispatch; application covers BT860.

Configuration and service notes for oem battery tester, auto battery tester and battery tester car are confirmed by our technical team before dispatch.

• Printer and result-output options follow the published listing.
• Result storage and export scope are confirmed with the quotation.

Workshop teams comparing alkaline battery tester, battery tester cross reference and what is a battery tester receive the configuration checklist with the quotation.

• Firmware revision notes are supplied exactly as published.

Configuration and service notes for 12 24v, 3.2 inch battery tester and battery capacity tester are confirmed by our technical team before dispatch.

Clamp & cable options

Clamp and cable sets are matched to the battery size; the options below are confirmed before dispatch.

• Reference checks: the OE / reference number is matched against your old part before packing.

Application data for battery testers, harbor freight battery tester and ancel battery tester is confirmed against your specification before dispatch.

• Clamp gauge and cable length follow the published listing.
• Kelvin-clip and temperature-probe options are confirmed with the quotation.

Engineering checks behind the best battery tester for aftermarket, real time and cca tester supply are completed before packing.

• Replacement cables are quoted for workshop programs.

Application data for battery internal resistance tester is confirmed against your specification before dispatch.
