BT960 Battery Tester AUTOOL Lithium Ion

Specification sheet

Will it fit my vehicle?

How to identify the correct unit: locate the reference number stamped on your original component or in the vehicle parts catalogue, then cross-check it against the number below before ordering. Trim and market variants exist for many applications, so the short check is worth the minute before checkout.

How to identify & confirm fitment in 4 steps

1. Locate the OE / reference number on your old part or in the vehicle parts catalogue.
2. Match it to BT960 shown on this page.
3. Send your VIN and engine code plate so our team runs an exact-fit check.
4. Receive fitment confirmation before we dispatch your order.

Cross-reference coverage for battery tester fitment is listed above; confirm your VIN before ordering.

Product overview

A direct-fit compatible replacement referenced by BT960 for the applications listed in the fitment block.

Why this unit sells

Buyers searching battery tester with printer look for the strengths listed here: direct fit, verified reference and wholesale packing.

Construction & materials

Built to the original equipment drawing, the Battery Tester follows the same inspection checkpoints as the reference sample. Tolerances that affect installation are held to the drawing rather than adjusted on the bench.

• Surface treated to resist corrosion in road and workshop conditions.
• Dimensional check against the reference sample before packing.

Material and build choices answer the most common battery tester replacement and battery tester guide questions from workshop buyers.

Applications & use cases

The fitment block above lists the markets and model families this reference is stocked for, so buyers can match demand without re-checking every listing.

Technical insights

Technical background. Slow cranking after overnight parking, repeated start-stop warnings, and unexplained flat batteries are the symptoms most often brought to a BT960. Its battery test reports measured voltage, internal resistance, state of charge, and a health percentage, which helps separate an aged battery from an undersized one. The leakage-current mode records small current drains through the negative side, so parasitic draw from an aftermarket accessory or a faulty module can be confirmed before parts are replaced. Because the BT960 also reads lithium packs, vehicles with LiFePO4 auxiliary batteries can be screened with the same workflow used for lead-acid units.

Deep dive. Before a BT960 lithium test, select the menu that matches the pack chemistry, nominal voltage, and series arrangement, since iron lithium, polymer lithium, and ternary lithium cells follow different algorithms. Confirm the battery management system permits testing in its present state before connecting the clamps. For leakage monitoring, the documented workflow requires disconnecting the negative terminal and clipping the special yellow leakage clamp onto the vehicle negative bus, so follow the vehicle sleep procedure first. On parallel battery banks, disconnect the negative link and test each battery separately to avoid misleading readings.

Technical background. BT960 upkeep is mostly consumable and power management. The thermal printer needs no ink; replace the paper roll when printouts fade, and keep a spare roll in the storage bag. Power comes from four AAA batteries or a Type-C 5V/1A source, so weak cells in the compartment can cause odd behavior during long sessions. Keep clamp jaws clean and free of corrosion, because poor contact is the most common cause of abnormal results, and repeat any unexpected test after reseating the clamps. The unit supports software upgrades, so apply firmware updates when AUTOOL releases them.

Technical background. Within the AUTOOL lineup, the BT960 is the model to shortlist when lithium coverage matters. The BT760 and BT880 are lead-acid instruments; the BT880 adds leakage and temperature monitoring, while the BT760 focuses on printing for conventional batteries. The BT960 combines both workflows and extends voltage measurement to 0-80V, which suits 12V and 24V systems on trucks and commercial equipment. Buyers who never touch lithium packs may find the BT880 sufficient, whereas mixed fleets with LiFePO4 auxiliary batteries, motorcycles, and start-stop cars justify the BT960's broader chemistry menus.

Application context. The BT960 accepts rating inputs across CCA, SAE, EN, DIN, IEC, BCI, CA, MCA, JIS, and GB systems, with CCA entries from 30 to 2000, EN ratings to 3000, and DIN ratings to 2500. CCA describes the current a battery delivers at low temperature under a defined standard, so enter the value printed on the battery label under the matching standard rather than converting between systems. Because the tester reports an algorithm-based CCA output, compare it against the same standard on the label and treat the result as a screening indicator, not a laboratory measurement.

Deep dive. The BT960 fits workshops and service fleets that increasingly see lithium: dealers handling hybrid and EV auxiliary batteries, motorcycle shops fitting LiFePO4 packs, and marine or leisure-vehicle technicians working with polymer lithium systems. General repair garages benefit too, since one handheld unit covers flooded, AGM, GEL, and EFB batteries alongside the lithium menus. Its built-in printer produces paper reports with license plate and date fields for customer handover, which suits counters where documentation is expected. Field service teams also gain from the AAA and Type-C power options when the vehicle battery itself is flat.

Application context. The BT960 ships with three consumable-adjacent items: the main copper-clamp test cable, a dedicated yellow leakage-test clamp, and a thermal paper roll for the built-in printer. Plan replacements around the clamps first, since jaw springs and insulation take daily abuse in a service bay, and a loose jaw skews conductance readings. Buy clamp cables and paper against the BT960 SKU so connector polarity and paper width match. Replace the paper roll whenever printout edges fade, and retire any clamp whose plating is corroded, because contact resistance directly distorts CCA and resistance output.

Deep dive. Between jobs, keep the BT960 in its supplied storage bag with the yellow leakage clamp coiled loosely rather than kinked at the plug. The unit is powered three ways – connected 12V battery, dry cells, and a Type-C supply – so top up the internal source before transporting the tester to a roadside job where no vehicle battery may be present. Store it away from direct sunlight and solvent vapors, which age clamp insulation and the LCD seal. For courier transport, remove the paper roll so the printer mechanism is not forced by a jammed spool.

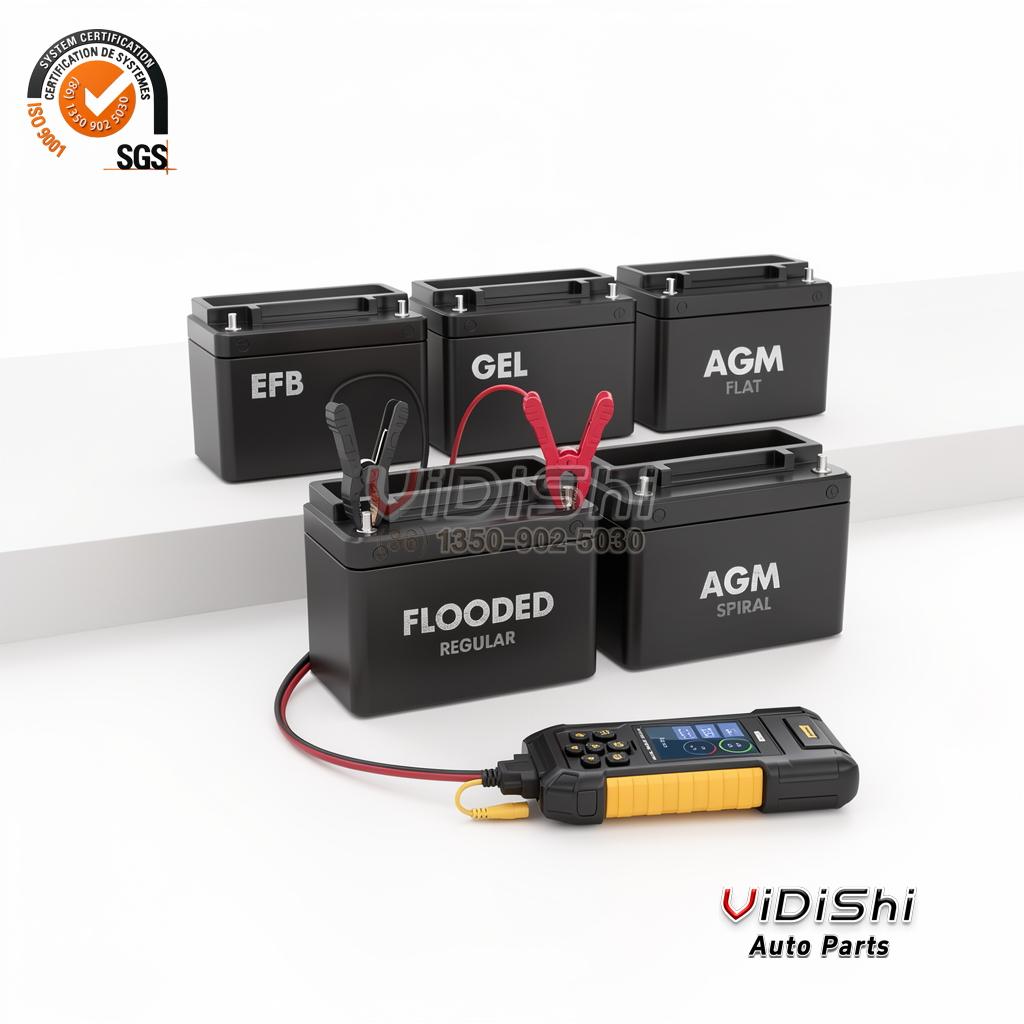

Technical background. Preparation for the BT960 goes beyond clean terminals. For lead-acid work, brush the posts, confirm the chemistry menu (flooded, AGM flat, AGM spiral, GEL, EFB) and enter the label rating under the correct standard. For lithium packs, select iron lithium, polymer lithium, or ternary lithium in the menu and match nominal voltage and series arrangement, honoring any BMS restrictions before testing. The leakage workflow is separate: after the power clamps are seated, disconnect the vehicle negative terminal and hang the special yellow clamp on the negative bus, then let the vehicle reach its sleep state before recording.

Application context. The BT960 carries a built-in temperature sensor, and AUTOOL notes 20-25 C as the battery's recommended working temperature, so interpret winter results with that context. Cold electrolyte raises internal resistance and depresses available cranking output, meaning a marginal CCA reading taken in freezing weather can look worse than the same battery at room temperature; let the vehicle thaw indoors or retest after a drive. In summer heat, a strong reading can mask plate degradation. The 0-80V measurement window also makes the unit suitable for checking 24V truck systems year-round without range concerns.

Deep dive. For fleet procurement, audit each BT960 box against the official packing list: main unit, main clamp cable, yellow leakage-test clamp cable, thermal paper roll, storage bag, and manual. The printer supports customizable license plate numbers, dates, and serial numbers on reports, which lets a workshop attach a printed record to each work order in a scheduled batch. Data records and a software upgrade menu support standardized firmware across a purchased lot, and AUTOOL's stated policy of a three-year main-unit warranty with one-year accessory coverage should be logged per serial number at intake.

Technical background. Position the BT960 correctly within the AUTOOL range before ordering: it is the only listed model with lithium battery menus, and its 0-80V voltage window exceeds the 8-30V range of the BT760 and BT880. Buyers confusing the BT960 with the BT880 lose lithium support and the wider window; buyers confusing it with the BT760 lose leakage monitoring. If a BT960-1 revision is offered in your market, confirm the suffix on the rating label and in the settings screen, and never apply a firmware package intended for the base unit to a -1 board without checking vendor guidance.

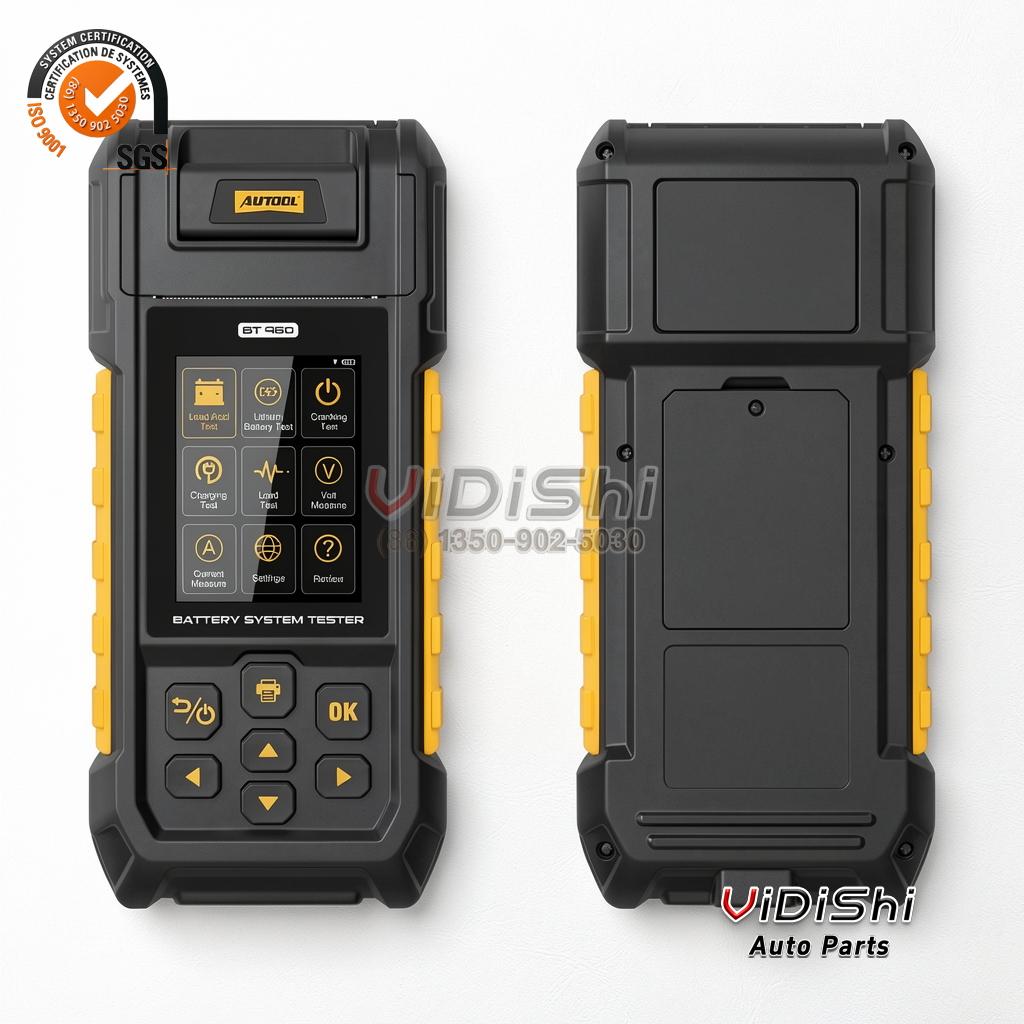

Workshop note. The BT960 runs on four AAA batteries or a Type-C 5V/1A supply and presents results on a 3.2-inch color display with 14 menu languages.

Workshop note. The AUTOOL BT960 measures voltage across a 0-80V range and current across a 0-10A range, covering both 12V and 24V battery systems.

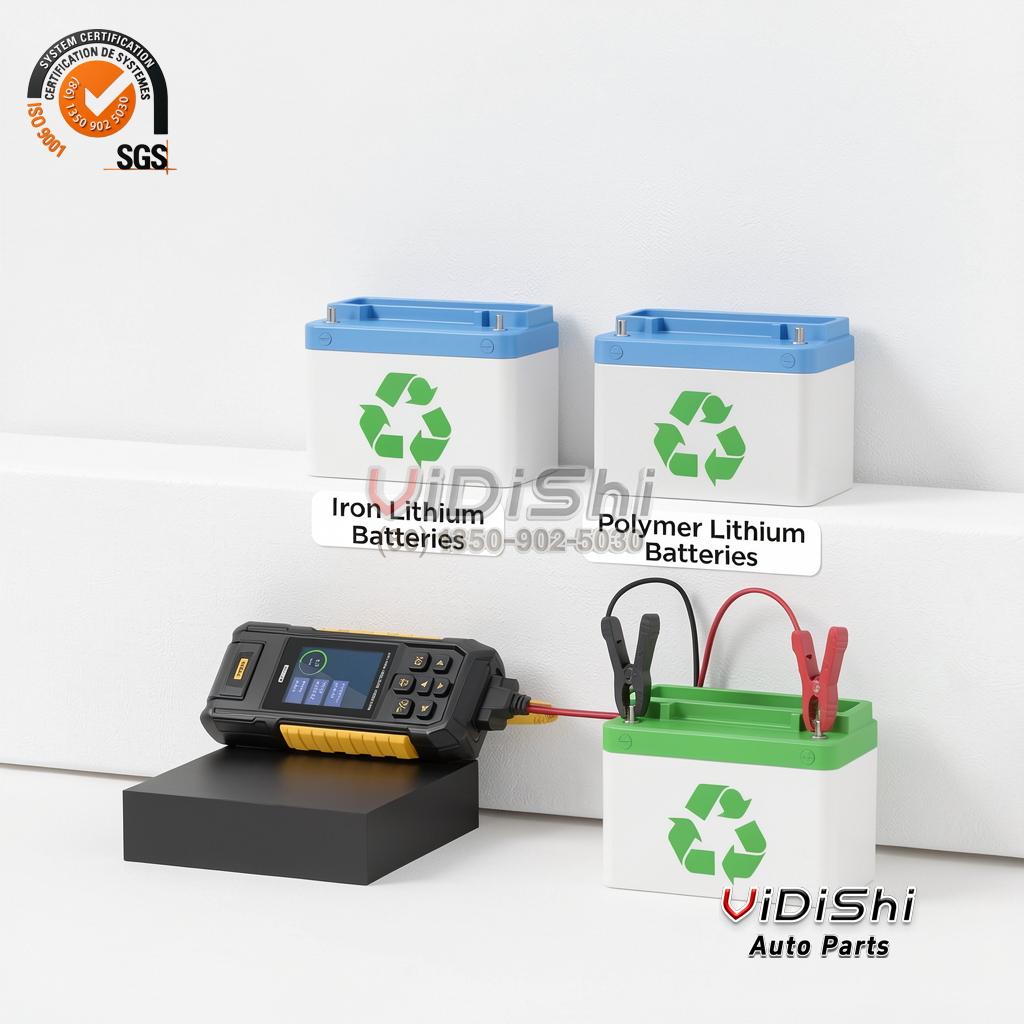

Workshop note. The BT960 supports lithium battery testing for iron lithium (LiFePO4), polymer lithium, and ternary lithium chemistries, in addition to lead-acid types.

Workshop note. Its CCA test range spans 30-2000, with rating entries reaching 2500 for IEC, 3000 for EN, 2500 for DIN, and 300AH for GB.

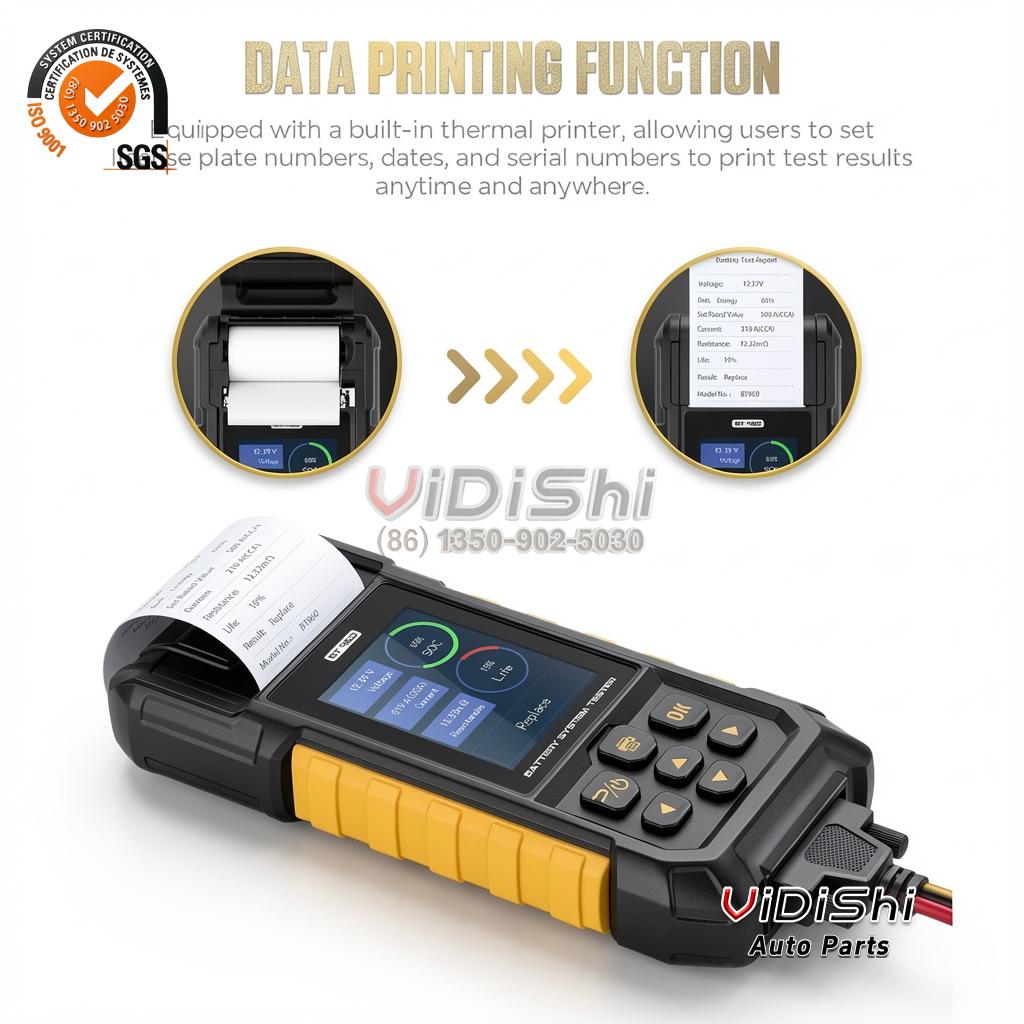

Workshop note. The BT960 integrates a built-in thermal printer, leakage-current monitoring with a dedicated clamp, and real-time temperature tracking.

The engineering notes above compile verified reference, material and application data for aftermarket battery tester and compatible battery tester.

Quality assurance

Inspection runs on an AQL sampling plan: incoming material, in-process checkpoints and a final release check are recorded on the batch sheet.

After-sales & warranty

12 Months limited warranty against manufacturing defects. Coverage applies to correctly installed units; keep the batch date code so any claim is processed against its inspection record. Clamp, printer and firmware questions are answered by our team before dispatch.

Why choose Vidishi Auto

Battery Tester — Battery Tester. Supplied under Vidishi Auto with batch traceability and trade-grade packing; volume pricing and private-label options are available on request. Battery testers and analysers are used for workshop and garage battery diagnostics on cars, motorcycles and light trucks.

Logistics & packing

We ship worldwide to distributors and garages from China, Dongguan. Each Battery Tester is packed in a single-unit export carton. Testers ship in foam-lined cases with clamps and cables protected. Tracked air or sea freight is arranged per order volume.

Bulk quantities of battery tester supplier and battery tester bulk order ship in mixed containers from China, Dongguan.

Cross-reference numbers

Catalog numbering for this Battery Tester: the primary reference is BT960. When a supplier catalog lists superseded or regional formats, match on the numeric core of the code rather than the prefix, then confirm the physical fit.

Catalog cross-references for battery tester catalog resolve to BT960.

Frequently asked questions

Compliance disclaimer

Vidishi Auto is an independent supplier. This is an aftermarket compatible replacement, not a genuine OEM part. Brand names are trademarks of their respective owners and are used only to identify fitment.

Trade & wholesale support

Wholesale terms are quoted per market: volume breaks, mixed-SKU containers and private-label options are all handled by the trade desk. Test-mode documentation and language-pack notes are available on request.

Trade desk replies with quotation, MOQ and lead time in one business day.

Enquiries about wholesale battery tester and battery tester price receive quotations within one business day.

Test modes & clamps

Battery testers are matched to the workshop bench; the test scope below is confirmed before dispatch.

• Pre-dispatch checks: the OE / reference number is matched against your old part before packing.

Installation and service notes for oem battery tester, auto battery tester and harbor freight battery tester are confirmed by our technical team before dispatch.

• Test modes and battery-chemistry scope follow the published listing.
• Clamp gauge, cable length and printer option are confirmed with the quotation.

Workshop teams comparing battery tester for household batteries, battery tester cross reference and autool lithium ion receive the pre-dispatch checklist with the quotation.

• Units ship in foam-lined cases with clamps protected.

Installation and service notes for 18650 capacity tester and battery capacity tester are confirmed by our technical team before dispatch.

Printer & data notes

Result output options are matched to the workshop routine; the scope below is confirmed before dispatch.

• Configuration checks: the supplied configuration is confirmed against your order before dispatch; application covers BT960.
• Printer and result-output options follow the published listing.

Configuration and service notes for battery testers, car battery tester and charger wireless and battery tester for small batteries are confirmed by our technical team before dispatch.

• Result storage and export scope are confirmed with the quotation.
• Firmware revision notes are supplied exactly as published.

Workshop teams comparing lithium ion, 24v battery tester and battery internal resistance tester receive the configuration checklist with the quotation.

Clamp & cable options

Clamp and cable sets are matched to the battery size; the options below are confirmed before dispatch.

• Reference checks: the OE / reference number is matched against your old part before packing.
• Clamp gauge and cable length follow the published listing.

Application data for topdon battery tester, 12v battery tester and how to confirm battery tester fitment is confirmed against your specification before dispatch.

• Kelvin-clip and temperature-probe options are confirmed with the quotation.
• Replacement cables are quoted for workshop programs.

Engineering checks behind the 12v, cca tester and battery leak tester supply are completed before packing.
