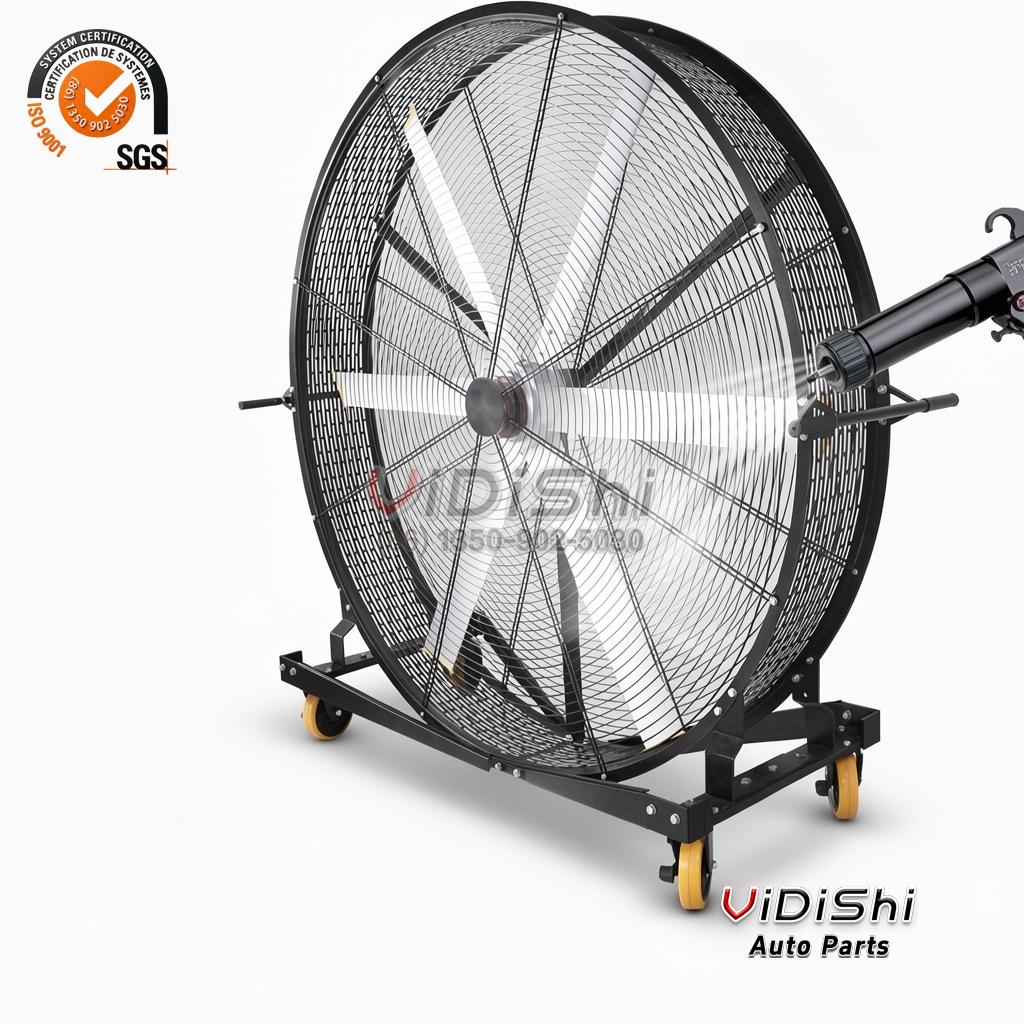

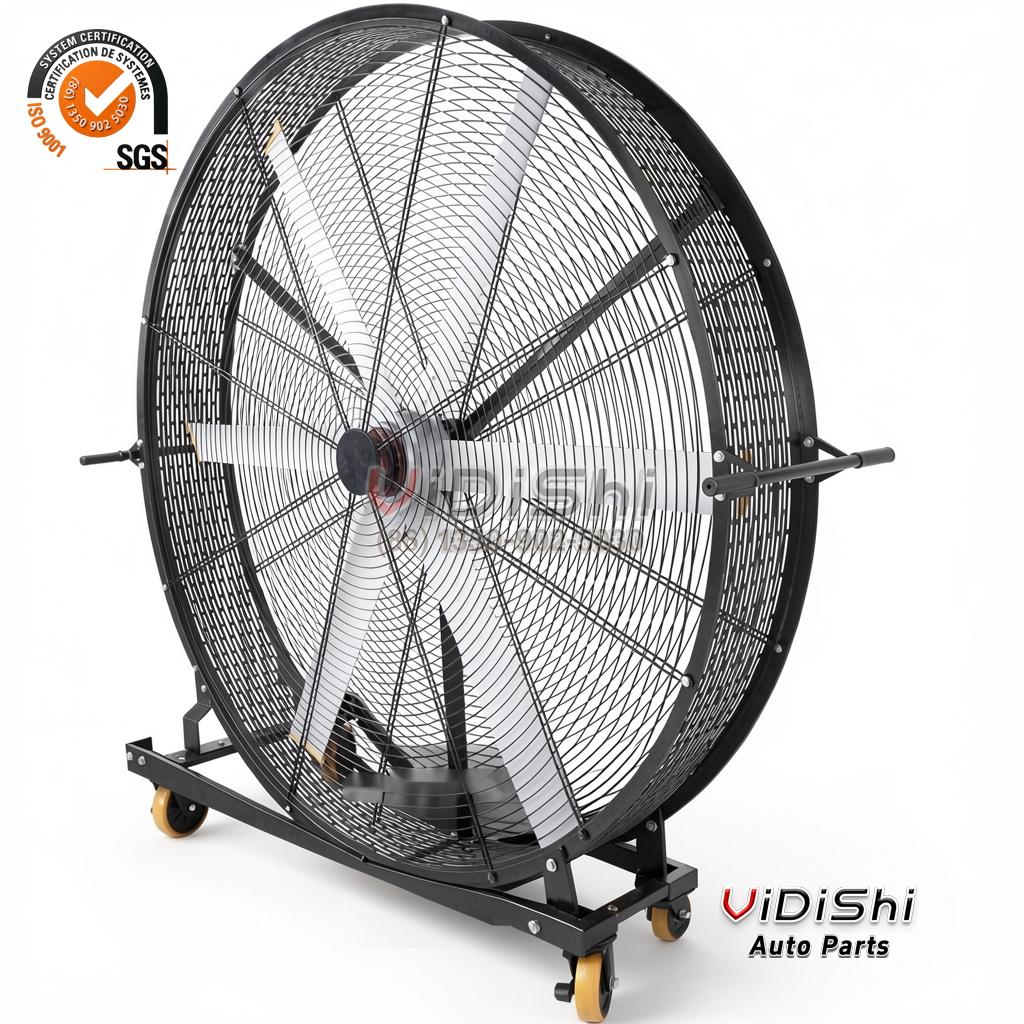

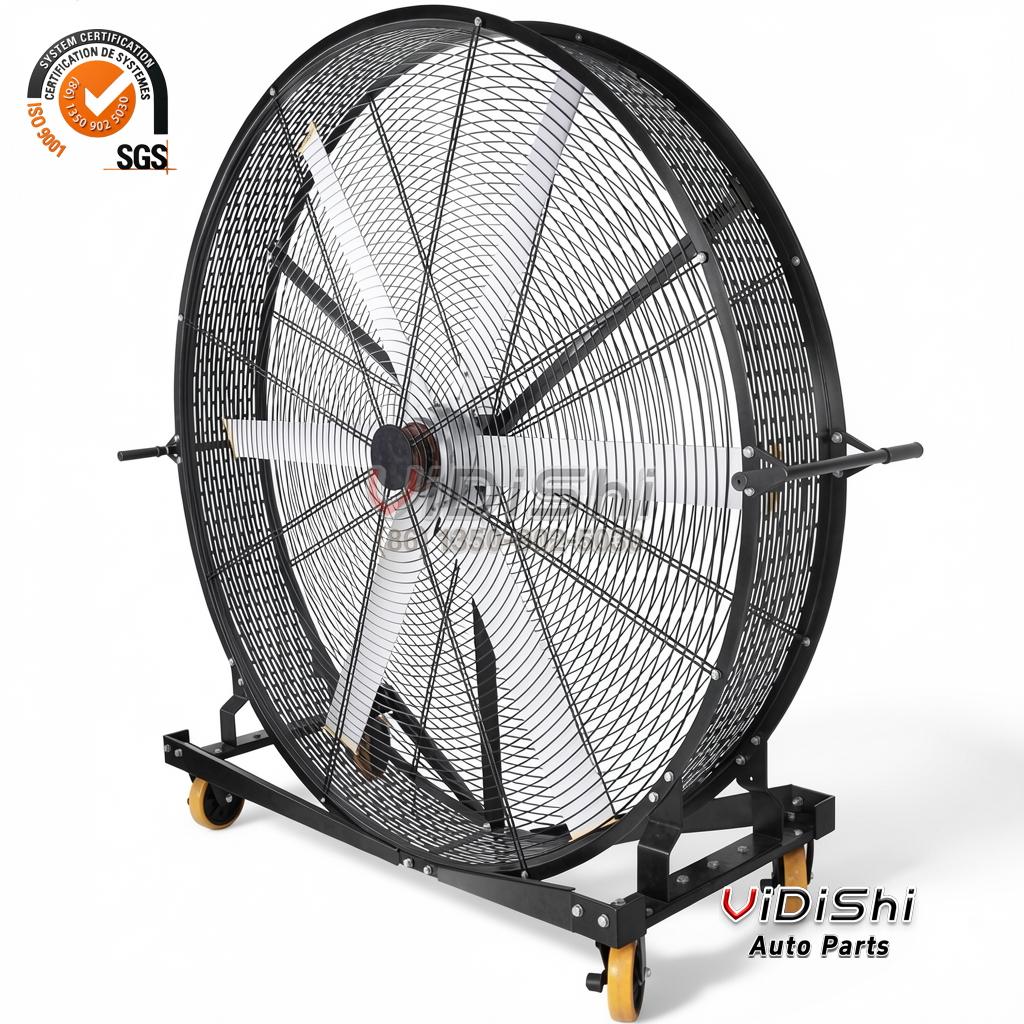

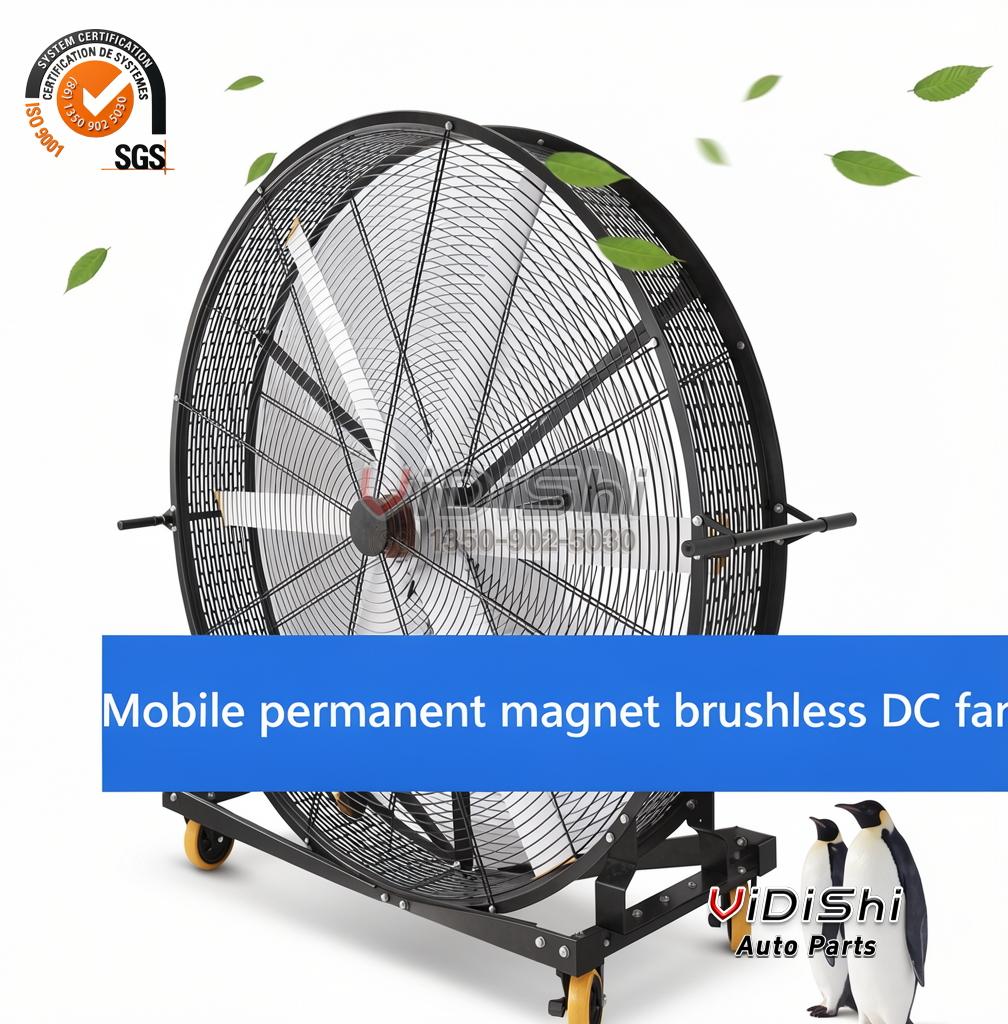

HL-KZV6I HVLS Fan 220V-380V 220V for large industrial spaces

Specifications

Will it fit my vehicle?

How to identify the correct unit: locate the reference number stamped on your original component or in the vehicle parts catalogue, then cross-check it against the number below before ordering. Trim and market variants exist for many applications, so the short check is worth the minute before checkout.

How to identify & confirm fitment in 4 steps

1. Locate the OE / reference number on your old part or in the vehicle parts catalogue.
2. Match it to HL-KZV6I shown on this page.
3. Send your VIN and engine code plate so our team runs an exact-fit check.
4. Receive fitment confirmation before we dispatch your order.

Cross-reference coverage for hvls fan fitment is listed above; confirm your VIN before ordering.

Overview & context

A direct-fit compatible replacement referenced by HL-KZV6I for the applications listed in the fitment block.

Key features

The strengths workshop buyers compare when searching pm brushless fan, industrial ceiling fan and warehouse ceiling fan are listed above.

Construction & materials

Built to the original equipment drawing, the HVLS Fan follows the same inspection checkpoints as the reference sample. Tolerances that affect installation are held to the drawing rather than adjusted on the bench.

• Surface treated to resist corrosion in road and workshop conditions.
• Dimensional check against the reference sample before packing.

Material and build choices answer the most common hvls fan replacement and hvls fan guide questions from workshop buyers.

Where it fits

The fitment block above lists the markets and model families this reference is stocked for, so buyers can match demand without re-checking every listing.

Engineering notes

Deep dive. Fault tracing on a big HVLS fan starts with listening, not dismantling. A hum with no rotation on 220V gear-motor models usually points to a weak start capacitor or a drive protection trip, while servo direct drive units more often show an inverter fault code instead. A rhythmic thumping means blade imbalance, loose hub bolts, or debris on a blade; a grinding rumble that persists when blades are turned by hand after power-off indicates worn support bearings. Weak airflow is rarely motor failure: it is usually the speed setting, reversed rotation, or blades pitched or mounted incorrectly.

Technical background. Installation of an HL-KZV6I class fan is structural work first and electrical work second. Suppliers of this class document a dedicated load-bearing hanger, an independent safety rope, and an anti-drop protection net, bolted into steelwork rated for the fan weight plus dynamic loads. Verify clear blade-tip clearance from roof trusses, lights, and cables before drilling. Large 6-7 m models expect roughly 380V three phase while mid sizes accept 220V, so confirm the circuit, breaker size, and VFD parameter set before hoisting. Never hang from purlins or retrofit brackets not specified by the manufacturer.

Technical background. Maintenance on permanent-magnet direct drive HVLS fans is mostly inspection rather than lubrication, since these motors are documented as oil-free and maintenance-free in normal service. Schedule quarterly checks of hub bolts, blade surface cracks, safety rope tension, and anti-drop net condition; clean dust off blades because buildup creates imbalance and noise. Annually, test insulation resistance to earth with a 500V megger and confirm earth continuity. After any storm or roof work, re-torque fasteners. Keep the drive cabinet ventilated and dust-free, because heat is what ages capacitors and drive electronics fastest.

Technical background. Against rows of pedestal or wall fans, one HVLS unit is documented replacing up to 20 floor fans while covering a far larger swept area at a fraction of the running power. The low-speed column of air also mixes stratified warm air from the ceiling in winter, which is how HVLS lines claim heating energy reductions of up to 30 percent. Buyers comparing models should weigh diameter and coverage per unit against their truss layout, and decide between servo direct drive motors, which need no gearbox maintenance, and geared motor plus inverter packages that cost less upfront.

Deep dive. On certification, HVLS product lines in this segment are documented carrying CE marks, and several Chinese manufacturers reference ISO9001 quality management and CCC listing for the domestic market; RoHS claims also appear on some lines. Because a suspended multi-meter fan is a safety product as much as a ventilation product, a buyer should ask for the actual certificate scope and for dynamic balance and blade strength test reports rather than accepting logos. Electrical safety testing at 50/60 Hz with documented dielectric and insulation values is the norm for drives shipped into EU industrial plants.

Technical background. The documented buyer profile spans plant managers of machining halls and assembly plants, logistics and sorting center operators, car showroom and 4S dealership facility teams, and managers of stations, gymnasiums, and exhibition halls. It fits high-bay spaces of roughly 4 m clear height and upward, where air conditioning is uneconomical but people and goods still need moving air. Agricultural and warehouse buyers use it to keep floors dry and reduce condensation. Distributors serving facility-management tenders value the single-unit-per-large-zone economics this fan class is documented for.

Deep dive. HVLS units concentrate wear in a few service points: the hub bearing set, the blade-to-hub connection plates, the anti-drop safety device, and the suspension wire ropes. Bearings on direct-drive PMSM machines are typically sealed for life, so plan replacement around measured vibration or runout rather than fixed intervals. When a hub is opened for bearing work, replace the wire ropes and inspect the safety catcher at the same time, because both age with the same vibration cycles. Control boxes exposed to workshop dust should be resealed or swapped during the same outage window.

Field note. Blade sets three meters and larger are the main transport risk: airfoil extrusions with internal ribs resist bending but the leading edge can still deform if loads are point-bearing. Ship in full-width wooden crates with blades nested on soft edge supports, never clamped mid-span. Store crates flat on level dunnage, off wet concrete, and keep them in original orientation; standing a blade on its tip for weeks can set a permanent bow. Hub castings and control cabinets travel separately packed. Before unloading, check crate seals so condensation has not entered aluminum surfaces during winter transit.

Application context. Installation prep on a 220V-380V HVLS machine is structural before it is electrical. Confirm the mounting beam rating with a structural engineer, then stage a torque wrench sized for the hub bolts, a calibrated lift or scaffolding, fall-arrest gear, and a laser or plumb line to center the fan under the beam. Electricians need a phase-rotation meter for the 380V three-phase feed and an insulated-resistance tester before first energization. Torque marks on bolt heads give a fast post-install check. Keep blade-shim kits and spare safety cable clips on site, since gap corrections discovered at height are costly to redo.

Field note. In humid, dusty plants the fan is a season-spanning tool, not a summer accessory. Summer duty moves air continuously and the blade surface loads up with oil-borne dust, which slowly unbalances the rotor and raises vibration; wipe blades at each planned stop. In humid months the columnar airflow suppresses condensation on stored goods, but only if the fan runs long, low-speed cycles rather than short bursts. Winter, reverse or low-pitch operation pulls ceiling heat back down to the working plane, cutting stratification. Schedule the annual bearing and wire-rope inspection for the low-season shutdown when scaffolding access is easiest.

Deep dive. Multi-unit orders should be accepted against batch documentation, not marketing claims. For each production lot, request the rotor dynamic-balance report tied to serial numbers, torque records for the blade-to-hub joints, and wire-rope certificates with breaking-load data. Nameplate voltage must match the ordered 220V or 380V variant on every unit; a mixed batch is the most common receiving error. Agree in advance on an AQL sampling plan covering vibration run-up at rated speed and safety-device function. Reserve the right to audit the balancing bench calibration. Documented batches make warranty claims and spare-part matching straightforward years later.

Technical background. The 220V-380V naming hides the real trap: single-phase 220V units draw far more current for the same power, so cable sizing and breakers must follow the nameplate, not the kilowatt figure. Blade diameter must be matched to mounting height; a large wheel under a low roof leaves inadequate blade-to-floor clearance and unsafe reach zones, while an undersized wheel in a tall bay never stirs the floor layer. Confirm beam offset so blade tips clear rafters, lights, and sprinkler heads by the distance your insurer requires. Control-box firmware and remote HMI versions should also be pinned at ordering, since mixed generations complicate centralized speed control.

Workshop note. One 4.9-7.3 m HVLS unit is documented covering roughly 400-1,200 m2 of open floor, with manufacturer guidance to space units 30-40 m apart.

Workshop note. Servo direct drive HVLS models are documented at 39-45 dB(A) or lower at full speed, running on 5 or 6 magnesium-aluminum alloy blades.

Workshop note. HVLS stands for High Volume, Low Speed: large-diameter overhead fans in the 2.5-7.3 m class are documented moving 5,000-15,200 m3/min at only 50-120 rpm.

Supply note. Large HVLS models (about 4.9 m diameter and up) are documented with dual 220V/380V supply at 50/60 Hz, while smaller 2.5-4.2 m models run on 220V single phase.

Workshop note. Motor input in this class spans 0.35-1.5 kW, with permanent magnet synchronous (servo direct drive) motors or gear motors paired with variable frequency drives.

The engineering notes above compile verified reference, material and application data for aftermarket hvls fan and compatible hvls fan.

Quality assurance

Inspection runs on an AQL sampling plan: incoming material, in-process checkpoints and a final release check are recorded on the batch sheet.

After-sales & warranty

12 Months limited warranty against manufacturing defects. Coverage applies to correctly installed units; keep the batch date code so any claim is processed against its inspection record. Motor, gearbox and mounting questions are answered by our team before dispatch.

Why buyers pick Vidishi Auto

HVLS Fan — HVLS Fan. Supplied under Vidishi Auto with batch traceability and trade-grade packing; volume pricing and private-label options are available on request. HVLS fans are supplied for large-space air-movement programs in industrial and agricultural buildings.

Packing & delivery

We ship worldwide to distributors and garages from China, Dongguan. Each HVLS Fan is packed in a single-unit export carton. Fans ship with blades foam-protected and motors sealed in export crates. Tracked air or sea freight is arranged per order volume.

Bulk quantities of hvls fan supplier and hvls fan bulk order ship in mixed containers from China, Dongguan.

Catalog & cross-reference

Catalog numbering for this HVLS Fan: the primary reference is HL-KZV6I. When a supplier catalog lists superseded or regional formats, match on the numeric core of the code rather than the prefix, then confirm the physical fit.

Catalog cross-references for hvls fan catalog resolve to HL-KZV6I.

Frequently asked questions

Compliance disclaimer

Vidishi Auto is an independent supplier. This is an aftermarket compatible replacement, not a genuine OEM part. Brand names are trademarks of their respective owners and are used only to identify fitment.

B2B support

Wholesale terms are quoted per market: volume breaks, mixed-SKU containers and private-label options are all handled by the trade desk. Blade-pitch, speed and mounting-height documentation is available on request.

Trade desk replies with quotation, MOQ and lead time in one business day.

Enquiries about wholesale hvls fan and hvls fan price receive quotations within one business day.

Blade & mounting checks

Large-diameter fans are matched to the building height; the mounting scope below is confirmed before dispatch.

• Pre-dispatch checks: the OE / reference number is matched against your old part before packing.

Installation and service notes for oem hvls fan, hvls fan for dairy farm and hvls fan cross reference are confirmed by our technical team before dispatch.

• Diameter and blade count are confirmed against your building plan before dispatch.
• Mounting-height and speed data follow the published listing.

Workshop teams comparing best hvls fan for aftermarket, 220v 380v and pmsm large fan receive the pre-dispatch checklist with the quotation.

• Blades are foam-protected and motors sealed in export crates.

Installation and service notes for large industrial fan are confirmed by our technical team before dispatch.

Speed & control notes

Fan speed is matched to the space; the control scope below is confirmed before dispatch.

• Configuration checks: the supplied configuration is confirmed against your order before dispatch.
• Speed steps and control options follow the published listing.

Configuration and service notes for envira-north systems hvls fans, why upgrade hvls fan and 220v 380v hvls are confirmed by our technical team before dispatch.

• Gearbox and motor service notes are confirmed with the quotation.
• Blade balancing checks are completed before crating.

Workshop teams comparing brushless dc large fan and permanent magnet brushless fan receive the configuration checklist with the quotation.
