HTL Y1113 Brake Line Double Flaring Tool Kit 45 and 37 Degree
Double flaring tool kit for brake lines, covering 3/16, 1/4, 5/16 and 3/8 inch tube in 45 and 37 degree flare forms.
Original price was: $61.90.$46.40Current price is: $46.40.
100% Secure Checkout
Free Shipping Over $1099
Customer Satisfaction
International Shipping
Product Specifications
Product Details
Technical specifications
| Model | Y1113 |
|---|---|
| Product name | Brake pipe flaring tool |
| Flare forms | 45 degree and 37 degree |
| Tube sizes | 3/16 in (4.75 mm), 1/4 in (6.35 mm), 5/16 in (8 mm), 3/8 in |
| Tool type | Combined set |
| Material | High carbon steel |
| Power source | Hand |
| Packing | Hard case |
| Net weight | 5.2 kg |
| Warranty | 1 year |
| Packaged shipping weight | Not published by the manufacturer |
| Packaged shipping size (L x W x H) | Not published by the manufacturer |
| Supplied brand | Vidishi Auto |
| Reference design | HTL (reference only) |
| Origin status | Not a genuine HTL product – aftermarket compatibility part |
What this brake line flaring tool does
A flaring tool forms the cone-shaped end on a brake pipe so the union can seal against the fitting. Double flaring folds the tube end back on itself before forming the cone, which gives a thicker sealing face than a single flare and is the form most brake systems use.
Supplied under the Vidishi Auto brand as a compatible replacement referencing HTL, this unit is aimed at distributors, workshops and fleet buyers who need a repeatable, documented part.
Why choose this unit
- Forms the double flare that most brake fittings are designed to seal against
- Covers four tube sizes from 3/16 to 3/8 inch in one kit
- Includes both 45 degree and 37 degree flare forms
- High carbon steel dies hold their form across repeated flares
- Hand powered, so the flare can be formed on the vehicle
Compatibility & fitment
The kit covers 3/16, 1/4, 5/16 and 3/8 inch tube, which takes in the brake line sizes used on passenger cars and light commercial vehicles. The flare angle has to match the fitting: a 45 degree flare will not seal in a 37 degree seat, so both forms are included.
Confirm the flare form your fittings use before forming the end. A 45 degree flare in a 37 degree seat will not seal, and the mismatch is not visible once the union is tightened.
How it works

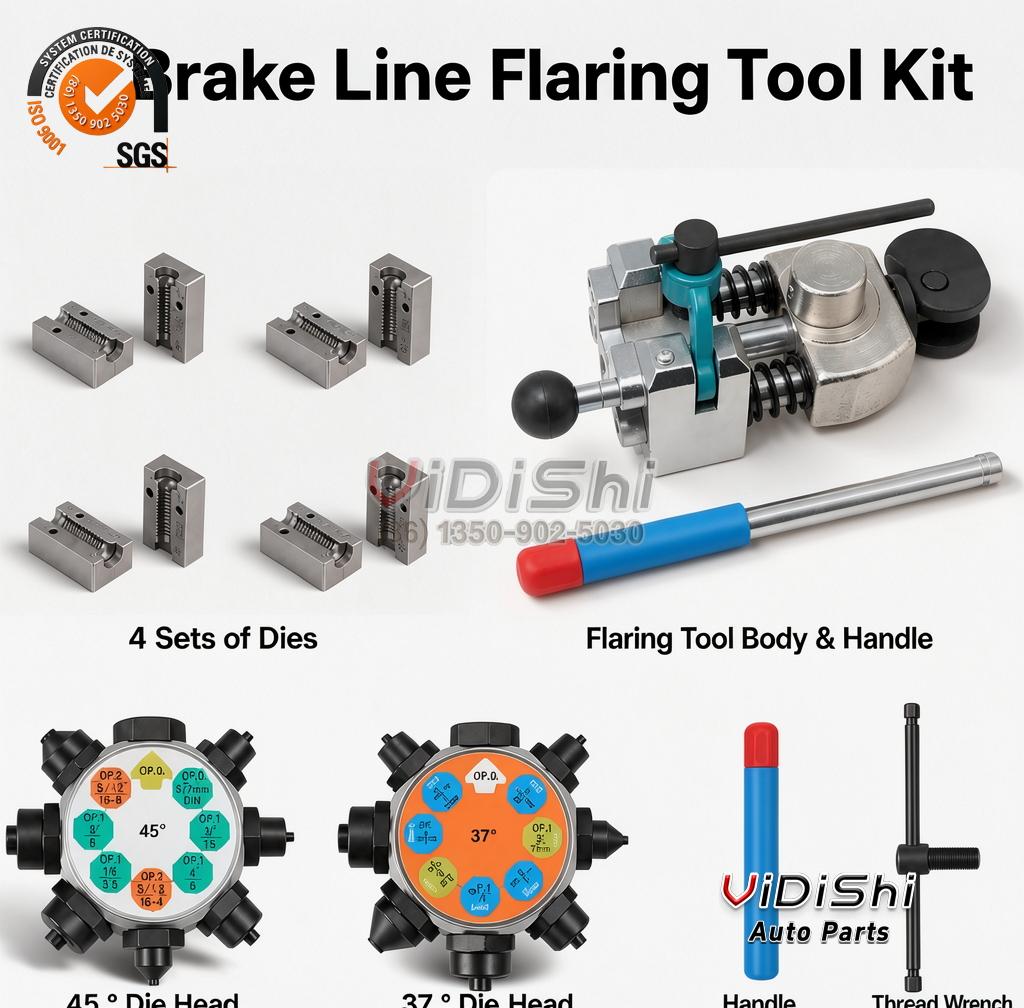

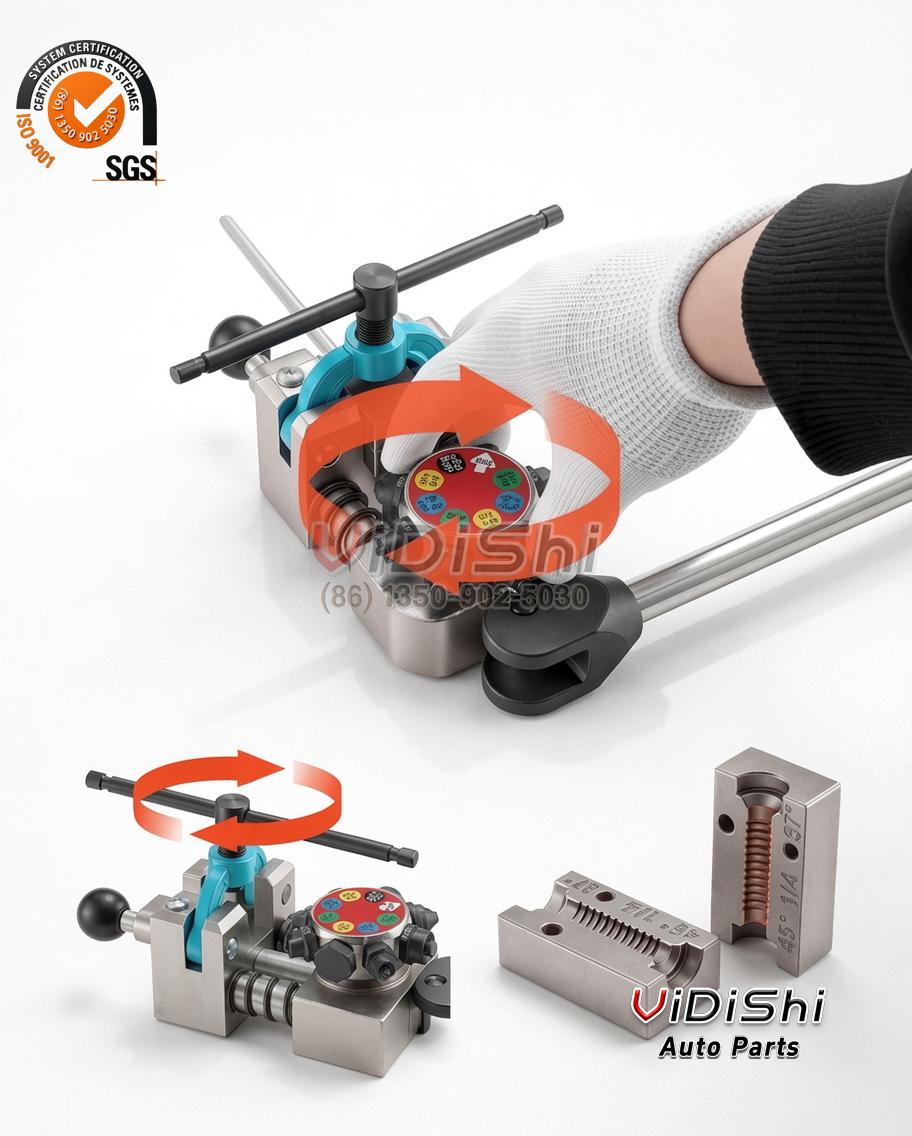

The die blocks clamp the tube while a forming cone is driven into the end. For a double flare the tube end is first pushed in to fold it back, then the cone forms the folded end into the finished flare, which is why the wall ends up double thickness where it seals.
Installation steps
- Cut the tube square and deburr the inside and outside of the end.
- Clamp the tube in the die with the end flush to the gauge on the block.
- Drive the forming cone in to fold the tube end back for the double flare.
- Finish with the flare cone, then check the flare face is even before fitting.
Safety & certifications
Brake line work is safety critical: a flare that leaks will not hold hydraulic pressure. The tool is hand powered and made of high carbon steel; wear gloves, keep the tube square in the die, and pressure test the line before putting the vehicle back into service.
Typical use cases
- Brake line repair on passenger cars
- Light commercial vehicle brake pipe replacement
- Fabricating replacement hard lines in a workshop
- Restoration work where the original line has to be remade
Wholesale & B2B supply
We supply HTL Y1113 Brake Pipe Double Flaring Tool Kit 45 and 37 Degree in wholesale quantities (MOQ 10 sets) for distributors, workshops and fleet operators. HTL, Vidishi Auto units ship in export cartons and can be OEM/ODM labelled.
Request tiered pricing for container or pallet orders, and share your target volume so we can quote MOQ-based pricing.
How it compares
Against a single flaring tool, this kit forms the double flare that most brake fittings are designed to seal against, and it covers four tube sizes rather than one. It is a hand tool, so it trades speed for a portable set that works on the vehicle without a power supply.
Troubleshooting
- Uneven flare – the tube was not clamped square or flush in the die
- Cracked flare – the tube end was not deburred or was work hardened
- Weeping union – the flare angle does not match the fitting seat
Maintenance
- Keep the dies clean and lightly oiled to prevent rust.

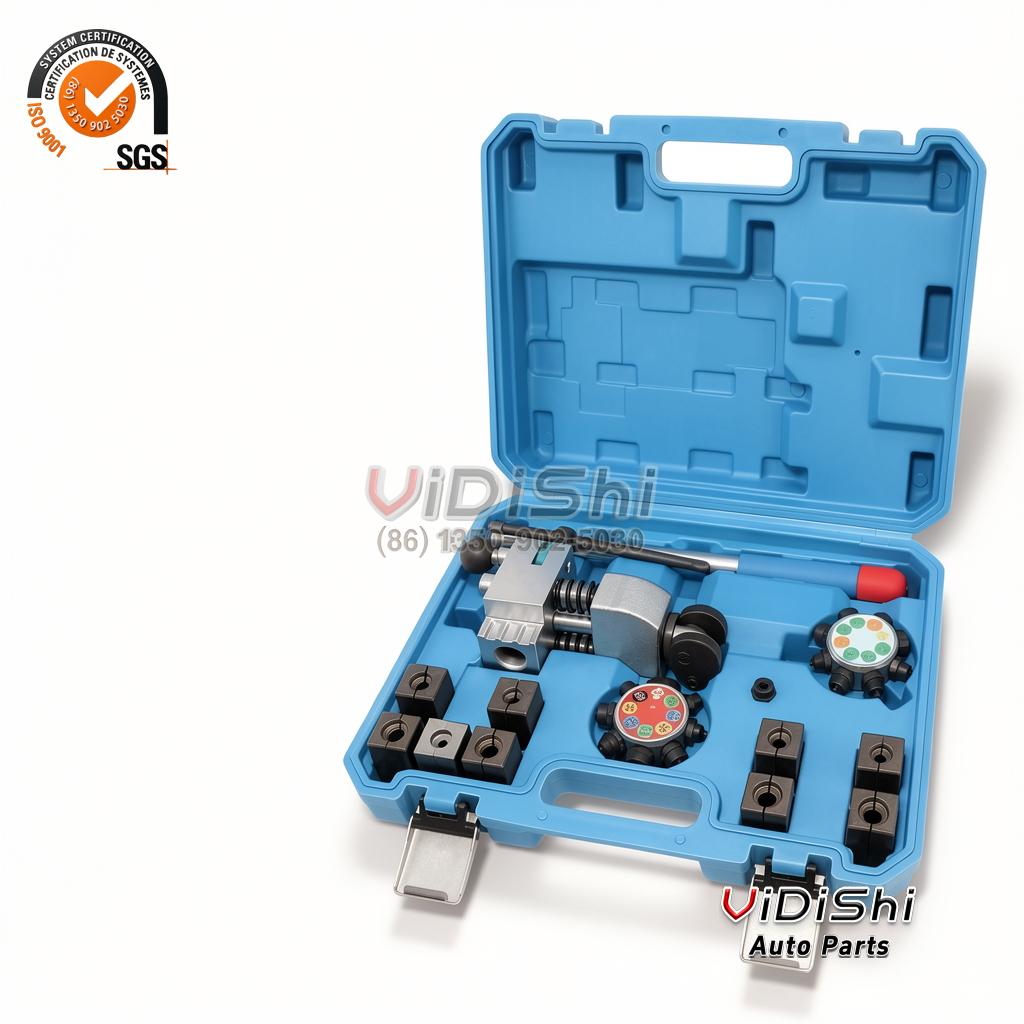

- Store the set in the hard case so the die blocks are not damaged.
- Check the die faces for burrs before each job; a damaged die marks the flare.
Frequently asked questions
Is this a genuine HTL product?
No. It is supplied under the Vidishi Auto brand as a compatible replacement referencing HTL. We do not claim to be an authorized HTL dealer.
What exactly is the htl-y1113-brake-flaring-tool?
It is a brake line flaring tool. The listed specification covers model Y1113, product name Brake pipe flaring tool, flare forms 45 degree and 37 degree. Values the source did not publish are marked Not published in the specification table rather than estimated.
Can I order the htl-y1113-brake-flaring-tool wholesale?
Yes. The minimum order quantity is 10 sets. Contact us on WhatsApp with the SKU and your quantity for tiered pricing on container or pallet orders.
What warranty comes with the htl-y1113-brake-flaring-tool?
The warranty is 1 year as supplied by the published data.
How do I confirm the htl-y1113-brake-flaring-tool fits my application?
Confirm the tube outside diameter and the flare angle your fittings use (45 or 37 degree), then check the data plate on the tool. If any point does not match, send us the details on WhatsApp and we will confirm before the order is placed.
What is included with the htl-y1113-brake-flaring-tool?
The product covers the brake line flaring tool as photographed. Accessories shown in the images are part of the set as supplied; anything not shown is not included, and we confirm the contents with you on WhatsApp before dispatch.
What is the packaged shipping weight of the htl-y1113-brake-flaring-tool?
The packaged shipping weight and carton size are not published by the manufacturer, so they are marked Not published in the specification table. We confirm the actual carton details on the quotation rather than estimating them.
How is the htl-y1113-brake-flaring-tool shipped and supported?
Units ship in export cartons suitable for mixed container loads, and technical support is available through the Vidishi Auto sales team on WhatsApp. Ask for the packing details with your quote so the freight can be costed accurately.
Warranty & support
Warranty is listed as 1 year by the published data. Contact Vidishi Auto on WhatsApp with the SKU and your tube sizes for a quotation.
Get a quote
Ready to order HTL Y1113 Brake Pipe Double Flaring Tool Kit 45 and 37 Degree (htl-y1113-brake-flaring-tool)? Send the SKU and your quantity to our team.
