iHSS60-36-30-31-EC-SC NEMA24 EtherCAT Integrated Stepper Motor
NEMA 24 integrated stepper motor referenced iHSS60-36-30-31-EC-SC, with the drive and control electronics built onto the motor and EtherCAT fieldbus connection.
Original price was: $125.00.$101.00Current price is: $101.00.
100% Secure Checkout
Free Shipping Over $1099
Customer Satisfaction
International Shipping
Product Specifications
Product Details
Technical specifications
| Reference | IHSS60-36-30-31-EC-SC |
|---|---|
| Frame size | NEMA 24 |
| Supply voltage | 36 VDC |
| Phase current | 5 A |
| Rated torque | 3 Nm |
| Fieldbus | EtherCAT |
| Feedback | Encoder |
| Brake | Not published by the manufacturer |
| Protection | Not published |
| Warranty | Not published |
| Packaged shipping weight | Not published by the manufacturer |
| Packaged shipping size (L x W x H) | Not published by the manufacturer |
| Supplied brand | Vidishi Auto |
What this integrated stepper motor does
An integrated stepper motor carries the drive stage on the motor body, so the cabinet only needs a power feed and a fieldbus line instead of a drive module per axis. On a machine with several axes that removes a shelf of drives and the long motor cables that go with them, which is where the wiring saving comes from.
Supplied under the Vidishi Auto brand, this unit is aimed at distributors, workshops and fleet buyers who need a repeatable, documented part.
Why choose this unit
- Drive electronics on the motor remove the per-axis drive module from the cabinet
- EtherCAT connection ties the axis into a standard industrial fieldbus

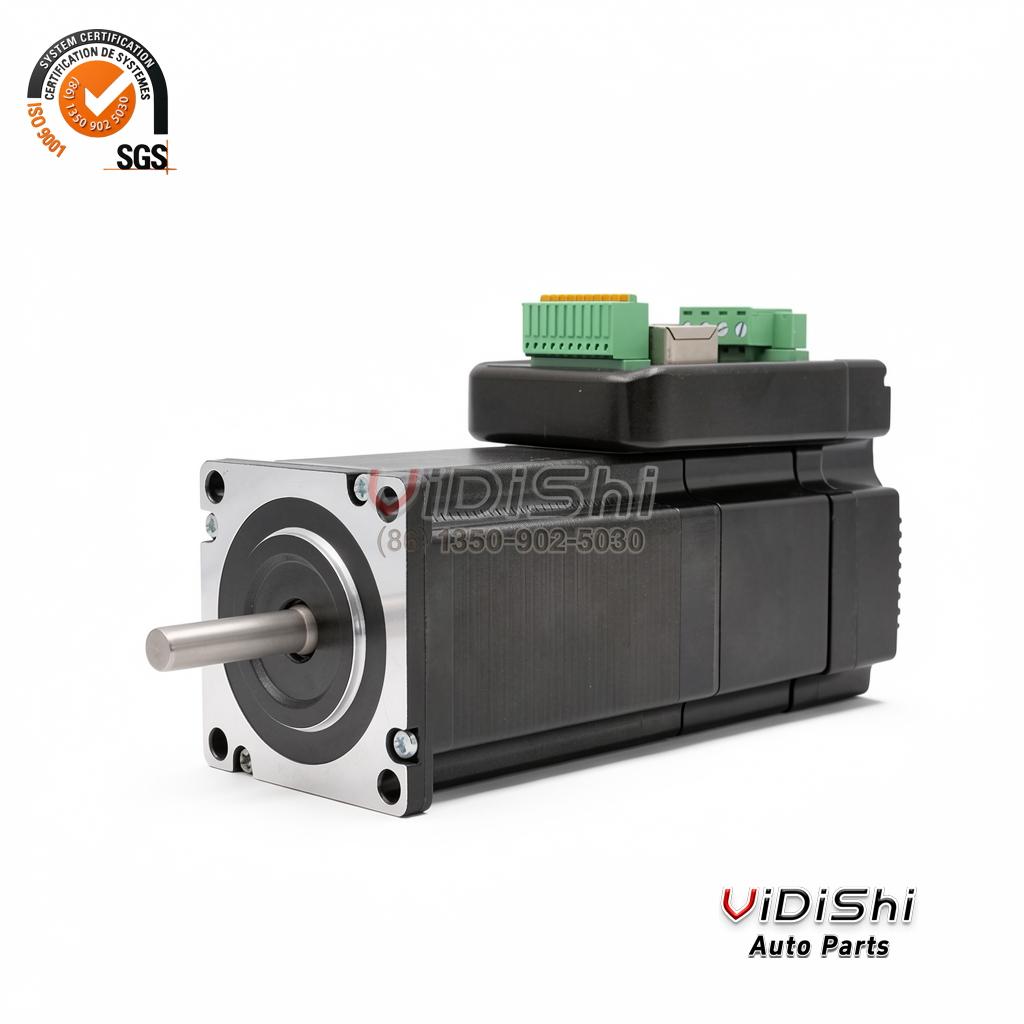

- Encoder feedback lets the drive detect a lost step
- 3 Nm rated output from a NEMA 24 frame
- Single power and bus cable per axis instead of long motor cabling
Compatibility & fitment
The motor is referenced iHSS60-36-30-31-EC-SC and is specified for a 36 VDC supply at 5 A phase current with a 3 Nm rating. The EtherCAT suffix means the master controller has to speak EtherCAT, and the mechanical fit depends on the NEMA 24 flange, the shaft diameter and the length of the motor body on your machine.
Confirm your controller speaks EtherCAT and your supply is 36 VDC, then check the NEMA 24 flange, shaft and body length against your mount. A DC or analogue-step controller cannot drive this bus-connected motor.
How it works
The drive on the motor body takes power and command from the bus and switches the windings directly, so current loops that used to run over long motor cables now happen on the motor itself. The encoder feeds position back into the same electronics, which is what allows the drive to detect a lost step rather than simply continuing to count.
Installation steps
- Mount the motor on the machine flange and couple the shaft without side load.

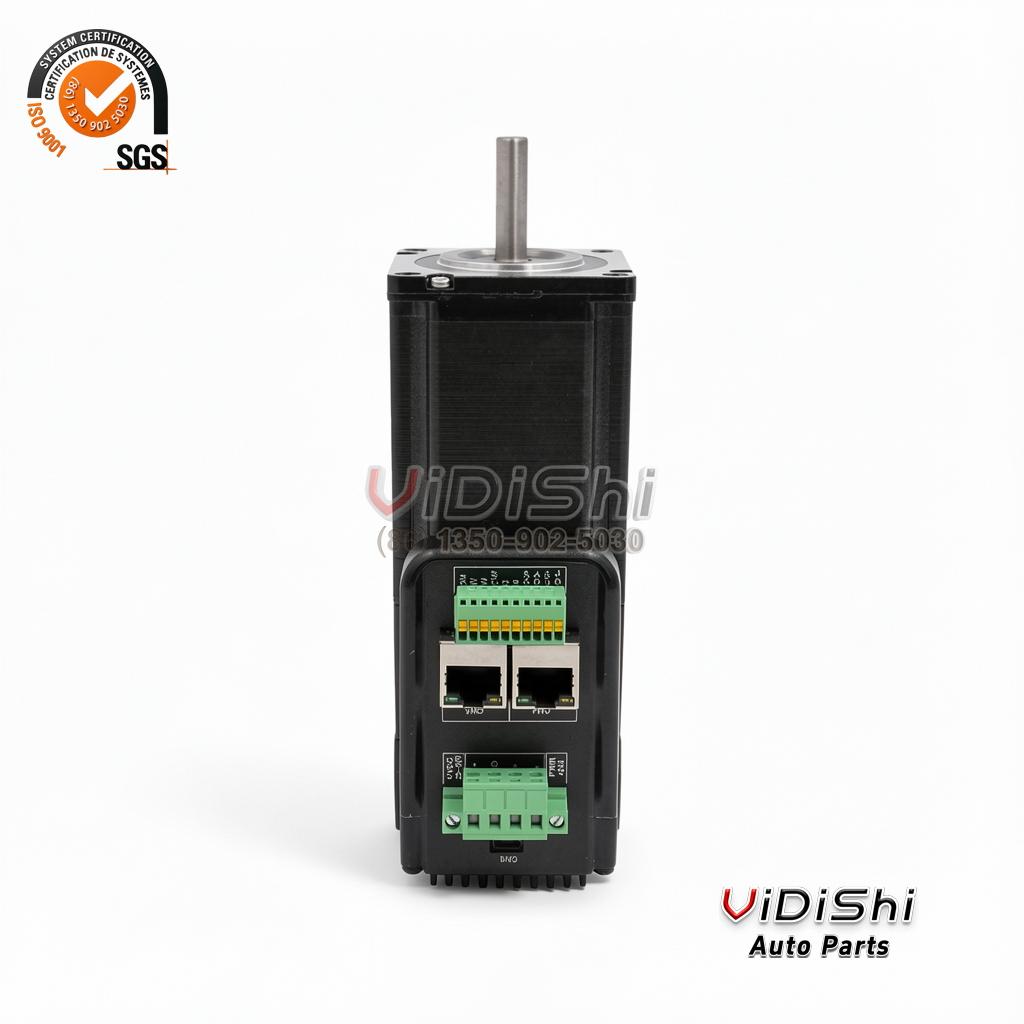

- Wire the fused 36 VDC supply and the EtherCAT line to the ports on the housing.
- Add the axis in the master configuration with the device profile from the seller.
- Run a low speed test move and confirm the encoder position before going to full speed.
Safety & certifications
A stepper holding position can move the instant the enable is released, so the machine guards and the stop circuit must be proved before power-up. This unit carries no published warranty; confirm the terms with sales before ordering, and the supply must be fused at the figure the seller specifies.
Typical use cases
- Multi-axis machine builds using EtherCAT
- Replacing separate drive and motor cabinets
- Indexing and positioning stations
- Retrofit of older machine axes
Wholesale & B2B supply
We supply iHSS60 NEMA24 EtherCAT Integrated Stepper Motor 36VDC 5A 3Nm in wholesale quantities (MOQ 1 set) for distributors, workshops and fleet operators. Vidishi Auto units ship in export cartons and can be OEM/ODM labelled.
Request tiered pricing for container or pallet orders, and share your target volume so we can quote MOQ-based pricing.
How it compares

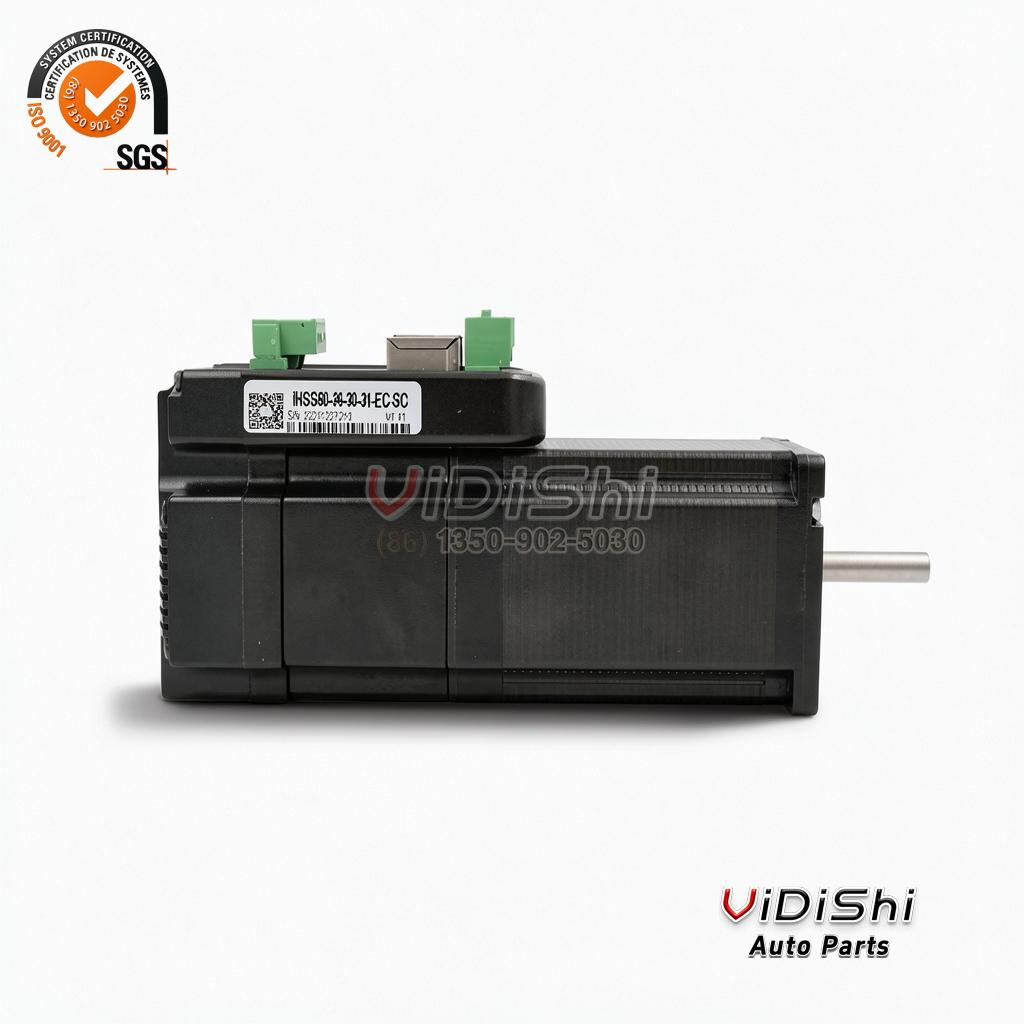

Against a separate drive and motor, an integrated motor saves cabinet space and motor cabling but puts the electronics on a hot, vibrating body. Against a servo, a stepper is cheaper per axis and holds position without hunting, at the cost of losing torque abruptly if a step is missed. The reference breaks down as iHSS60 (NEMA 24 integrated series), 36 (36 VDC supply), 30 (3.0 Nm), 31 (5 A), EC (EtherCAT) and SC (encoder), so the suffix string on the label is what identifies the exact build.
Troubleshooting
- Motor not on the bus – check the EtherCAT line, the addressing and the supply
- Motor stalls under load – the acceleration or the load exceeds the 3 Nm rating
- Housing running hot – steppers run hot by design; check the duty and the ambient
Maintenance

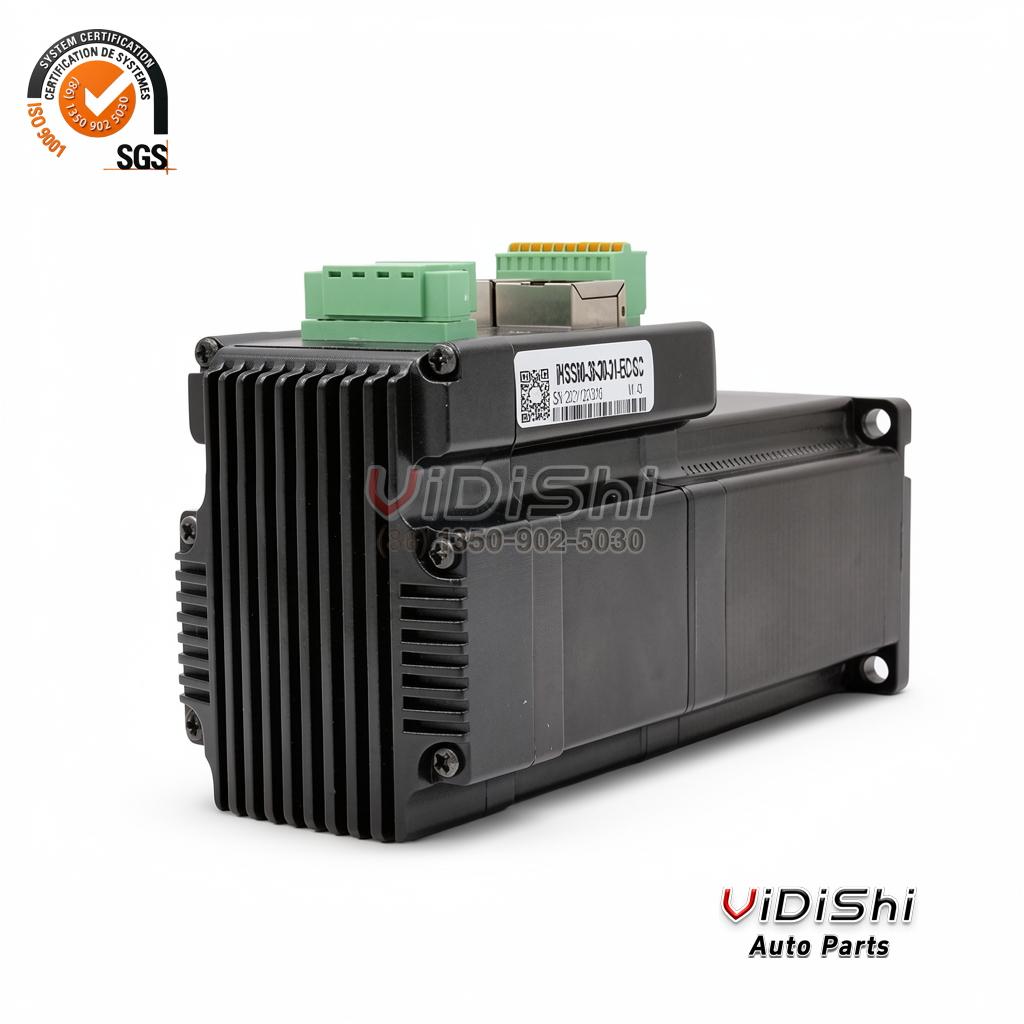

- Keep the housing fins clear so the drive can shed heat.
- Check the cable glands and the bus connector seating at each service.
- Confirm the encoder position against the machine datum after any coupling work.
Frequently asked questions
Is this an original-brand product?
No. It is supplied under the Vidishi Auto brand as a compatible aftermarket unit.
What exactly is the ihss60-36-30-31-ec-sc-stepper-motor?
It is a integrated stepper motor. The listed specification covers reference IHSS60-36-30-31-EC-SC, frame size NEMA 24, supply voltage 36 VDC. Values the source did not publish are marked Not published in the specification table rather than estimated.
Can I order the ihss60-36-30-31-ec-sc-stepper-motor wholesale?
Yes. The minimum order quantity is 1 set. Contact us on WhatsApp with the SKU and your quantity for tiered pricing on container or pallet orders.
What warranty comes with the ihss60-36-30-31-ec-sc-stepper-motor?
The warranty is not published by the manufacturer, so it is marked Not published here. Confirm the terms with our sales team before ordering.
How do I confirm the ihss60-36-30-31-ec-sc-stepper-motor fits my application?
Confirm your controller speaks ethercat and the supply is 36 vdc, then check the nema 24 flange, shaft and body length against the machine mount. If any point does not match, send us the details on WhatsApp and we will confirm before the order is placed.
What is included with the ihss60-36-30-31-ec-sc-stepper-motor?
The product covers the integrated stepper motor as photographed. Accessories shown in the images are part of the set as supplied; anything not shown is not included, and we confirm the contents with you on WhatsApp before dispatch.
What is the packaged shipping weight of the ihss60-36-30-31-ec-sc-stepper-motor?
The packaged shipping weight and carton size are not published by the manufacturer, so they are marked Not published in the specification table. We confirm the actual carton details on the quotation rather than estimating them.
How is the ihss60-36-30-31-ec-sc-stepper-motor shipped and supported?
Units ship in export cartons suitable for mixed container loads, and technical support is available through the Vidishi Auto sales team on WhatsApp. Ask for the packing details with your quote so the freight can be costed accurately.
Warranty & support
Warranty is not published by the manufacturer; confirm the terms with sales before ordering. Contact Vidishi Auto on WhatsApp with the SKU, your supply voltage and your master controller type.
Get a quote
Ready to order iHSS60 NEMA24 EtherCAT Integrated Stepper Motor 36VDC 5A 3Nm (ihss60-36-30-31-ec-sc-stepper-motor)? Send the SKU and your quantity to our team.
