SJ-EGR-13M EGR Cooler Kit for Chevy GMC Duramax L5P 6.6 L

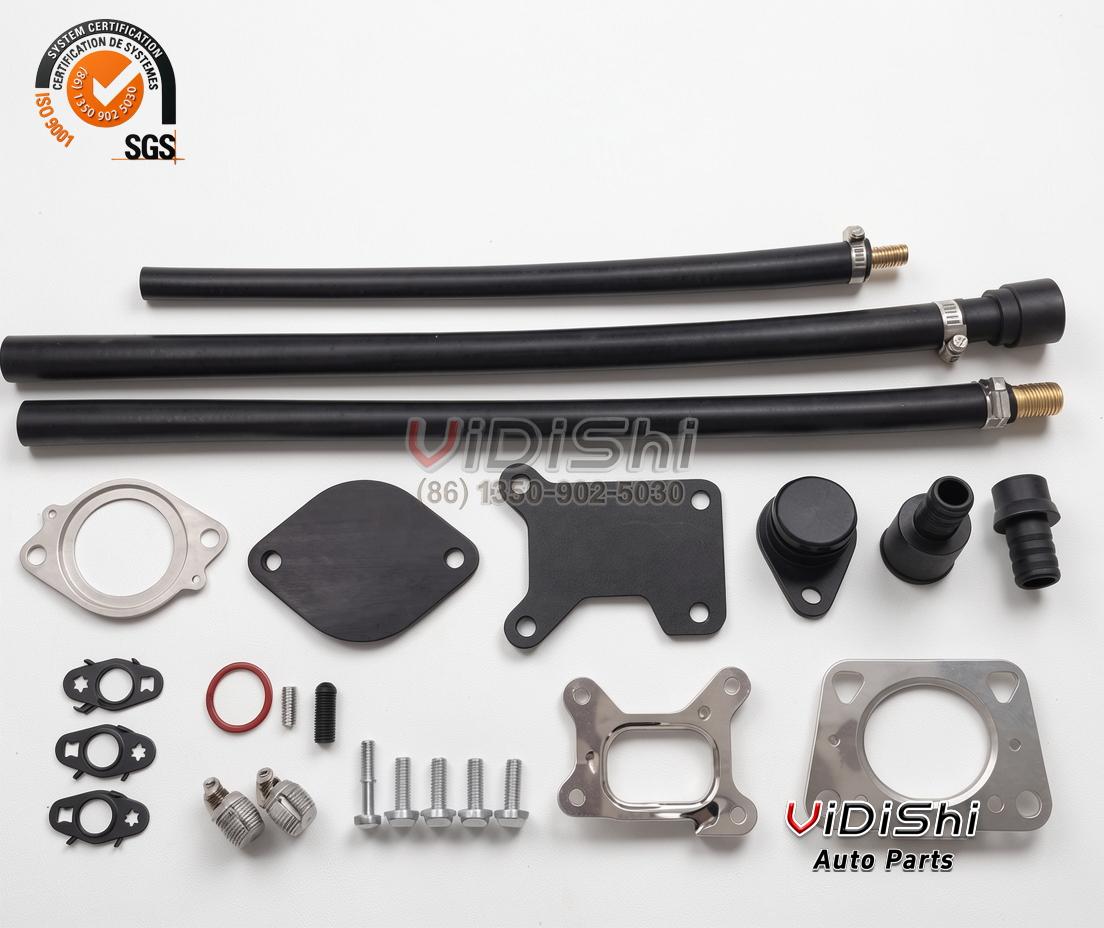

EGR valve and cooler service kit for the 2017-2023 6.6 L Duramax L5P, with block-off plates, bypass hoses, gaskets and fittings.
Original price was: $104.00.$52.00Current price is: $52.00.
100% Secure Checkout
Free Shipping Over $1099
Customer Satisfaction
International Shipping
Product Specifications
Product Details
Technical specifications
| Application | Chevrolet / GMC 6.6 L Duramax L5P |
|---|---|
| Model years | 2017-2023 |
| Engine size | 6.6 L diesel |
| Part reference | SJ-EGR-13M |
| Plate thickness | 1.5 mm |
| Welding | High temperature TIG |
| Material | Not published |
| Surface finish | Not published |
| Package | Carton |
| Warranty | 1 year |
| Packaged shipping weight | Not published by the manufacturer |
| Packaged shipping size (L x W x H) | Not published by the manufacturer |
| Supplied brand | Vidishi Auto |
What this EGR valve cooler kit does
The exhaust gas recirculation circuit on a modern diesel feeds exhaust back into the intake to cut combustion temperatures, and the cooler and valve in that circuit are a known service point on the 6.6 L Duramax L5P. This kit supplies the plates, hoses and gaskets used to close the circuit off and reroute the coolant at service time, with fittings TIG welded for high temperature work.
Supplied under the Vidishi Auto brand, this unit is aimed at distributors, workshops and fleet buyers who need a repeatable, documented part.
Why choose this unit
- Sized for the 2017-2023 6.6 L Duramax L5P rather than a universal plate set

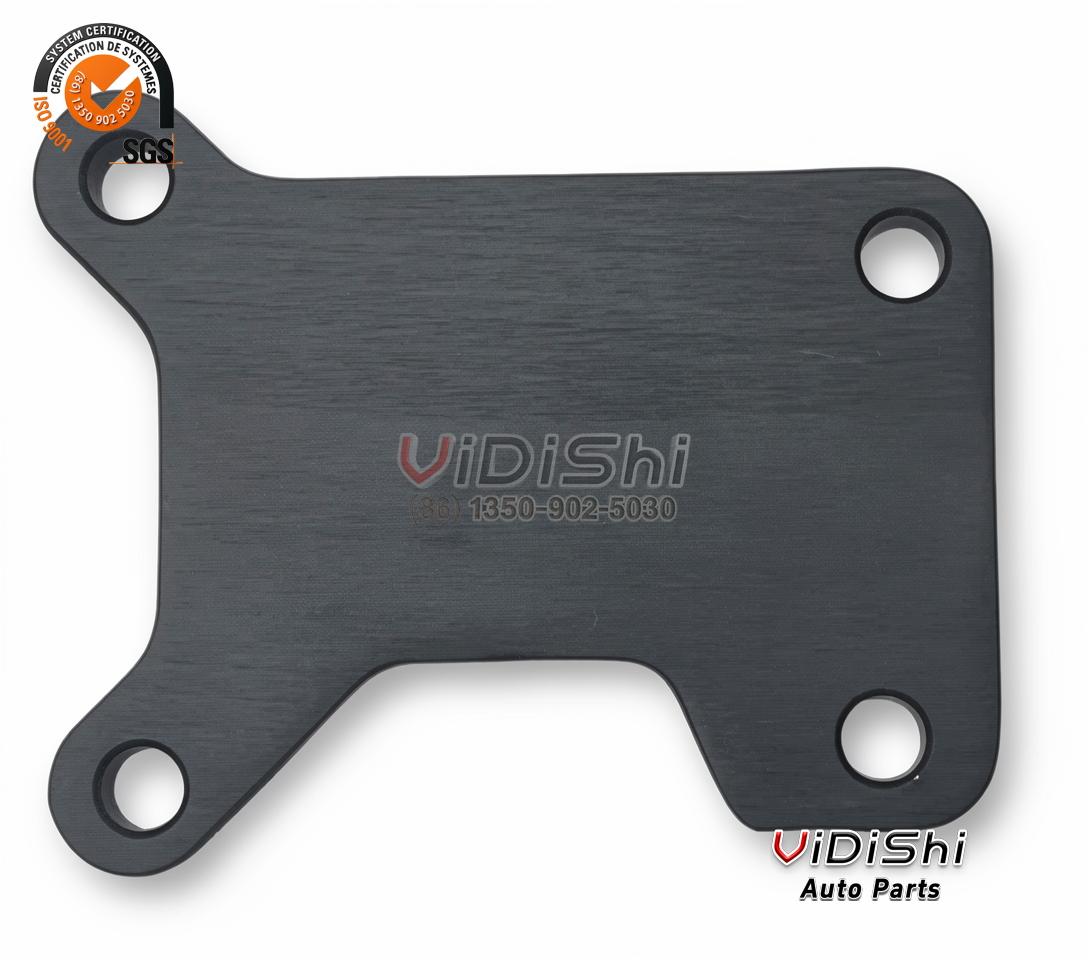

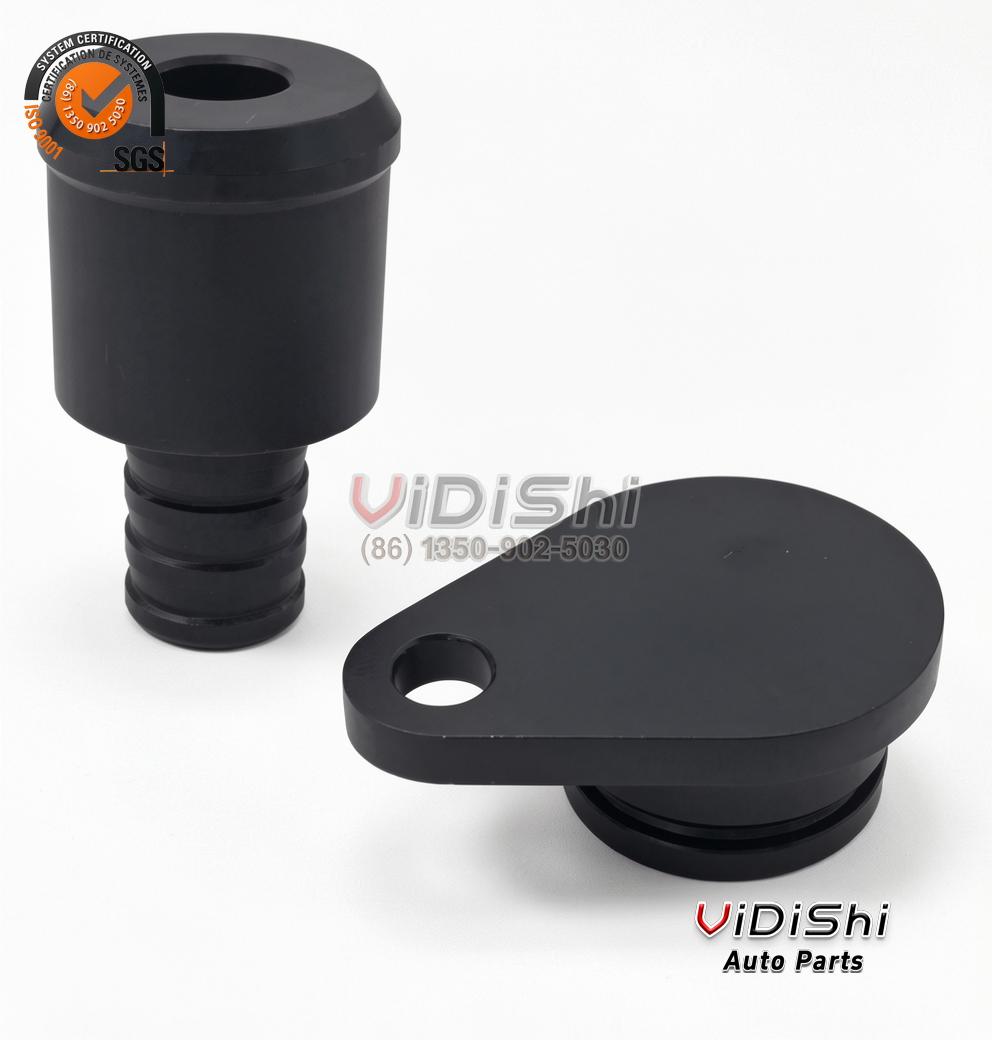

- Block-off plates cut to the L5P port layout for a sealed joint

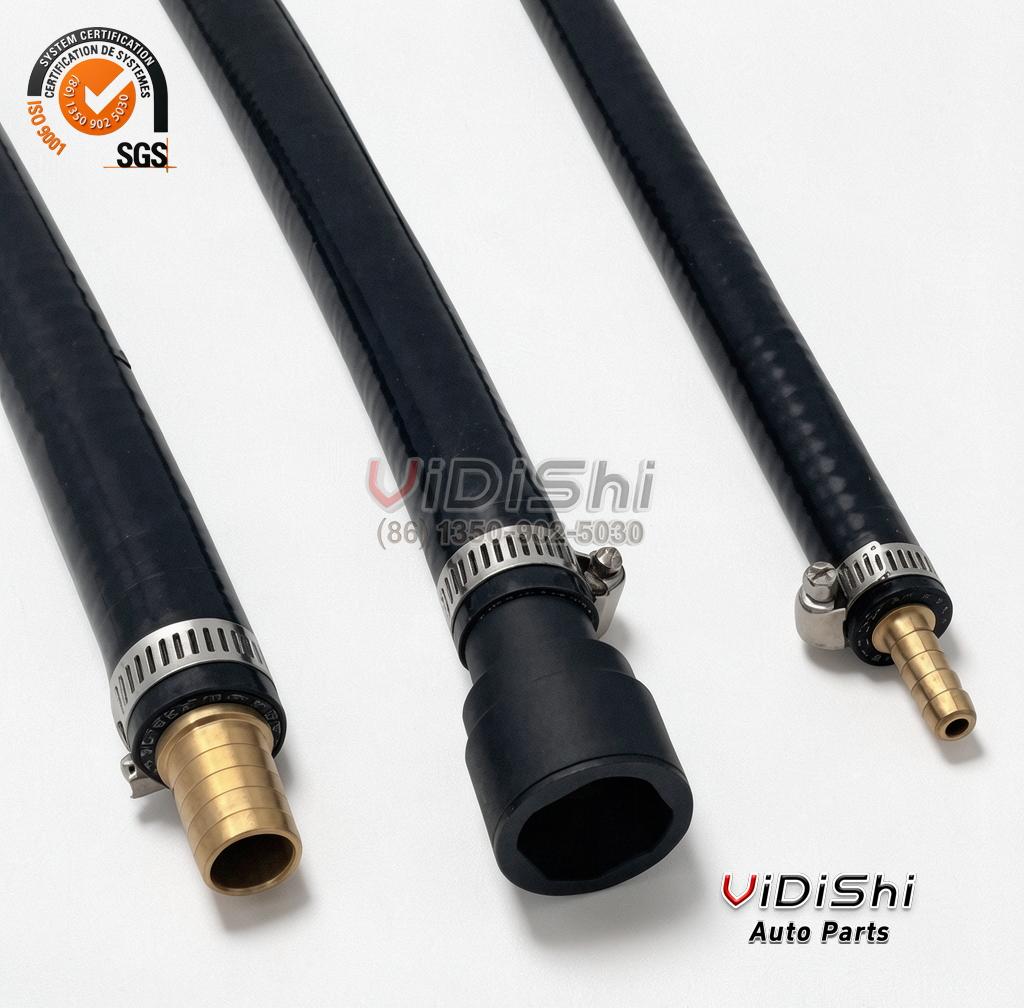

- Bypass hoses reroute the coolant around the cooler at service time
- Fittings TIG welded for high temperature exhaust work

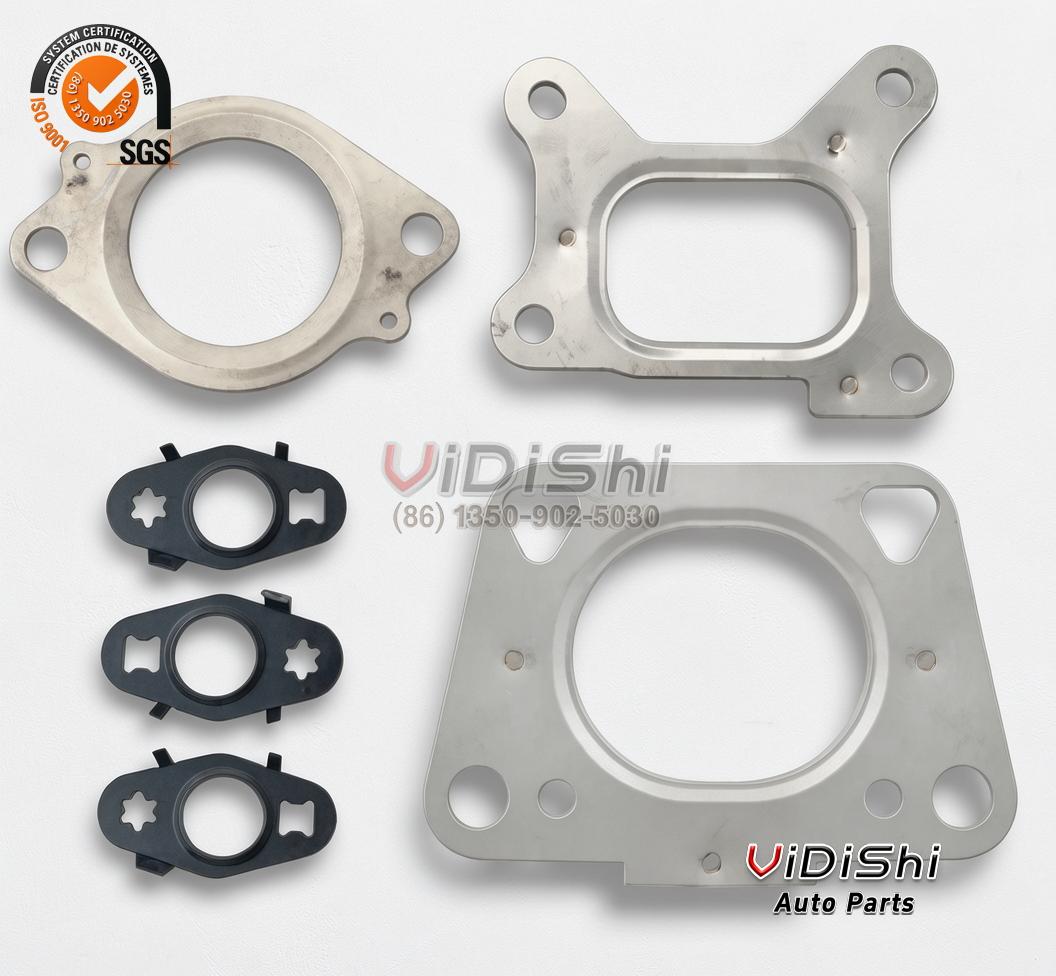

- Gasket set supplied so the joints can be made up with new seals
Compatibility & fitment
The kit is specified for the 2017 to 2023 6.6 L Duramax L5P in Chevrolet Silverado and GMC Sierra trucks. L5P is the 2017 onwards generation, so earlier LML and LGH engines take different plates, and the coolant hose routing has to match the truck’s build before the plates are fitted.
Confirm the engine generation is L5P (2017-2023) before ordering. Plates cut for the L5P will not seal on an LML engine, and emissions rules on deleted EGR circuits differ by region.
How it works
Closing the EGR circuit means blanking the exhaust feed into the intake and rerouting the coolant that used to pass through the cooler. The block-off plates seal the ports, the bypass hoses carry the coolant around the cooler, and the gaskets take up the casting irregularities so the joints stay tight as the engine heats and cools.
Installation steps
- Work on a cold engine and drain the coolant to below the EGR cooler level.
- Remove the EGR cooler and valve and clean the port faces.
- Fit the block-off plates with the new gaskets and torque evenly.
- Reroute the coolant with the bypass hoses, refill and bleed the circuit, then check for leaks.
Safety & certifications
Exhaust components stay hot long after the engine is stopped, so the work has to be done on a cold engine. Emissions equipment may not be legally removed or disabled in your region; check local rules before fitting, and the coolant circuit must be refilled and bled to the spec in the service manual.
Typical use cases
- L5P Duramax EGR cooler service
- Workshop rebuild of a 6.6 L Duramax intake side
- Fleet maintenance on 2017-2023 Silverado and Sierra diesels
- Preparing a truck for a cooler replacement where the circuit is being closed
Wholesale & B2B supply
We supply SJ-EGR-13M EGR Valve Cooler Delete Kit for Chevy GMC Duramax L5P in wholesale quantities (MOQ 1 set) for distributors, workshops and fleet operators. Vidishi Auto units ship in export cartons and can be OEM/ODM labelled.
Request tiered pricing for container or pallet orders, and share your target volume so we can quote MOQ-based pricing.
How it compares
Against replacing the EGR cooler with another cooler, this kit closes the circuit instead, which removes the cooler and valve from the coolant and exhaust path. The trade-off is regulatory: where emissions rules apply, a service replacement cooler is the compliant route.
Troubleshooting
- Weep at a plate joint – the port face was not cleaned or the gasket was misaligned
- Coolant loss after the job – the circuit was not bled correctly
- Check engine light – the ECU still expects EGR flow on some builds
Maintenance
- Recheck the plate bolts after the first heat cycles.
- Watch the coolant level for the first week after fitting.
- Inspect the bypass hose clamps at each service interval.
Frequently asked questions
Is this an original-brand product?
No. It is supplied under the Vidishi Auto brand as a compatible aftermarket unit.
What exactly is the sj-egr-13m-l5p-egr-cooler?
It is a EGR valve cooler kit. The listed specification covers application Chevrolet / GMC 6.6 L Duramax L5P, model years 2017-2023, engine size 6.6 L diesel. Values the source did not publish are marked Not published in the specification table rather than estimated.
Can I order the sj-egr-13m-l5p-egr-cooler wholesale?
Yes. The minimum order quantity is 1 set. Contact us on WhatsApp with the SKU and your quantity for tiered pricing on container or pallet orders.
What warranty comes with the sj-egr-13m-l5p-egr-cooler?
The warranty is 1 year as supplied by the published data.
How do I confirm the sj-egr-13m-l5p-egr-cooler fits my application?
Confirm your truck carries the 6.6 l duramax l5p engine (2017-2023) and check the engine code plate on the valve cover or the data plate in the door jamb. If any point does not match, send us the details on WhatsApp and we will confirm before the order is placed.
What is included with the sj-egr-13m-l5p-egr-cooler?
The product covers the EGR valve cooler kit as photographed. Accessories shown in the images are part of the set as supplied; anything not shown is not included, and we confirm the contents with you on WhatsApp before dispatch.
What is the packaged shipping weight of the sj-egr-13m-l5p-egr-cooler?
The packaged shipping weight and carton size are not published by the manufacturer, so they are marked Not published in the specification table. We confirm the actual carton details on the quotation rather than estimating them.
How is the sj-egr-13m-l5p-egr-cooler shipped and supported?
Units ship in export cartons suitable for mixed container loads, and technical support is available through the Vidishi Auto sales team on WhatsApp. Ask for the packing details with your quote so the freight can be costed accurately.
Warranty & support
Warranty is listed as 1 year by the published data. Contact Vidishi Auto on WhatsApp with the SKU and your truck’s model year and VIN prefix before ordering.
Get a quote
Ready to order SJ-EGR-13M EGR Valve Cooler Delete Kit for Chevy GMC Duramax L5P (sj-egr-13m-l5p-egr-cooler)? Send the SKU and your quantity to our team.
