VDS-BTPNE-AIR-BLEEDER Pneumatic Air Brake Bleeder for PB-10
VDS-BTPNE-AIR-BLEEDER pneumatic brake bleeder for Truck and commercial vehicle. Model PB-10, 12 Months warranty, MOQ 1 piece. Supplied under the Vidishi Auto brand.
Original price was: $45.50.$43.50Current price is: $43.50.
100% Secure Checkout
Free Shipping Over $1099
Customer Satisfaction
International Shipping
Product Specifications
Product Details
At a glance
What this pneumatic brake bleeder is

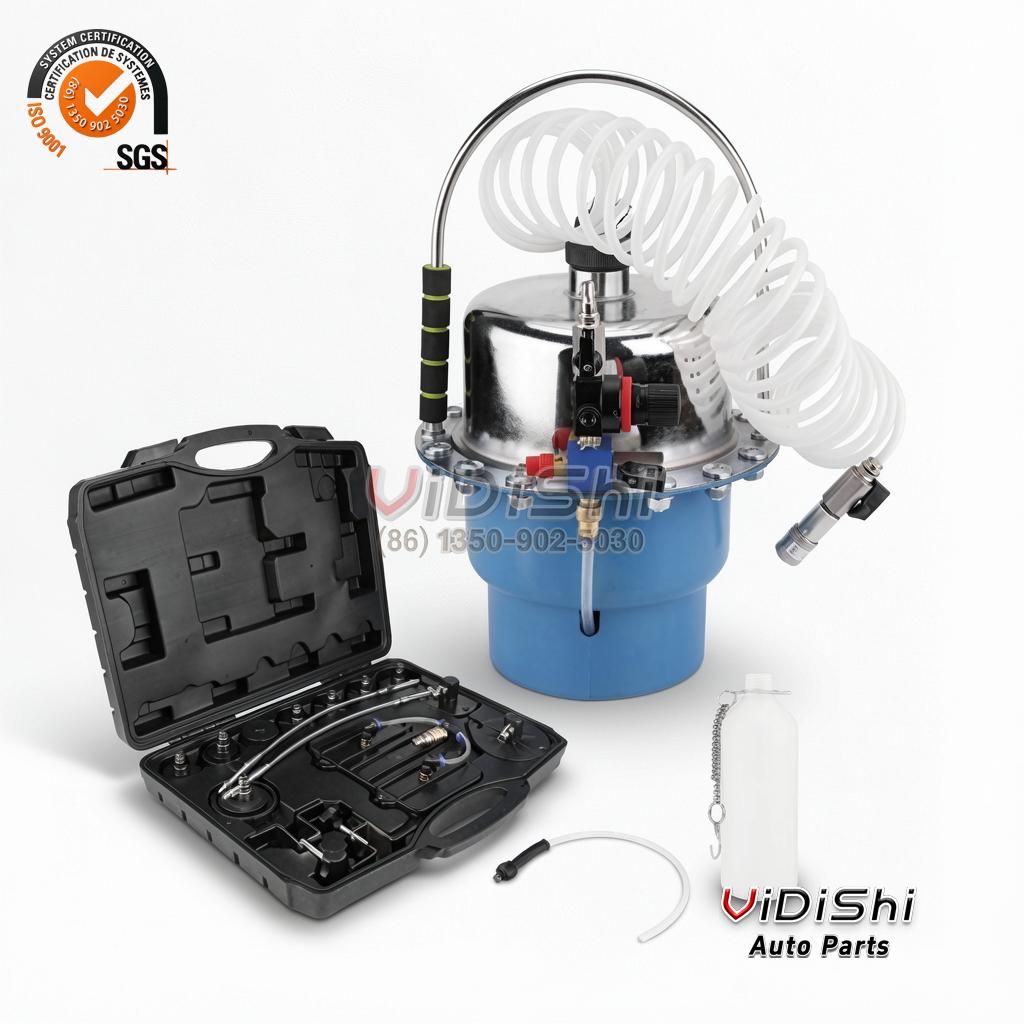

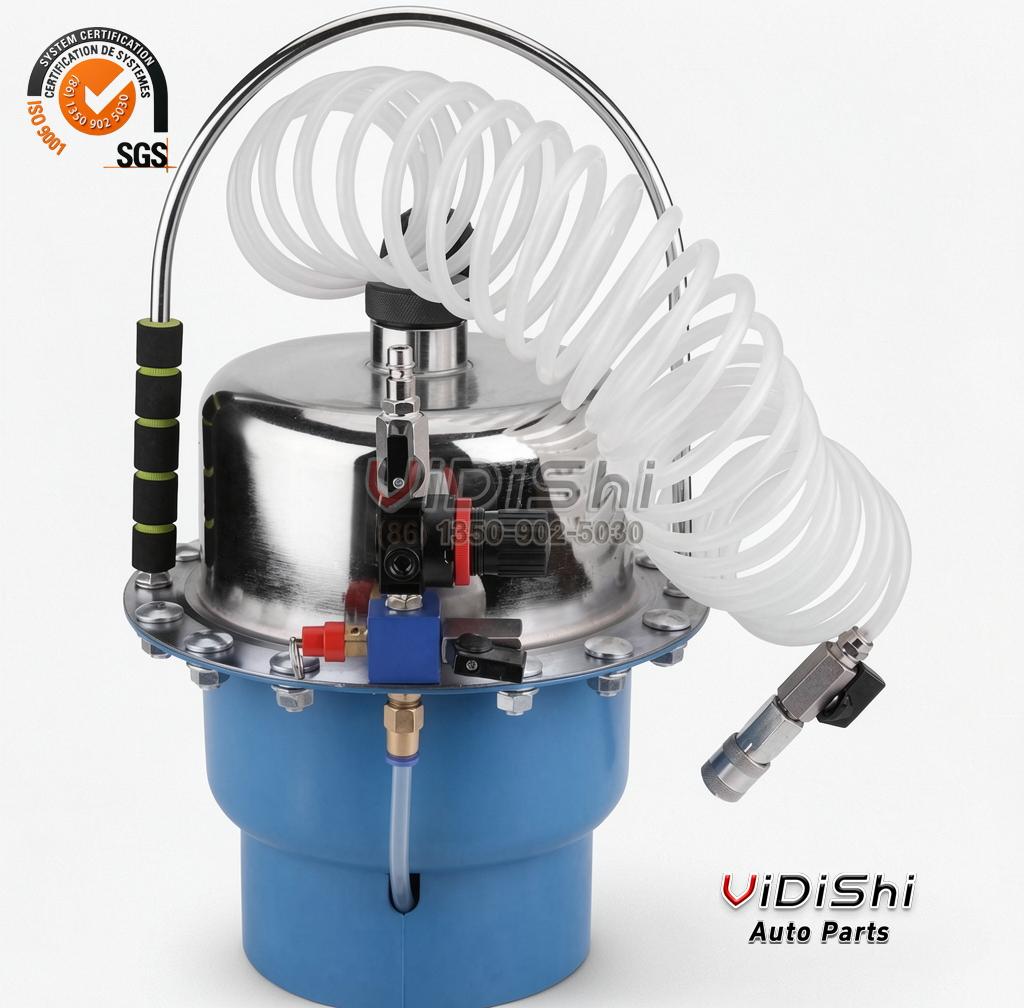

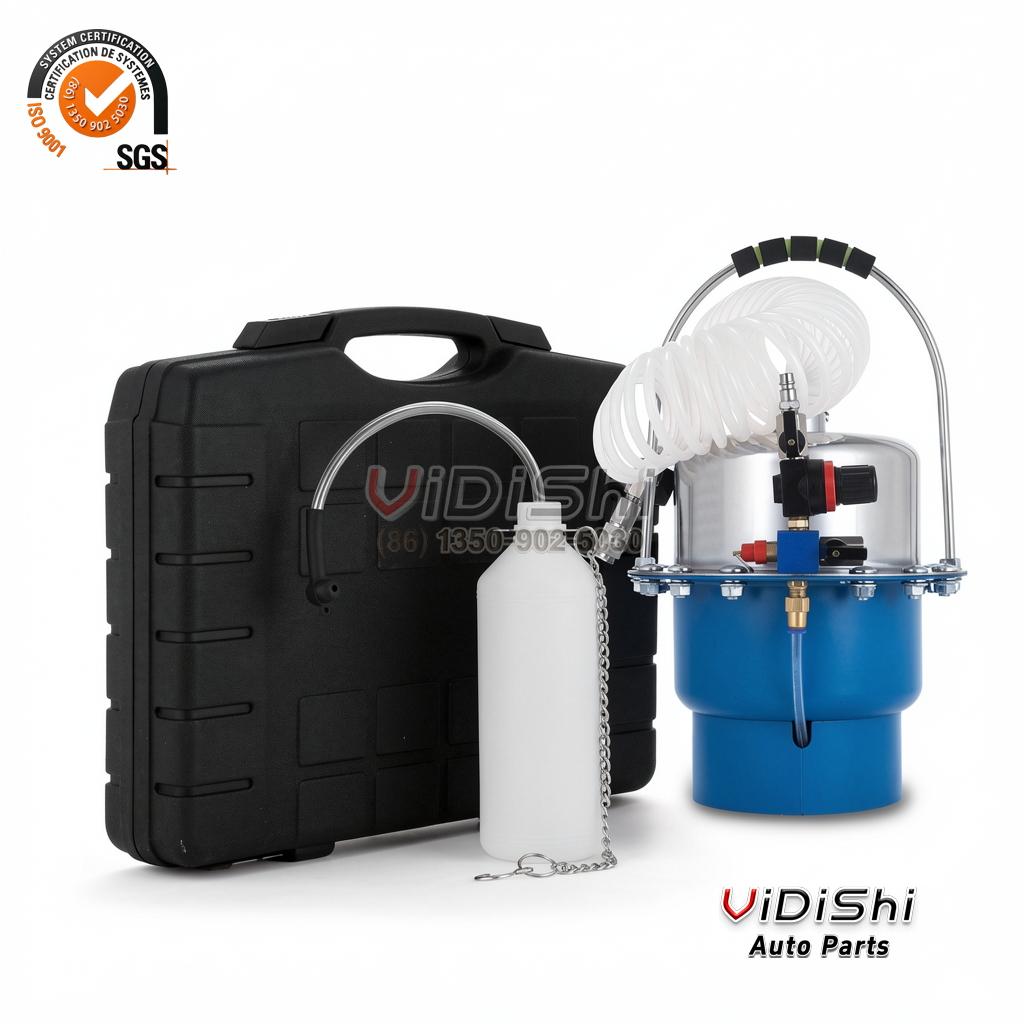

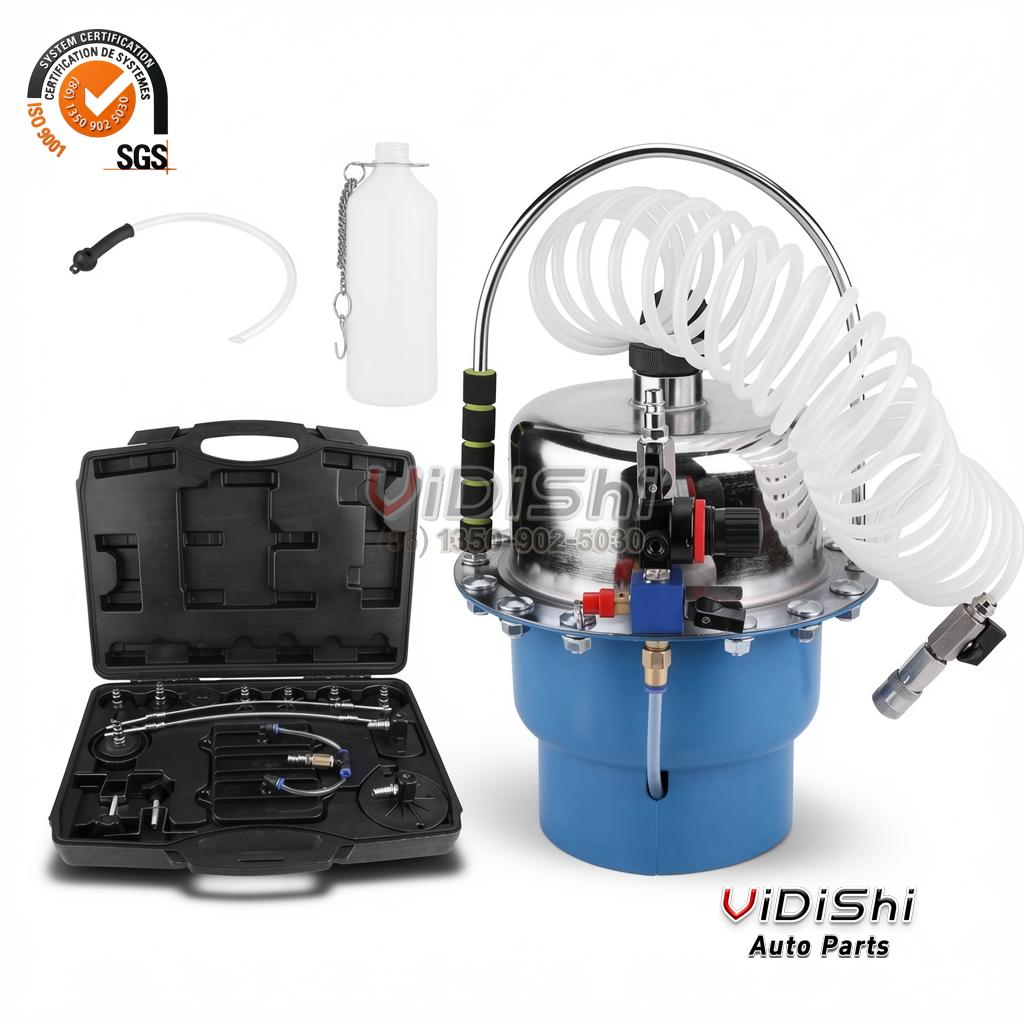

A pneumatic air-brake fluid bleeder and pressure oil-change tool with a clear collection bowl, pressure gauge, air regulator and a wheel cylinder adapter.
Part number match
The order reference for this item is VDS-BTPNE-AIR-BLEEDER, built to model PB-10.
Quote that model number on the order and the packing list so the correct
variant reaches the workshop.
Fitment verification
For air-brake trucks, buses and trailers. Match the adapter to the wheel cylinder size and follow the vehicle bleed sequence before opening a wheel valve.
Read the model plate or the part number stamped on the unit
being replaced before ordering.
Specifications
| Bowl capacity | 10 L clear collection bowl |
|---|---|
| Air supply | Shop compressed air via regulator |

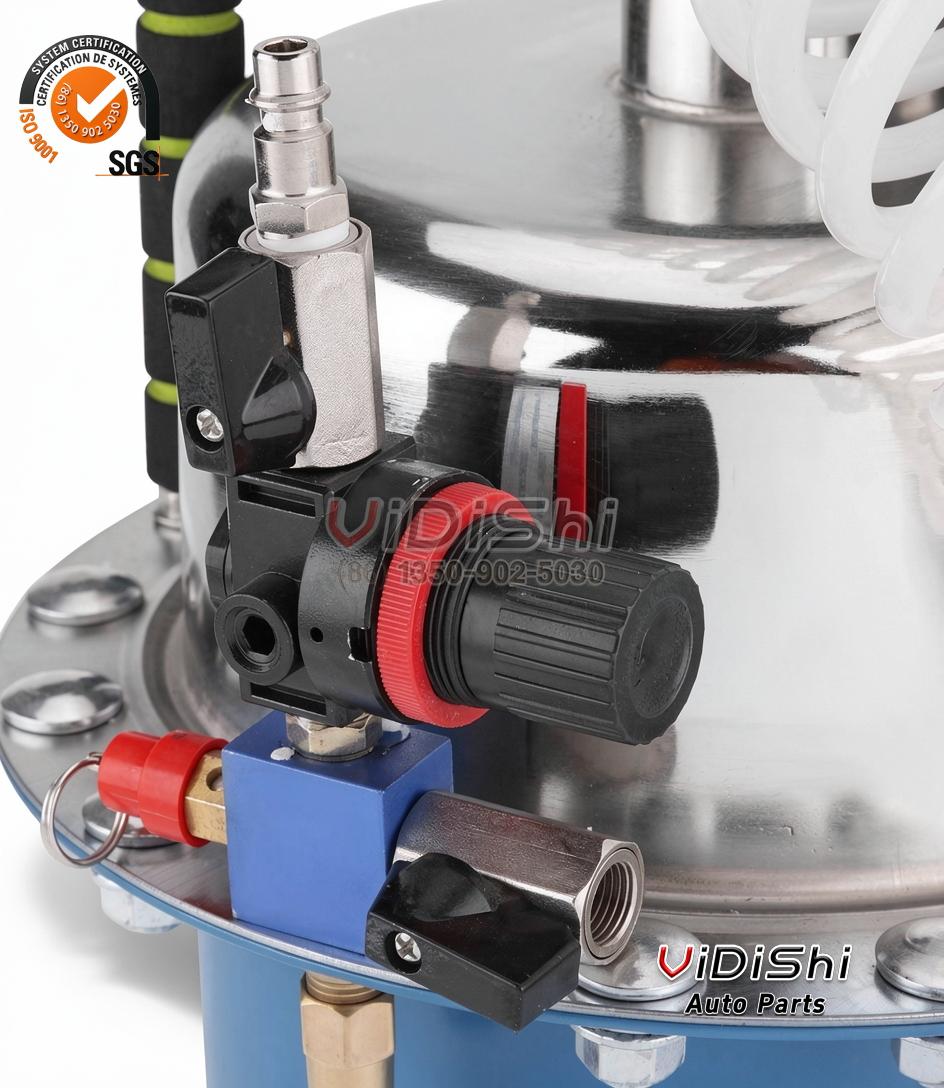

| Gauge | Pressure gauge on the inlet |
| Adapters | 45 mm and 28 mm wheel cylinder |
| Case | Blow-moulded case with hose and adapters |
| Use | Air brake system bleeding and oil changes |
| Model number | PB-10 |
| Product type | Pneumatic Brake Bleeder |
| Supplied brand | Vidishi Auto |
| Application | Truck and commercial vehicle |
| Material | Steel tank, brass fittings |
| Condition | New |
| Warranty | 12 Months |
| Minimum order | 1 piece |
| Quality system | ISO 9001 |
Specification rows describe the item supplied under the Vidishi Auto brand.
Fitment-relevant values must be confirmed against the unit being replaced.
What the workshop gets
Bowl capacity
10 L clear collection bowl
Specification row 1 of 6.
Air supply
Shop compressed air via regulator
Specification row 2 of 6.
Gauge
Pressure gauge on the inlet
Specification row 3 of 6.
Adapters
45 mm and 28 mm wheel cylinder
Specification row 4 of 6.
How it is used in the workshop
- Lift the vehicle on stands, release the parking brake and chock the rear wheels.
- Top the master cylinder reservoir up to the maximum mark before connecting the tool.
- Fit the adapter that matches the wheel brake pipe nut, then open the bleeder screw a quarter turn.
- Work from the wheel furthest from the master cylinder towards the nearest.
- Close each valve as soon as the fluid runs clear and bubble-free, then refill the reservoir.
the vehicle service procedure. Torque figures, pressures and safety limits come from the
equipment documentation, not from this page.
Documented limits and common mistakes
Match the adapter to the wheel cylinder size before bleeding.
Follow the vehicle bleed sequence; opening a wheel valve before the circuit is ready returns air to the line.
Connect to shop air through the regulator, not directly from an unregulated supply.
This page lists what the documentation states; it does not extend any rating beyond it.
First-use checks
Commissioning sequence
- Unpack and check the item against the specification table on this page before first use.
- Confirm the model number PB-10 on the packing list matches the item received.
- Check the 6 specification rows that apply to your application before operating it.
- Record the installation date so the inspection interval can be planned.
Before it goes into service
Prime the tool with fresh fluid and pump it through before it touches a vehicle, so air in the tool does not become air in the customer’s brake line. This unit holds 10 L clear collection bowl.
With the tool pressurised, work the fluid until it runs clear at every caliper, then depressurise the reservoir before removing the adapter from the master cylinder.
Warranty cover runs for 12 Months from delivery on the supplied item.
Where this pneumatic brake bleeder is used
For air-brake trucks, buses and trailers. Match the adapter to the wheel cylinder size and follow the vehicle bleed sequence before opening a wheel valve.
- Air brake trucks
- Air brake buses
- Trailer and semi-trailer
- Heavy vehicle workshop
Fitment verification: For air-brake trucks, buses and trailers. Match the adapter to the wheel cylinder size and follow the vehicle bleed sequence before opening a wheel valve.
The application list is a guide. Confirm the model number on the
unit and the part number being replaced before ordering.
Quality and inspection
ISO 9001
Quality system coverage for export and distribution, applied to this batch.
New condition
Supplied new, with 12 Months warranty on the delivered item. The pneumatic brake bleeder is built to model PB-10 and packed against that model number.
Specification count
6 specification rows are published on this page for the pneumatic brake bleeder, from bowl capacity to use.
Anything the documentation does not state is not claimed for this item.
Wholesale and B2B supply
Pneumatic air-brake bleeders and pressure oil-change tools with gauge and adapters for truck and trailer service bays.
- Minimum order: 1 piece
- Container and consolidated shipment quotes
- Neutral or Vidishi Auto branding options
- Model-number matched picking and packing lists
Request a quote
Send the model number, quantity and destination for a delivered total.
Pricing is quoted per order. This page carries no public price.
Choosing between options
| Pressure bleeder | pushes fluid through the circuit, so a firm pedal is reached in fewer cycles |
|---|---|
| Vacuum bleeder | draws fluid out, cheaper but needs a sealed reservoir and a strong vacuum |
| Two-person pedal method | no kit cost, but needs a second pair of hands on every wheel |
This comparison describes product categories, not brands. It is a
selection aid, not a performance claim.
Image set
6 images are published for this item, distributed across the modules
above. Every frame is photographed from this product.
Frequently asked questions
Is the PB-10 a genuine original equipment product?
No. It is supplied under the Vidishi Auto brand as a workshop tool built to the published specification on this page. Where a reference part number appears, it identifies the equipment being replaced, not an original-equipment product.
What does model PB-10 cover?
A pneumatic air-brake fluid bleeder and pressure oil-change tool with a clear collection bowl, pressure gauge, air regulator and a wheel cylinder adapter. The published specification rows cover Steel tank, brass fittings, and the stated warranty is 12 Months.
How do I confirm this fits before ordering?
Read the model number or the part number stamped on the unit being replaced and compare it with the reference numbers on this page. For air-brake trucks, buses and trailers. Match the adapter to the wheel cylinder size and follow the vehicle bleed sequence before opening a wheel valve.
Do you supply this in wholesale quantities?
Yes. The minimum order is 1 piece, and container and consolidated shipment quotes are available on request.
What warranty applies?
The supplied item carries a 12 Months warranty. Warranty terms are published on the site warranty page.
Which images on this page are of this product?
All of them. The 6 published frames were photographed from this item, and the image list is published with the packing documentation.
Is a public price shown here?
No. Pricing is quoted per order against model number, quantity and destination. Send those three details and a delivered total comes back.
Quote the VDS-BTPNE-AIR-BLEEDER pneumatic brake bleeder
Model PB-10, MOQ 1 piece, 12 Months warranty.
Wholesale, container and consolidated pricing on request.
How data on this page is labelled
Published
Values in the specification table are stated for this item and apply to the
batch supplied under the Vidishi Auto brand.
Confirm before order
Fitment, duty and pressure values must be confirmed against the equipment the
item will work on. Model numbers and stamped part numbers are the deciding
reference.
Not published
Packaged shipping weight and carton dimensions are not published for this item.
Request them with the order and they are supplied with the quotation.
Service and ordering information
Where to go next
Order checklist
- Model number: PB-10
- Reference part number: VDS-BTPNE-AIR-BLEEDER
- Minimum order: 1 piece
- Warranty: 12 Months
- Brand: Vidishi Auto
Category
This item sits in the site’s Tools Accessories category, alongside the rest of the
workshop tool range.
Category: Tools Accessories. Model: PB-10.
Support
Need this tool for a specific machine or vehicle? Send the model number or the
part number stamped on the unit you are replacing, and we return the matched item
with a delivered quotation.
Fitment is confirmed by model number and stamped part number.
Application lists are a guide, not a guarantee of fit.
