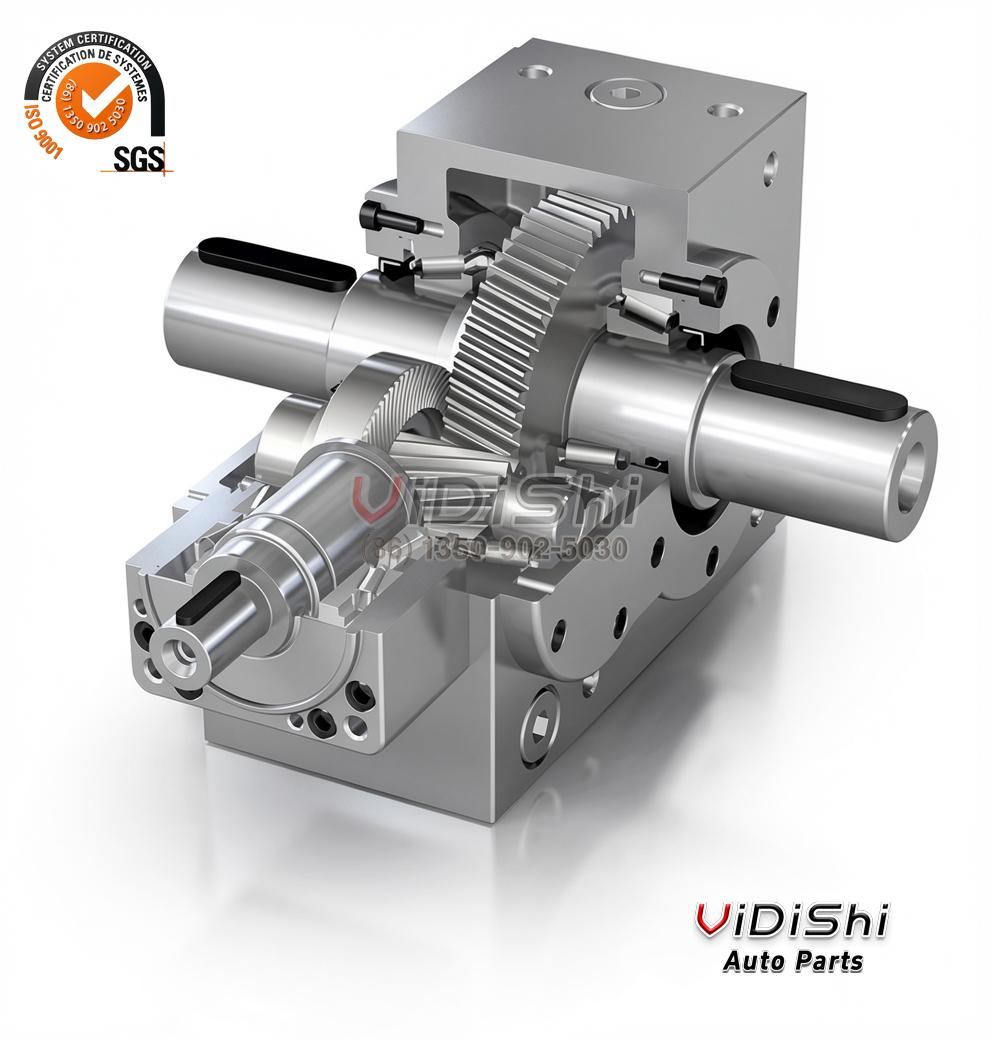

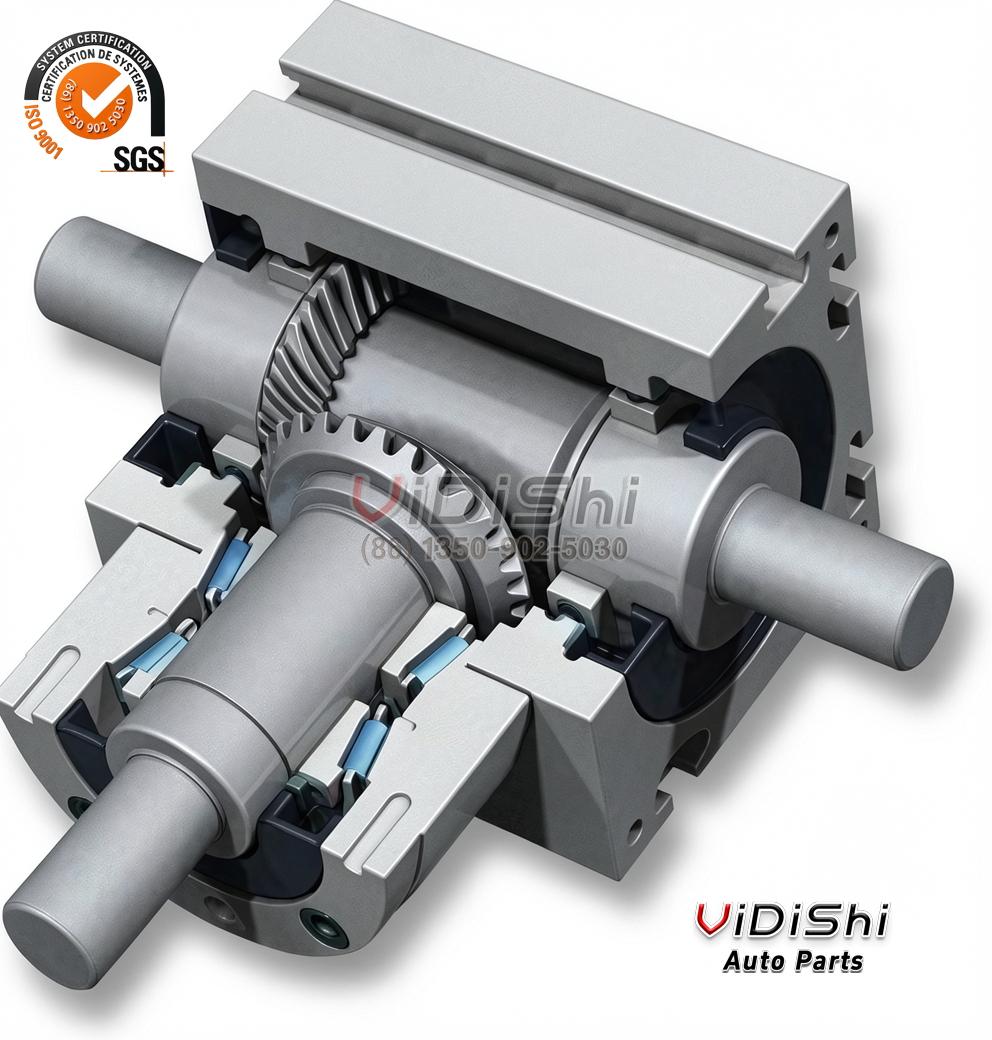

WhachineBrothers 90 Degree Bevel Gear Reduce Drive Gearbox
90 degree bevel gear reduction drive gearbox, 15 kg net weight, supplied to ISO 9001 and TS 16949 documented processes.
$100.00
100% Secure Checkout
Free Shipping Over $1099
Customer Satisfaction
International Shipping
Product Specifications
Product Details
Technical specifications
| Product name | Gearbox |
|---|---|
| Gear type | Bevel reduction drive |
| Drive angle | 90 degree |
| Input speed | Not published |
| Output speed | Not published |
| Output torque | Not published |
| Gear ratio | Not published |
| Backlash | Not published |
| Accuracy grade | Not published |
| Net weight | 15 kg |
| Warranty | Not published |
| Packaged shipping weight | Not published by the manufacturer |
| Packaged shipping size (L x W x H) | Not published by the manufacturer |
| Supplied brand | Vidishi Auto |
| Reference design | WhachineBrothers (reference only) |
| Origin status | Not a genuine WhachineBrothers product – aftermarket compatibility part |
What this bevel gear reduction drive does
A bevel reduction drive takes power from one shaft and delivers it through a second shaft set at 90 degrees, with the gear set sized to reduce speed and raise torque. This unit is offered for custom machinery builds, with the ratio, mounting and shaft form taken from the drawing rather than from a fixed catalogue number.
Supplied under the Vidishi Auto brand as a compatible replacement referencing WhachineBrothers, this unit is aimed at distributors, workshops and fleet buyers who need a repeatable, documented part.
Why choose this unit
- 90 degree layout removes the need for a second transfer stage on a machine
- Built under ISO 9001:2008 and TS 16949 documented processes
- OEM and ODM orders accepted, so the shaft form follows the drawing
- 15 kg housing gives a rigid base for continuous duty drives
- Ratio and mounting fixed at order time to suit the machine layout
Compatibility & fitment
Because this gearbox is built to project drawings, fitment is defined by the ratio, the shaft form and the mounting face agreed at order time rather than by a vehicle or machine model. Buyers should supply the input speed, the required output speed and the torque figure so the gear set can be sized correctly.
This is a drawing-driven unit. Confirm the ratio, the shaft ends and the mounting face on your drawing before ordering, because the catalogue entry does not fix these values.
How it works
Bevel gears meet at an angle, so the tooth contact has to be set during assembly to spread the load across the tooth face. The reduction comes from the tooth count difference between the input pinion and the output wheel, which is why the ratio has to be specified before the set is cut.
Installation steps
- Confirm the ratio and shaft form against the approved drawing before mounting.
- Bolt the housing to a flat machined face and torque the bolts evenly.
- Fill with the oil grade agreed for the duty cycle before the first run.
- Run the drive unloaded, then check the tooth contact and the housing temperature.
Safety & certifications
Rotating shaft guards must be fitted before the drive is put into service. The source lists ISO 9001:2008 and TS 16949 documented processes, which cover how the unit is made and inspected, but they do not replace the machine builder’s own safety assessment.
- ISO 9001:2008 certified
- TS 16949 certified
Typical use cases
- Custom machinery right-angle drive
- Conveyor or packaging machine drive head
- Agricultural implement drive built to drawing
- Test rig and prototype machine builds
Wholesale & B2B supply
We supply WhachineBrothers 90 Degree Bevel Gear Reduce Drive Gearbox in wholesale quantities (MOQ 100 pieces) for distributors, workshops and fleet operators. WhachineBrothers, Vidishi Auto units ship in export cartons and can be OEM/ODM labelled.
Request tiered pricing for container or pallet orders, and share your target volume so we can quote MOQ-based pricing.
How it compares
Against an off-the-shelf inline reducer, a 90 degree bevel unit solves the layout problem of driving a shaft at right angles without a second transfer stage. The cost is that the ratio and shaft form have to be fixed at order time rather than changed later.
Troubleshooting
- Abnormal noise – the tooth contact pattern was not set during assembly
- Oil leak at the shaft seal – check the seal lip and the oil level
- Housing running hot – confirm the load is within the agreed duty cycle
Maintenance
- Check the oil level and the housing temperature at the start of each shift.
- Inspect the shaft seals for weeping during routine machine servicing.
- Keep the mounting bolts at the torque figure given in the drawing.
Frequently asked questions
Is this a genuine WhachineBrothers product?
No. It is supplied under the Vidishi Auto brand as a compatible replacement referencing WhachineBrothers. We do not claim to be an authorized WhachineBrothers dealer.
What exactly is the whachinebrothers-90deg-bevel-gearbox-15kg?
It is a bevel gear reduction drive. The listed specification covers product name Gearbox, gear type Bevel reduction drive, drive angle 90 degree. Values the source did not publish are marked Not published in the specification table rather than estimated.
Can I order the whachinebrothers-90deg-bevel-gearbox-15kg wholesale?
Yes. The minimum order quantity is 100 pieces. Contact us on WhatsApp with the SKU and your quantity for tiered pricing on container or pallet orders.
What warranty comes with the whachinebrothers-90deg-bevel-gearbox-15kg?
The warranty is not published by the manufacturer, so it is marked Not published here. Confirm the terms with our sales team before ordering.
How do I confirm the whachinebrothers-90deg-bevel-gearbox-15kg fits my application?
Confirm the ratio, shaft ends and mounting face from your drawing, since this unit is built to order and the catalogue values are not fixed. If any point does not match, send us the details on WhatsApp and we will confirm before the order is placed.
What is included with the whachinebrothers-90deg-bevel-gearbox-15kg?
The product covers the bevel gear reduction drive as photographed. Accessories shown in the images are part of the set as supplied; anything not shown is not included, and we confirm the contents with you on WhatsApp before dispatch.
What is the packaged shipping weight of the whachinebrothers-90deg-bevel-gearbox-15kg?
The packaged shipping weight and carton size are not published by the manufacturer, so they are marked Not published in the specification table. We confirm the actual carton details on the quotation rather than estimating them.
How is the whachinebrothers-90deg-bevel-gearbox-15kg shipped and supported?
Units ship in export cartons suitable for mixed container loads, and technical support is available through the Vidishi Auto sales team on WhatsApp. Ask for the packing details with your quote so the freight can be costed accurately.
Warranty & support
Warranty is not published by the manufacturer; confirm the terms with sales before ordering. Contact Vidishi Auto on WhatsApp with your drawing and duty cycle for a quotation.
Get a quote
Ready to order WhachineBrothers 90 Degree Bevel Gear Reduce Drive Gearbox (whachinebrothers-90deg-bevel-gearbox-15kg)? Send the SKU and your quantity to our team.
